Gooseneck Toggles


Gooseneck Toggles
Gooseneck Toggles are used to allow universal movement of the Boom both horizontally and vertically, and always have attachment holes at 90 degrees to each other. Some Gooseneck Toggles incorporate provisions for attachment of the mainsail Tack, and some include Reef Hooks.

Gooseneck Toggles are listed here by the size of the Vertical Pin with which they attach to the Mast Bracket or Gooseneck Slide, and then by the height of the Toggle. Plain Toggles are listed first, Toggle Assemblies with Tack Attachments and/or Reef Hooks are listed after them.
Gooseneck Toggles are also listed separately, under Specific Mast and Boom Sections by individual manufacturers, See: Spar Parts by Spar Manufacturer.

Rig-Rite stocks a large variety of Gooseneck Toggles originally produced by many different Spar Builders.
As always, there have been many 'specials' produced over the years, if a Gooseneck Toggle you need is not listed here, Custom Gooseneck Toggles are available in any configuration - please forward a sketch with complete dimensions. Please note that if a Toggle listed here meets your principal dimensions of height & width, it is frequently possible to modify the hole size by either drilling it out to a larger size, or bushing it down to a smaller one.

Other Gooseneck Toggles and Gooseneck Toggle arrangements, specific to European Spar Builders, are also available.
Isomat Spars use a variety of specialized Toggle components and Metric Pins, See Isomat Booms.
Sparcraft uses a variety of specialized Toggle components and Metric Pins, See Sparcraft Booms.
Z-Spar uses Cast aluminum Gooseneck Toggles and Metric Pins, See Z-Spar Gooseneck Toggles.


For Gooseneck Slides compatible with the Toggles listed here (and others), See Gooseneck Slides. For Tack Brackets with or without Vertical Bolts, See Tack Attachments.
For Reef Hooks with or without Vertical Bolts and/or Tack Attachments, See Reef Hooks.

For Gooseneck Mast Brackets compatible with the Toggles listed here, See Gooseneck Brackets.

or Specific Mast Sections (by manufacturer).


Gooseneck Toggles for a 1/4" Vertical Pin
Gooseneck Toggles for a 5/16" Vertical Pin
Gooseneck Toggles for a 3/8" Vertical Pin
Gooseneck Toggles for a 1/2" Vertical Pin
Gooseneck Toggles for a 5/8" Vertical Pin
Gooseneck Toggles for a 3/4" Vertical Pin
Gooseneck Toggles for a 7/8" Vertical Pin



Gooseneck Toggles for a 1/4" Vertical Pin
SS Gooseneck Toggle - 3/4" High: Sch 45-S0404:

Stainless Steel Gooseneck Toggle is 3/4" high and accommodates 1/4" vertical and horizontal pins. Welded SS Toggle is 3/4" high x 5/8" wide x 1 3/8" (maximum) long, pin holes are on 3/4" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 3/4" Toggle with a 1/4" vertical pin, but is normally used with SS Gooseneck Slide with Spring Pin for 1" x 1/8" Flat Track, PP M10SA. As used by Pearson especially on Mizzen masts.



Sch-45-S0404





Standard SS Gooseneck Toggle - 3/4" High: K-9267:

SS Gooseneck Toggle attaches directly to any of the Kenyon gooseneck brackets or gooseneck slides designed for a 3/4" Toggle, and to any boom end casting using the Kenyon K-79 or K-80 SS yoke assemblies. Toggle is 3/4" square x 7/8" long with holes for 1/4" vertical and horizontal pins on 3/8" centers.



K-9267
Heavy-duty SS Gooseneck Toggle - 3/4" High HD: K-9267H:
SS Gooseneck Toggle attaches directly to any of the Kenyon gooseneck brackets or gooseneck slides designed for a 3/4" Toggle, and to any boom end casting using the Kenyon K-79 or K-80 SS yoke assemblies. Heavy-duty tubular Toggle is 3/4" square x 1" long with holes for 1/4" vertical and horizontal pins on 3/8" centers.



HD SS Gooseneck Toggle - 3/4" High, Long: K-9267HL:

SS Gooseneck Toggle attaches directly to any of the Kenyon gooseneck brackets or gooseneck slides designed for a 3/4" Toggle, and to any boom end casting using the Kenyon K-79 or K-80 SS yoke assemblies. Heavy-duty tubular Toggle is 3/4" square x 1 1/8" long with holes for 1/4" vertical and horizontal pins on 5/8" centers.



SS Gooseneck Toggle - 3/4" High: RR 45-44-77:

SS Gooseneck Toggle is 3/4" square x 1 3/4" long with holes for 1/4" vertical and horizontal pins on 1" centers. As used in many Rig-Rite and other Spars, and with Spartan CD-3.5 Gooseneck Bracket, SP-454.  SP-454-1



SS Gooseneck Toggle - 3/4" High: SP-454-1S:

Special SS Gooseneck Toggle is 3/4" square x 1 3/4" long with holes for 1/4" vertical and 5/16" horizontal pins on 1" centers. As used with Spartan CD-3.5 Gooseneck Bracket, SP-454.




SS Gooseneck Toggle - 7/8" High: RR 45-44-87:

SS Gooseneck Toggle is 7/8" high x 3/4" wide x 1 3/4" long with holes for 1/4" vertical and horizontal pins on 3/8" centers. As used on many SailStar and other boats.



Short Extruded Gooseneck Toggle - 7/8" High: PP B4X:

Old-style, short Extruded Gooseneck Toggle for use with aluminum Roller Reefing Gooseneck Shaft, or boom ends with integral nose. Aluminum Gooseneck Toggle is 7/8" high x 3/4" wide with (2) holes for 1/4" vertical and horizontal pins, horizontal pin is included. Aft end has 1/2" wide cutout for PP B2 Gooseneck Shaft or boom ends with integral nose. As used on Bristol, early Pearson and other East-coast boats. Short Toggle fits old-style Gooseneck Slides with 1" cutout.



PP-B4X




Stainless Steel Gooseneck Toggle - 1" High: K-1993:

SS Gooseneck Toggle attaches directly to any of the Kenyon gooseneck brackets or gooseneck slides designed for a 1" Toggle, and to any boom end casting using the Kenyon K-80 SS yoke assembly. Toggle is 1" square x 1 1/8" long with holes for 1/4" vertical and horizontal pins on 1/2" centers.



K-1993

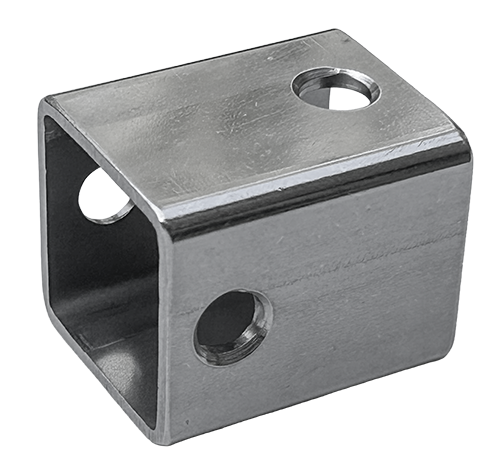

Heavy-duty SS Gooseneck Toggle - 1" High: K-1993H:

SS Gooseneck Toggle attaches directly to any of the Kenyon gooseneck brackets or gooseneck slides designed for a 1" Toggle, and to any boom end casting using the Kenyon K-80 SS yoke assembly. Heavy-duty tubular Toggle is 1" square x 1 1/8" long with holes for 1/4" vertical and horizontal pins on 1/2" centers.



Aluminum Gooseneck Toggle - 1" High: K-1993AR:

Aluminum Gooseneck Toggle attaches directly to gooseneck brackets or gooseneck slides designed for a 1" Toggle, and to any boom end casting using a 1" SS yoke assembly. Cylindrical Aluminum Toggle is 1" diameter x 1 3/8" long with holes for 1/4" vertical and horizontal pins on 11/16" centers. As used on Lightning, Mutineer 15, Buccaneer 18, and others.








Extruded Gooseneck Toggle - 1 1/2" High: PP B4:

Extruded Gooseneck Toggle for use with aluminum Roller Reefing Gooseneck Shaft, or boom ends with integral nose. Aluminum Gooseneck Toggle is 1 1/2" high x 3/4" wide with (2) holes for 1/4" vertical and horizontal pins, horizontal pin is included. Aft end has 1/2" wide cutout for PP B2 Gooseneck Shaft or boom ends with integral nose. Toggle is suitable for use with any Gooseneck Slide (PP M5A or PP M6A),or bracket designed for a 1 1/2" Toggle and a 1/4" vertical Pin. As used on Bristol, early Pearson and other East-coast boats.



PP-B4



Aluminum Gooseneck Toggle - 1 1/2" High: PP B4C:

Solid cast Aluminum Gooseneck Toggle is 1 1/2" high and accommodates 1/4" vertical and horizontal pins. Toggle is 1 1/2" high x 3/4" wide x 1 3/8" (maximum) long, pin holes are on 13/16" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 1/4" vertical pin, and Boom ends using the standard Kenyon K-80 (or similar) SS yoke assembly. Special, developed for use on some Pearson & Bristol Yachts Booms. RR-45A-44-157



SS Gooseneck Toggle - 1 1/2" High: K-10518C:

Cast SS Gooseneck Toggle is 1 1/2" high and accommodates 1/4" vertical and 3/8" horizontal pins. SS Toggle is 1 1/2" high x 1/2" wide x 2 1/4" (maximum) long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 1/4" vertical pin.

Aluminum Gooseneck Toggle - 1 1/2" High: RR 45A-45-1511:
Solid machined Aluminum Gooseneck Toggle is 1 1/2" high and accommodates 1/4" vertical and 5/16" horizontal pins. Anodized Toggle is 1 1/2" high x 11/16" wide x 1 7/8" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 1/4" vertical pin.




Aluminum Gooseneck Toggle - 1 5/8" High: RR 45A-45-1611:
Solid machined Aluminum Gooseneck Toggle is 1 5/8" high and accommodates 1/4" vertical and 5/16" horizontal pins. Anodized Toggle is 1 5/8" high x 11/16" wide x 1 7/8" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 1/4" vertical pin.




Gooseneck Toggles w/ Tack attachment for 1/4" Vertical Pin
Gooseneck Toggle, Tack & Yoke Ass'y: K-10604:
SS Gooseneck Toggle/Tack & Yoke assembly on 1/2" shaft fits goosenecks with a 1/2" horizontal hole. SS 2 1/2" long shaft comes with SS and nylon washers and cotter pin. Two-position Tack for optimal adjustment with included quick pin. Toggle portion is 1" high and attaches to any of the Kenyon gooseneck brackets designed for a 1" Toggle, and most gooseneck slides designed for a 1" Toggle, with a 1/4" pin. As used on Etchells 22.



K-10604




Gooseneck Toggle/Tack w/ Reef Hooks: K-10518A:

Used with a variety of SS Gooseneck Brackets and Kenyon 2333 or D-section Internal Goosenecks, this combination Toggle/Tack/Reef Hook Assembly features 3 tack positions and includes 3/8" tack fastpin, K-10557. Takes 1/4" vertical pin and 3/8" horizontal pin. Two 1/4" reef hooks allow for ease of reefing from either side of the boom. Toggle portion is 1 1/2" high x 11/16" wide with 1" between pin centers. Unit (excluding Reef Hooks) is 4" high x 11/16" wide x 2 1/4" long.



K-10518A
Tack Fastpin for 1 1/2" Toggle: K-10557:

SS Fastpin is 3/8" diameter x 1" long. Used in all K-10345 1 1/2" Toggle/Tack/Reef Hook Assemblies.



  Gooseneck Pin for 1 1/2" Toggle & SS Bracket: CP4-61K:
Clevis pin is 1/4" diameter x 1 7/8" long. Used to attach the K-10518 1 1/2" Gooseneck Toggles to a variety of SS Gooseneck Brackets.



  Vertical Gooseneck Pin for 1 1/2" Toggle & Aluminum Bracket: CP4-76K:
Vertical Pin for Aluminum Weld-on Gooseneck Bracket. Clevis pin is 1/4" diameter x 2 3/8" long, for use with New-Style K-43024AP Aluminum weld-on Gooseneck Bracket and K-10518 1 1/2" Gooseneck Toggles. As used on newer J/24's.



Gooseneck Toggle/Tack Assembly: K-10518N:

As K-10518A, above, but without reef hooks. This combination Toggle and Tack Assembly features 3 tack positions and includes 3/8" tack fastpin, K-10557. Takes 1/4" vertical pin and 3/8" horizontal pin. Toggle portion is 1 1/2" high x 11/16" wide with 1" between pin centers. Unit is (maximum) 4" high x 11/16" wide x 2 1/4" long. As used on the Freedom 21.  K-10985



K-10518N
Long Gooseneck Toggle/Tack Assembly: K-10518E:

As K-10518N, above, but modified to increase the Tack Setback by 1". Used with the Kenyon 2333 and D-section Internal Goosenecks, this combination Toggle/Tack Assembly features 3 tack positions and includes 3/8" tack fastpin, K-10557. Takes 1/4" vertical pin and 3/8" horizontal pin. Toggle portion is 1 1/2" high x 11/16" wide with 2" between pin centers. Unit is (maximum) 4" high x 11/16" wide x 2 7/8" long. Toggle fits all Kenyon Mast Brackets and a variety of Gooseneck Slides designed for a 1 1/2" Toggle with a 1/4" vertical pin. Specially for use with Gooseneck Slide for 3/4" Internal Flat Track, PP M6A, and as used on the Freedom 25.



K-10518E

Gooseneck Toggles for a 5/16" Vertical Pin
SS Gooseneck Toggle - 3/4" High: RR 45-55-77:

Tubular SS 3/4" square Gooseneck Toggle is 3/4" high and accommodates 5/16" vertical and horizontal pins. SS Toggle is 3/4" high x 3/4" wide x 1 3/4" long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets designed for a 3/4" Toggle with a 5/16" vertical pin. Used with the SP-454 cast Gooseneck Bracket.




SS Gooseneck Toggle - 1 1/2" High: K-10518C-5:

Solid cast SS Gooseneck Toggle is 1 1/2" high and accommodates 5/16" vertical and 3/8" horizontal pins. SS Toggle is 1 1/2" high x 1/2" wide x 2 1/4" (maximum) long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 5/16" vertical pin.



Aluminum Gooseneck Toggle - 1 1/2" High: RR 45A-55-1511:
Solid machined Aluminum Gooseneck Toggle is 1 1/2" high and accommodates 5/16" vertical and horizontal pins. Anodized Toggle is 1 1/2" high x 11/16" wide x 1 7/8" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 5/16" vertical pin. m




Aluminum Gooseneck Toggle - 1 5/8" High: RR 45A-55-1611:
Solid machined Aluminum Gooseneck Toggle is 1 5/8" high and accommodates 5/16" vertical and horizontal pins. Anodized Toggle is 1 5/8" high x 11/16" wide x 1 7/8" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 5/8" Toggle with a 5/16" vertical pin. m



Chrome Bronze Gooseneck Toggle - 2 3/8" High: NF 10541-55:
Cast Bronze Gooseneck Toggle is 2 3/8" high and accommodates 5/16" vertical and horizontal pins. Chrome plated Toggle is 2 3/8" high x 1 3/8" wide (outside) x 2 1/8" (maximum) long, pin holes are on 1 1/4" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 3/8" Toggle with a 5/16" vertical pin. Used with Nicro-Fico standard and Roller-Reefing Boom Goosenecks with a 5/16" Horizontal Pin. NM-327




Gooseneck Toggles for a 3/8" Vertical Pin
J/22 Gooseneck Toggle - 1" High: HS PR-7623:

Solid cast Aluminum Gooseneck Toggle is 1" high and accommodates 3/8" vertical and 5/16" horizontal pins. Anodized Toggle is 1" high x 3/4" wide (7/16" wide @ Horizontal pin hole) x 1 5/8" long, pin holes are on 7/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1" Toggle with a 3/8" vertical pin. As used on J/22. RR 45C-65-175 B077




SS Gooseneck Toggle - 3/4" High: SP-454-2S:

Tubular SS 3/4" square Gooseneck Toggle is 3/4" high and accommodates 3/8" vertical and horizontal pins. SS Toggle is 3/4" high x 3/4" wide x 1 3/4" long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets designed for a 3/4" Toggle with a 3/8" vertical pin. Used with the SP-454 cast Gooseneck Bracket.



Aluminum Gooseneck Toggle - 3/4" High, 3/4" Wide: PRS 45C-66-7575:
Solid cast Aluminum Gooseneck Toggle is 3/4" high and accommodates 3/8" vertical and horizontal pins. Anodized Toggle is 3/4" square x 1 3/4" long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 3/4" Toggle with a 3/8" vertical pin. Unit has cotter pin hole on aft side to secure Boom Pin. As used on a variety of Proctor Spars and others.




SS Gooseneck Toggle - 7/8" High: Sch 45S-66-78:

Solid SS Gooseneck Toggle is 7/8" high and accommodates 3/8" vertical and horizontal pins. SS Toggle is 7/8" high x 7/8" wide x 2" long, pin holes are on 1 1/4" centers. Toggle fits a variety of Mast Brackets designed for a 7/8" Toggle with a 3/8" vertical pin. As used on some Cape Dory 26, and others. *




SS Gooseneck Toggle - 1 1/2" High: K-10345C:

Cast SS Gooseneck Toggle is 1 1/2" high and accommodates 3/8" vertical and horizontal pins. SS Toggle is 1 1/2" high x 5/8" wide x 2 1/4" (maximum) long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 1 1/2" Toggle with a 3/8" vertical pin.




Gooseneck Toggle - 2 1/16" High, 15/16" wide: RR 45A-66-1:
Solid cast Aluminum Gooseneck Toggle is 2 1/16" high with holes for 3/8" vertical and horizontal pins. Black epoxy coated Toggle is 2 1/16" high x 15/16" (.940") wide x 2 1/4" (maximum) long, pin holes are on 7/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/16" Toggle with a 3/8" vertical pin. As used on older J/27's, and other Booms using Schaefer 110 Boom Section. 364HS 45C-123-1



Gooseneck Toggle - 2 1/16" High, 7/8" wide: RR 45A-66-1HS:
Solid cast Aluminum Gooseneck Toggle is 2 1/16" high with holes for 3/8" vertical and horizontal pins. Anodized Toggle is 2 1/16" high x 7/8" (.890") wide x 2 1/4" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/16" Toggle with a 3/8" vertical pin. As used on newer J/27's, and other Hall Spar Booms using the HS 095 Boom Section.



Gooseneck Toggle - 2 1/16" High, 5/8" wide: RR 45A-68-1:

Solid cast Aluminum Gooseneck Toggle is 2 1/16" high and accommodates 3/8" vertical and 1/2" horizontal pins. Black epoxy coated Toggle is 2 1/16" high x 15/16" wide x 2 1/8" (maximum) long, pin holes are on 7/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/16" Toggle with a 3/8" vertical pin. S 45C-123C



RR-45C-68-1

Gooseneck Toggle - 2 1/8" High, 5/8" wide: RR 45A-66-2162:
Solid machined Aluminum Gooseneck Toggle is 2 1/8" high with holes for 3/8" vertical and horizontal pins. Anodized Toggle is 2 1/8" high x 5/8" (.625") wide x 1 3/4" (maximum) long, pin holes are on 11/16" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/8" Toggle with a 3/8" vertical pin. ms5033




Gooseneck Toggle - 2 1/4" High, 3/4" Wide: RR 45A-66-2275:
Solid machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 3/8" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 3/4" (.710") wide x 1 3/4" (maximum) long, pin holes are on 11/16" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/4" Toggle with a 3/8" vertical pin. ms



Bronze Gooseneck Toggle - 2 1/4" High, 7/8" Wide: K-2163BT:
Cast Bronze Gooseneck Toggle is 2 1/4" high and accommodates 3/8" vertical and horizontal pins. Bronze Toggle is 2 1/4" high x 7/8" wide x 1 7/8" (maximum) long, pin holes are on 1" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/4" Toggle with a 3/8" vertical pin. Used with Gooseneck Assembly, K-2165A, on Kenyon 3550 Boom. 5072 4960



Gooseneck Toggle - 2 1/4" High, 1" Wide: RR 45A-66-2210:
Solid machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 3/8" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1" wide x 2" (maximum) long, pin holes are on 3/4" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/4" Toggle with a 3/8" vertical pin.




Gooseneck Toggle - 2 1/4" High, 1" Wide: RR 45A-68-2210:
Solid machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 3/8" vertical and 1/2" horizontal pins. Anodized Toggle is 2 1/4" high x 1" wide x 1 3/4" (maximum) long, pin holes are on 11/16" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/4" Toggle with a 3/8" vertical pin. msc




Gooseneck Toggles w/ Tack attachment for 3/8" Vertical Pin
Gooseneck Toggle/Tack w/ Reef Hooks: K-10345A:

Used with the Kenyon E-section, 3550, and 3756 Internal Goosenecks, this combination Toggle/Tack/Reef Hook Assembly features 3 tack positions and includes 3/8" tack fastpin, K-10557. Takes 3/8" vertical pin (CP6-76K), and 3/8" horizontal pin. Two 5/16" reef hooks allow for ease of reefing from either side of the boom. Toggle portion is 1 1/2" high x 7/8" wide with 1" between pin centers. Unit (excluding Reef Hooks) is 4" high x 7/8" wide x 2 1/4" long. Attaches directly to any of the Kenyon SS Gooseneck Brackets or slides designed for a 1 1/2" Toggle with 3/8" vertical pin.



K-10345A
Tack Fastpin for 1 1/2" Toggle: K-10557:

SS Fastpin is 3/8" diameter x 1" long. Used in all K-10345 1 1/2" Toggle/Tack/Reef Hook Assemblies.



Gooseneck Clevis Pin: CP6-76K:

Vertical Clevis Pin for use with K-10345A Gooseneck Toggle/Tack/Reef Hook Assembly and standard Gooseneck Brackets. SS pin is 3/8" diameter with 2 3/8" grip length.



Long Gooseneck Toggle/Tack w/ Reef Hooks: K-10345AL:

As K-10345A, above, but modified to increase the Tack Setback by 1". Greater clearance at the vertical Pin also allows for use with some Aluminum Gooseneck Brackets and Slides not compatible with the standard unit. Used with the Kenyon E-section, 3350, 3550, and 3756 Internal Goosenecks, this combination Toggle/Tack/Reef Hook Assembly features 3 tack positions and includes 3/8" tack fastpin, K-10557. Takes 3/8" vertical pin and 3/8" horizontal pin. Two 5/16" reef hooks allow for ease of reefing from either side of the boom. Toggle portion is 1 1/2" high x 7/8" wide with 2" between vertical and horizontal pin centers. Unit (excluding Reef Hooks) is 4" high x 7/8" wide x 3 1/4" long. Toggle fits all Kenyon Mast Brackets and a variety of Gooseneck Slides designed for a 1 1/2" Toggle with a 3/8" vertical pin.



K-10345AL




Chrome Bronze Gooseneck Toggle/Tack Ass'y - 2" High: Mer 4150-411C:
Cast Chrome-plated Bronze Gooseneck Toggle/Tack Assembly features 3 Tack positions and 2 Boom attachment positions for maximum adjustment. Lower hole can be used with Booms that have a central Swivel Pin. Toggle takes 3/8" vertical and horizontal pins. Toggle portion is 2" high x 1 1/4" wide x 1 7/8" (maximum) long, pin holes are on 1 1/8" centers. Unit is (maximum) 4 5/8" high and includes 1/4" Tack Pin (CP-4-40). Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2" Toggle with a 3/8" vertical pin. Used with a variety of Boom Goosenecks with a 3/8" Horizontal Pin that accept a 1 1/4" wide Toggle, and with Booms that have a central Swivel Pin (up to 1/2" wide) with a 3/8" hole. As used on some Ranger 23's and others.




Gooseneck Toggles for a 1/2" Vertical Pin
SS Gooseneck Toggle - 1" High x 1" wide: SP-097-1:

Solid SS Gooseneck Toggle is 1" high x 1" wide and accommodates 1/2" vertical and horizontal pins. Toggle is 1" square x 2 1/2" long, pin holes are on 1 1/2" centers. Toggle is designed for use with the Spartan SP-097 Cast Gooseneck Bracket for the CD-4 Mast Section.



SP-097-1

SS Gooseneck Toggle - 1 9/16" High, 3/8" wide: RR 45S-88-1.6-6:
SS Gooseneck Toggle is 1 9/16" high and accommodates 1/2" vertical and horizontal pins. Welded SS Toggle is 1 9/16" high x 3/8" wide (at horizontal Pin) x 2 3/8" (maximum) long, pin holes are on 1 3/8" centers. Toggle fits a variety of Mast Brackets designed for a 1 9/16" Toggle with a 1/2" vertical pin.



Gooseneck Toggle - 1 9/16" High, 1" wide: RR 45A-88-191:
Solid machined Aluminum Gooseneck Toggle is 1 9/16" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 1 9/16" high x 1" wide x 3" (maximum) long, pin holes are on 1 13/16" centers. Toggle fits a variety of Mast Brackets designed for a 1 9/16" Toggle with a 1/2" vertical pin. Also used in Spinnaker Pole and Reaching Strut applications.




SS Gooseneck Toggle - 2" High x 1" wide: PP 45-145SS:
Stainless Steel Gooseneck Toggle is 2" high and accommodates 1/2" vertical and horizontal pins. Welded Toggle is 2" high x 1" wide x 2 3/4" (maximum) long, pin holes are on 1 5/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2" Toggle with a 1/2" vertical pin, and is frequently used with Special Reef Hook/Vertical Bolt Assembly, PP 54-3300-1. As used on original Schaefer Spars, the Pearson 365, 424, and a variety of other Pearson's. This item is no longer available having been replaced by the stronger RR 45-147M, below, or the RR 45-147MRA, which includes the Reef Hooks of the associated PP 54-3300-1 Reef Hook/Vertical Bolt Assembly.



Long Gooseneck Toggle w/ Recess - 2" High, 1" wide: RR 45-147M:
Machined Aluminum Gooseneck Toggle is 2" high with holes for 1/2" vertical and horizontal pins. Anodized Toggle is 2" high x 1 3/8" wide (15/16" wide @ Horizontal pin hole) x 3 7/8" (maximum) long, pin holes are on 2 1/2" centers. Toggle features 2nd 1/2" vertical hole (1 1/2" aft) with milled Recess for non-pivoting attachment of Tack/Reef Hook assembly, PP 54-22S. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2" Toggle with a 1/2" vertical pin. Replaces PP 45-145SS, above.






Tubular Gooseneck Toggle for 5/16" Boom Pin, Bronze: Fam 1205T:

Tubular Gooseneck Toggle for 5/16" Boom Pin, Chrome: Fam 1205TC:
Special Famet Tubular cast Bronze Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and 5/16" horizontal pins. Toggle is designed for use with special 1/2" Vertical pin (Fam 1205TPV) with center cut-out; Horizontal Pin interlocks with Vertical Pin, holding it in place. Toggle is 2 1/4" high x 3/4" wide x 1" (maximum) long, and fits a variety of Gooseneck Slides designed for a 2 1/4" Toggle with a 1/2" vertical pin, commonly the Fam 1304 Gooseneck Slide for Boltrope and 2 1/4" Toggle. Used with Famet standard and Roller-Reefing Boom Goosenecks with a 5/16" Horizontal Pin.



Fam 1205T
5/16" Horizontal Gooseneck Pin: Fam 1205TPH:

Interlocking 5/16" Horizontal Gooseneck Pin for use with Famet Tubular Bronze Gooseneck Toggles. SS Clevis Pin is 5/16" diameter x 1 3/8" long, Horizontal Pin interlocks with Vertical Pin, holding Toggle, Gooseneck Slide and Vertical Pin together.



Interlocking 1/2" Gooseneck Pin: Fam 1205TPV:

Special Interlocking Vertical Gooseneck Pin for use with Famet Tubular Bronze Gooseneck Toggles. SS Pin is 1/2" diameter x 3 1/16" long with center cut-out. Horizontal Pin interlocks with Vertical Pin, holding Toggle, Gooseneck Slide and Vertical Pin together.



Tubular Gooseneck Toggle for 3/8" Boom Pin, Bronze: Fam 1206T:

Tubular Gooseneck Toggle for 3/8" Boom Pin, Chrome: Fam 1206TC:
Special Famet Tubular cast Bronze Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and 3/8" horizontal pins. Toggle is designed for use with special 1/2" Vertical Pin (Fam 1205TPV) with center cut-out; Horizontal Pin interlocks with Vertical Pin, holding it in place. Toggle is 2 1/4" high x 7/8" wide x 1 3/16" (maximum) long, and fits a variety of Gooseneck Slides designed for a 2 1/4" Toggle with a 1/2" vertical pin, commonly the Fam 1304 Gooseneck Slide for Boltrope and 2 1/4" Toggle. Used with Famet standard and Roller-Reefing Boom Goosenecks with a 3/8" Horizontal Pin.



Fam 1205T
Interlocking 1/2" Gooseneck Pin: Fam 1205TPV:

Special Interlocking Vertical Gooseneck Pin for use with Famet Tubular Bronze Gooseneck Toggles. SS Pin is 1/2" diameter x 3 1/16" long with center cut-out. Horizontal Pin interlocks with Vertical Pin, holding Toggle, Gooseneck Slide and Vertical Pin together.



Wide Gooseneck Toggle - 2 1/4" High, 3 1/2" wide, Bronze: Fam 1600T:
Famet cast Bronze Gooseneck Toggle is designed for use with Famet 1600 Roller Reefing Gooseneck and a variety of Famet Gooseneck Slides. Special Wide Toggle is 2 1/4" high x 3 1/2" wide and accommodates 1/2" vertical and horizontal pins on 2 1/4" centers.



Gooseneck Toggle - 2 1/4" High, 1" wide: RR 45-88-241A:
Solid machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1" wide x 2 1/4" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits most gooseneck brackets designed for a 2 1/4" Toggle with a 1/2" vertical pin. ms



Long Gooseneck Toggle - 2 1/4" High, 1" wide: RR 45-88-241AL:
Solid machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1" wide x 2 5/8" (maximum) long, pin holes are on 1 3/8" centers. Toggle fits most gooseneck brackets designed for a 2 1/4" Toggle with a 1/2" vertical pin. ds



Wide Gooseneck Toggle - 2 1/4" High, 1 1/4" wide: RR 45-88-2414A:
Solid machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1 1/4" wide x 2 1/4" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits most gooseneck brackets designed for a 2 1/4" Toggle with a 1/2" vertical pin. ms



Wide Gooseneck Toggle - 2 1/4" High, 1 1/4" wide, Long: RR 45-88-2414AL:
Machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1 1/4" wide x 3" (maximum) long, pin holes are on 1 3/4" centers. Toggle fits most gooseneck brackets designed for a 2 1/4" Toggle with a 1/2" vertical pin. Special as used on Tartan 3700 and others.



Long Gooseneck Toggle w/ Recess - 2 1/4" High, 1" wide: RR 45-148M:
Machined Aluminum Gooseneck Toggle is 2 1/4" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1 1/4" wide (15/16" wide @ Horizontal pin hole) x 4" (maximum) long, pin holes are on 2 1/2" centers. Toggle features 2nd 1/2" vertical hole (1 5/8" aft) with milled Recess for non-pivoting attachment of Tack/Reef Hook assembly, PP 54-22S. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/4" Toggle with a 1/2" vertical pin. Replaces earlier Cast version. As used on Sabre 42.




Gooseneck Toggle - 2 5/16" High, 1 3/8" wide: RR 45-67C:
Cast Aluminum Gooseneck Toggle is 2 5/16" high and accommodates 1/2" vertical and horizontal pins. Black epoxy coated Toggle is 2 5/16" high x 1 3/8" wide x 2 1/2" (maximum) long, pin holes are on 1 1/4" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 5/16" Toggle with a 1/2" vertical pin. As used on Pearson, Bristol, Sabre, and others.



RR-45-67C
Famet Wide Gooseneck Toggle - 2 5/16" High, Bronze: Fam 1400T:

Famet Wide Gooseneck Toggle - 2 5/16" High, Chrome: Fam 1400TC:
Cast Bronze Gooseneck Toggle is 2 5/16" high and accommodates 1/2" vertical and horizontal pins. Toggle is 2 5/16" high x 2 1/16" wide (outside) x 2 1/2" (maximum) long, pin holes are on 1 5/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 5/16" Toggle with a 1/2" vertical pin. Used with Famet standard and Roller-Reefing Boom Goosenecks with a 1/2" Horizontal Pin.




Chrome Bronze Gooseneck Toggle - 2 3/8" High, 1 3/8" wide: NF 10541-85C:
Cast Bronze Gooseneck Toggle is 2 3/8" high and accommodates 1/2" vertical and 5/16" horizontal pins. Special "Hollow" Toggle is cut-out (7/8" wide) between the horizontal holes, for use with Center Pin type goosenecks, or those with a central tab. Chrome plated Toggle is 2 3/8" high x 1 3/8" wide (outside) x 2 1/8" (maximum) long, pin holes are on 1 1/4" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 3/8" Toggle with a 1/2" vertical pin. Used with Nicro-Fico and Famet standard and Roller-Reefing Boom Goosenecks with a 5/16" Horizontal Pin, and on some Tartan 30 booms. NM-327M



NF-10541-85



Gooseneck Toggle - 2 3/8" High, 1 3/8" wide: RR 45A-88-2.4-1.4:
Solid machined Aluminum Gooseneck Toggle is 2 3/8" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 3/8" high x 1" wide x 2 3/8" (maximum) long, pin holes are on 1 1/8" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 3/8" Toggle with a 1/2" vertical pin. ***



Chrome Bronze Gooseneck Toggle - 2 3/8" High, 1 3/8" Wide: NF 10541-88:

SS Gooseneck Toggle - 2 3/8" High, 1 3/8" Wide: NF 10541-88SS:
Nicro-Fico Gooseneck Toggle is 2 3/8" high and accommodates 1/2" vertical and horizontal pins. Special "Hollow" Toggle is cut-out (7/8" wide) between the horizontal holes, for use with Center Pin type goosenecks, or those with a central tab. SS or original Chrome Toggle is 2 3/8" high x 1 3/8" wide (outside) x 2 1/8" (maximum) long, pin holes are on 1 1/4" centers. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 3/8" Toggle with a 1/2" vertical pin. Used with Nicro-Fico standard and Roller-Reefing Boom Goosenecks with a 1/2" Horizontal Pin. As NF 10541-85, above, but with 1/2" horizontal Pin hole.  NM-326



NF-10541-85




Long Gooseneck Toggle w/ Recess - 2 1/2" High, 1" wide: RR 45-149M:
Machined Aluminum Gooseneck Toggle is 2 1/2" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/2" high x 1 1/4" wide (1" wide @ Horizontal pin hole) x 4" (maximum) long, pin holes are on 2 1/2" centers. Toggle features 2nd 1/2" vertical hole (1 5/8" aft) with milled Recess for non-pivoting attachment of Tack/Reef Hook assembly, PP 54-22S. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/2" Toggle with a 1/2" vertical pin. Replaces earlier Cast version. As used by Hall Spars on J/35, J/105, J/120, Sabre 36, Sabre 426 and others.   298SHP9172

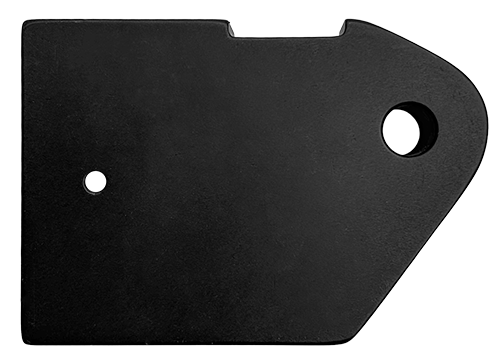

Long Gooseneck Toggle w/ Recess - 3 1/4" High, 1" wide: RR 45-150M:
Machined Aluminum Gooseneck Toggle is 3 1/4" high and accommodates 1/2" vertical and horizontal pins. Anodized Toggle is 3 1/4" high x 1" wide x 4 5/8" (maximum) long, pin holes are on 3 1/8" centers. Toggle features 2nd 1/2" vertical hole (1 15/16" aft) with milled Recess for non-pivoting attachment of Tack/Reef Hook assembly, PP 54-22S. Unit features cotter pin hole to secure Vertical Pin. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 3 1/4" Toggle with a 1/2" vertical pin. As used by Hall Spars. PR




Gooseneck Toggles w/ Tack attachment for 1/2" Vertical Pin
Gooseneck Toggle/Tack Ass'y w/ Reef Hooks - 2" High: RR 45-147MRA:
Combination Toggle/Tack/Reef Hook assembly features SS Tack/Reef Hook assembly bolted to 2" high Aluminum Toggle (RR 45-147M) and includes 1/2" Tack pin. Toggle takes 1/2" vertical and horizontal pins. Black epoxy coated Toggle is 2" high x 1 3/8" wide (15/16" wide @ Horizontal pin hole) x 3 7/8" (maximum) long, pin holes are on 2 1/2" centers. Toggle fits a variety of Mast Brackets designed for a 2" Toggle with a 1/2" vertical pin. Specially produced for replacement of Schaefer Stainless Steel Toggle/Tack/Reef Hook assembly (2" high), as used on early Sabre 34, Cape Dory 36, and S2 11.0.




Gooseneck Toggle/Tack Ass'y w/ Reef Hooks - 2 1/4" High: RR 45-148MRA:
Combination Toggle/Tack/Reef Hook assembly features SS Tack/Reef Hook assembly (PP 54-22S) bolted to Aluminum Toggle (RR 45-148M) and includes 1/2" Tack pin. Toggle takes 1/2" vertical and horizontal pins. Anodized Toggle is 2 1/4" high x 1 1/4" wide (15/16" wide @ Horizontal pin hole) x 3 7/8" (maximum) long, pin holes are on 2 1/2" centers. Toggle fits a variety of Mast Brackets designed for a 2 1/4" Toggle with a 1/2" vertical pin. As used on Sabre 42.



RR-45TR-148MA

Famet Wide Toggle/Tack Ass'y - 2 5/16" High, Bronze: Fam 1400TTA:
Famet Wide Toggle/Tack Ass'y - 2 5/16" High, Chrome: Fam 1400TTAC:
Cast Bronze Gooseneck Toggle/Tack Assembly features 3 Tack positions and includes 3/8" Tack fastpin (FP-6-48). Accommodates 1/2" vertical and 5/16" horizontal pins. Toggle portion is 2 5/16" high x 2" wide (outside) x 2 1/2" (maximum) long, pin holes are on 1 5/8" centers. Unit is (maximum) 5 5/8" high. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 5/16" Toggle with a 1/2" vertical pin. Used with Famet standard and Roller-Reefing Boom Goosenecks with a 5/16" Horizontal Pin.




Gooseneck Toggle/Tack Ass'y w/ Reef Hooks - 2 1/2" High: RR 45-149MRA:
Combination Toggle/Tack/Reef Hook assembly features SS Tack/Reef Hook assembly (PP 54-22S) bolted to cast Aluminum Toggle (RR 45-149M) and includes 1/2" Tack pin. Toggle takes 1/2" vertical and horizontal pins. Black epoxy coated Toggle is 2 1/2" high x 1 1/4" wide (1" wide @ Horizontal pin hole) x 4" (maximum) long, pin holes are on 2 1/2" centers. Toggle fits a variety of Mast Brackets designed for a 2 1/2" Toggle with a 1/2" vertical pin. As RR 45-147MRA and RR 45-148MRA, above, but with 2 1/2" high Toggle.




SS Gooseneck Toggle/Tack Ass'y - 2 1/2" High: RR 45T-1616SA:
Cast SS Gooseneck Toggle/Tack Assembly features 3 Tack positions and includes 5/16" Tack Pin (CP-5-40). Accommodates 1/2" vertical and horizontal pins. Toggle portion is 2 1/2" high x 1 1/8" wide (outside) x 5/8" wide (inside) x 2 1/4" (maximum) long, pin holes are on 1 1/8" centers. Unit is (maximum) 5 3/8" high. Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/2" Toggle with a 1/2" Vertical Pin. Used with a variety of Boom Goosenecks with a 1/2" Horizontal Pin that accept a 1 1/8" wide Toggle, and also Boom Goosenecks with SS Swivel Pins (up to 5/8" wide) designed to fit the inside of the Toggle. *



Gooseneck Toggle/Tack Ass'y - 2 1/2" High, Bronze: Mer 4150-422B:
Gooseneck Toggle/Tack Ass'y - 2 1/2" High, Chrome: Mer 4150-422C:
Cast Bronze Gooseneck Toggle/Tack Assembly features 3 Tack positions and 2 Boom attachment positions for maximum adjustment. Lower hole can be used with Booms that have a central Swivel Pin. Toggle takes 1/2" vertical and horizontal pins. Toggle portion is 2 1/2" high x 1 1/2" wide x 2 1/4" (maximum) long, pin holes are on 1 1/4" centers. Unit is (maximum) 5 1/2" high and includes 3/8" Tack Pin (CP-6-40). Toggle fits a variety of Mast Brackets and Gooseneck Slides designed for a 2 1/2" Toggle with a 1/2" vertical pin. Used with a variety of Boom Goosenecks with a 1/2" Horizontal Pin that accept a 1 1/2" wide Toggle, and with Booms that have a central Swivel Pin with a 1/2" hole.



Mer4150-322B
Gooseneck Toggle/Tack Assembly, Bronze: SP-175:

Gooseneck Toggle/Tack Assembly, Chrome: SP-175C:

Special Spartan Cast Bronze Gooseneck Toggle/Tack Assembly features 2 Tack positions and includes 3/8" Tack Fastpin (FP-6-48). Accommodates 1/2" vertical and horizontal pins, and has 1/4" hole for the mounting of reef hooks (SP-174-3). Designed for use with the Spartan SP-504, and SP-174 cast Aluminum Gooseneck Brackets, Toggle portion (between Mast Bracket) is 1 1/8" high x 7/8" wide with 1 7/8" between pin centers. Unit is (maximum) 5 5/8" high x 1 1/4" wide.



SP-175




Gooseneck Toggle Reef Hook: SP-174-3:
This 3/8" diameter reef hook is designed to bolt to the SP-175 Gooseneck Toggle with the included 1/4" fasteners (2" bolt w/ locknut). Measures 3 1/4" long x 1 5/8" wide.



SP-174-3
Gooseneck Toggle/Tack Ass'y w/ Reef Hooks - 1/2": PP 45TR-40A:
This combination Toggle/Tack/Reef Hook Assembly features two 3/8" reef hooks and includes 1/2" Clevis Pin for Tack Attachment. Takes 1/2" vertical pin, and 5/8" horizontal pin, with 2" between pin centers. Toggle portion is 2 1/4" high, aft side (with Horizontal pin) is 1 1/4" wide (outside) x 7/8" (inside) for use with Boom Goosenecks fitting inside or outside of the Toggle. Unit is 5" high x 3 1/2" long, Tack Pin is 1 1/4" forward of, and 3 1/8" higher than Horizontal pin. Original Sound Spar Assembly attaches directly to any Gooseneck Brackets designed for a 2 1/4" Toggle with 1/2" vertical pin. As used on Pearson 40. ss



PP-45TR-40A

Gooseneck Toggle/Tack w/ Reef Hooks - 1/2": K-10702A:

Used with the Kenyon 5072 and other Internal Goosenecks, this combination Toggle/Tack/Reef Hook Assembly features two reef hooks and includes 1/2" tack fastpin, K-10718. Takes 1/2" vertical pin, and 5/8" horizontal pin. Two 7/16" reef hooks allow for ease of reefing from either side of the boom. Toggle portion is 3" high x 1 3/8" wide with 1" between pin centers. Unit (excluding Reef Hooks) is 7 1/4" high x 1 3/8" wide x 3" long, Tack Pin is 3/4" forward of, and 4 3/4" higher than Horizontal pin. Attaches directly to any Kenyon and other SS Gooseneck Brackets designed for a 3" Toggle with 1/2" vertical pin.











1/2" Vertical Gooseneck Pin for 3" Toggle: CP8-140K:

Clevis pin is 1/2" diameter x 4 3/8" long. Used with 5072 boom, to attach the K-10702A Toggle/Tack/Reef Hook Assembly to a variety of Kenyon SS Gooseneck Brackets.




  Tack Fastpin for K-10702 Gooseneck Toggle: K-10718:




SS Fastpin is 1/2" diameter x 1 1/2" long. Used in all K-10702 Toggle/Tack/Reef Hook Assemblies.




Special SS Gooseneck Toggle w/ Tack Attachment for 2 1/2" High Bracket: PP 45S-88CS:
Special Cast Stainless Steel Gooseneck Toggle is designed to fit external to (above & below) Gooseneck bracket or Slide tabs, with a 1/2" clevis pin, and into 1/2" wide recess in gooseneck Yoke on Boom end. Toggle fits over Gooseneck bracket or Gooseneck slide Tabs up to 2 5/8" (maximum) apart and accommodates 1/2" vertical and horizontal pins. Cast SS Toggle is (maximum) 5 5/8" high x 1 1/4" wide (7/16" wide @ Horizontal pin hole) x 2 7/8" (maximum) fore & aft, pin holes are on 1 5/8" centers. Toggle features 3 holes (3/8" dia.) for attachment of Tack shackle, and lower hole (3/8" dia.) for attachment of mainsheet block or downhaul. Toggle fits a variety of special Mast Brackets and Gooseneck Slides with tabs up to 2 5/8" apart, using an upside down (cotter pin on top) 1/2" vertical Clevis Pin. WCL



PP-45S-88CS

Gooseneck Toggles for a 5/8" Vertical Pin
SS Gooseneck Toggle - 2 1/2" High x 5/8" wide: RR 45S-108-2.5-10:
SS Gooseneck Toggle is 2 1/2" high and accommodates 5/8" vertical and 1/2" horizontal pins. Welded SS Toggle is 2 1/2" high x 5/8" wide (at horizontal Pin) x 3 5/16" (maximum) long, pin holes are on 1 7/8" centers. Toggle fits a variety of Mast Brackets designed for a 2 1/2" Toggle with 5/8" vertical pin. Also commonly used as a Vang Toggle.



Gooseneck Toggle - 2 1/2" High x 1 1/4" wide: K-11698:
Solid machined Aluminum Gooseneck Toggle is 2 1/2" high and accommodates 5/8" vertical and 1/2" horizontal pins. White epoxy coated Toggle is 2 1/2" high x 1 1/4" wide x 2 5/8" (maximum) long, pin holes are on 1 1/4" centers. Used with the Kenyon K-11693 heavy-duty gooseneck bracket, Toggle also fits other gooseneck brackets designed for a 2 1/2" Toggle with 5/8" vertical pin. As used on J/40, and others.



K-11698

SS Gooseneck Toggle - 3" High x 1/2" wide for 5/8" Pins: K-11374:
SS Gooseneck Toggle is 3" high and accommodates 5/8" vertical and horizontal pins. Welded SS Toggle is 3" high x (maximum) 7/8" wide (1/2" wide @ Horizontal pin hole) x 4 7/8" long, pin holes are on 3 7/16" centers. Vertical hole is 7/16" aft of forward edge, Horizontal hole is 1" from aft end. Toggle fits all gooseneck brackets designed for a 3" Toggle with a 5/8" vertical pin. Special for use on some Kenyon 3656, 4060 and 4873 custom booms. As used on Freedom 29, 32, 33, 36, 39, and 44.



  5/8" Vertical Gooseneck Bolt Ass'y for K-11374 Toggle: K-11374BA:




SS Bolt is 5/8" diameter x 6" long. Used with Kenyon Custom Booms to attach the K-11374 Toggle to the Gooseneck Bracket on the mast. Includes Locknut and nylon washers.



  Tack Bracket for 5/8" Vertical Bolt w/ 3/8" Pin: K-2166A:




Heavy-duty SS welded Tack Bracket fits on 5/8" vertical Gooseneck bolt. Tack Bracket is 1 1/2" long x 1 3/8" wide x 3" high and includes 3/8" Tack Fastpin, K-10140. Used with K-11374 Gooseneck Toggle.







Tack Fastpin for K-2166 Tack Bracket: K-10140:

SS Fastpin is 3/8" diameter x 1 3/8" long. Used in K-2166A Tack Bracket.




Gooseneck Toggle - 3 5/16" High for 5/8" Pins: RR 45A-1010-3312:
Solid machined Aluminum Gooseneck Toggle is 3 5/16" high and accommodates 5/8" vertical and horizontal pins. Anodized Toggle is 3 5/16" high x 1 9/16" wide x 3 3/4" (maximum) long, pin holes are on 1 7/8" centers. Vertical hole is 3/4" aft of forward edge, Horizontal hole is 1" from aft end. Toggle fits most gooseneck brackets designed for a 3 1/4" Toggle with a 5/8" vertical pin.




Gooseneck Toggle - 4" High for 5/8" Pins: RR 45A-1010-4012:
Solid machined Aluminum Gooseneck Toggle is 4" high and accommodates 5/8" vertical and horizontal pins. Anodized Toggle is 4" high x 1 1/4" wide x 4" (maximum) long, pin holes are on 2 1/4" centers. Vertical hole is 3/4" aft of forward edge, Horizontal hole is 1" from aft end. Toggle fits most gooseneck brackets designed for a 4" Toggle with a 5/8" vertical pin. ms




Gooseneck Toggles w/ Tack attachment for 5/8" Vertical Pin
Gooseneck Toggle/Tack w/ Reef Hooks - 5/8": K-10702LA:

Used with the Kenyon 5072 and other Internal Goosenecks, this combination Toggle/Tack/Reef Hook Assembly features two reef hooks and includes 1/2" tack fastpin, K-10718. Takes 5/8" vertical and horizontal pins. Two 7/16" reef hooks allow for ease of reefing from either side of the boom. Toggle portion is 3" high x 1 3/8" wide with 1" between pin centers. Unit (excluding Reef Hooks) is 7 1/4" high x 1 3/8" wide x 3" long, Tack Pin is 3/4" forward of, and 4 3/4" higher than Horizontal pin. Attaches directly to any Kenyon and other SS Gooseneck Brackets designed for a 3" Toggle with 5/8" vertical pin. Identical to K-10702A, above, but with hole for 5/8" vertical pin.







5/8" Vertical Gooseneck Pin for 3" Toggle: CP10-140K:

Clevis pin is 5/8" diameter x 4 3/8" long. Used with 5072 boom, to attach the K-10702LA Toggle/Tack/Reef Hook Assembly to the Gooseneck Bracket on the mast.



  Tack Fastpin for K-10702 Gooseneck Toggle: K-10718:




SS Fastpin is 1/2" diameter x 1 1/2" long. Used in all K-10702 Toggle/Tack/Reef Hook Assemblies.



Special SS Gooseneck Toggle w/ Tack Attachment for 3 1/4" High Bracket: PP 45S-108CS:
Special Cast Stainless Steel Gooseneck Toggle is designed to fit external to (above & below) Gooseneck bracket or Slide tabs, with a 5/8" clevis pin, and into 3/4" wide recess in gooseneck Yoke on Boom end. Toggle fits over Gooseneck bracket or Gooseneck slide Tabs up to 3 1/4" (maximum) apart and accommodates 5/8" vertical and 1/2" horizontal pins. Cast SS Toggle is (maximum) 7" high x 1 1/4" wide (5/8" wide @ Horizontal pin hole) x 3 1/4" (maximum) fore & aft, pin holes are on 1 7/8" centers. Toggle features 2 holes (1/2" dia.) for attachment of Tack shackle, and lower hole (1/2" dia.) for attachment of mainsheet block or downhaul. Toggle fits a variety of special Mast Brackets and Gooseneck Slides with tabs up to 2 5/8" apart, using an upside down (cotter pin on top) 5/8" vertical Clevis Pin. WCL 25620



PP-45S-108CS

Gooseneck Toggles for a 3/4" Vertical Pin
Gooseneck Toggle - 3 1/8" High: PP 45A-1210CS:

Solid Machined Aluminum Gooseneck Toggle is 3 1/8" high and accommodates 3/4" vertical and 5/8" horizontal pins. Anodized Toggle is (maximum) 3 1/8" high x 1 1/2" wide x 4" long, pin holes are on 2 1/4" centers. As used on Lagoon 42.



Gooseneck Toggle - 3 7/8" High: PP 45A-1212CC:

Cast Aluminum Gooseneck Toggle is 3 7/8" high and accommodates 3/4" vertical and horizontal pins. Anodized Toggle is (maximum) 3 7/8" high x 2 9/16" wide x 3 3/8" long, pin holes are on 2" centers. Toggle has 2 1/4" vertical cut-out, 2" deep, to fit over special 2" high C&C Gooseneck Bracket with 3/4" vertical pin. As used on C&C 48.




Gooseneck Toggles for a 7/8" Vertical Pin
Gooseneck Toggle - 4 3/8" High: PP 45A-1414HS:
Solid Machined Aluminum Gooseneck Toggle is 4 3/8" high and accommodates 7/8" vertical and horizontal pins. Anodized Toggle is (maximum) 4 3/8" high x 1 1/2" wide x 5" long, pin holes are on 2 5/8" centers.




~ Back to Spars Main Page ~

~ Home ~
