Reef Hooks


Reef Hooks and Reef Hook/Tack Assemblies
Reef Hooks are used to hold down the "new" Tack (at the reef point) when jiffy reefing the Mainsail. Simple and Rams' Horn Reef Hooks are attached to the Boom, as near the Tack attachment as possible, and are either screwed to the Boom or are attached to the horizontal Gooseneck Pin. In many applications (where the attachment Bolt can not be tightened enough to hold the Reef Hook in place without causing the Gooseneck Toggle to bind) they are wholly unsuited to the task and are, at best, a marginal solution used only where no better off-the-shelf item is available.
Reef Hook/Tack Assemblies are a much better solution, generally attached beneath the head of the vertical Gooseneck Bolt, on which the Gooseneck Toggle pivots. These units keep the sail pivot point in line with the Boom pivot point, as well as keeping all Tacks (Original and Reefing) in close proximity, allowing for a better sail set. Please note: If using this item on a mast which has a vertical Gooseneck Pin, it must be replaced with a vertical Gooseneck Bolt and a Nut, as you will now have the full tension of the main halyard on it. A cotter pin is not strong enough to take this shear load. Some Reef Hook/Tack Assemblies are available already welded to a vertical Gooseneck Bolt, please specify the vertical outside measurement of your Gooseneck Bracket, and Pin diameter. All Mainsails should have 2 SS rings webbed together through each of the forward Reef Grommets, as this simplifies the Reefing procedure with all systems.
Cunningham Hooks are used on Mainsails and Jibs, frequently spliced to a line for remote convenience.

Rig-Rite stocks a large variety of Reef Hooks originally produced by many different Spar Builders. As always, there have been many 'specials' produced over the years, if no Reef Hook arrangement listed here is suitable for your application, please contact us with your requirements and complete dimensions.

Some Gooseneck Toggles have Reef Hooks incorporated into them. As these items are first and foremost Gooseneck Toggles, they are listed separately, See Gooseneck Toggles.

A variety of Gooseneck Tack Attachments (without Reef Hooks) for use with a Vertical Bolt, or including an integral Bolt are also available, and are listed separately, See: Gooseneck Tack Attachments.

Other specialized Reef Hook arrangements, specific to European Spar Builders, are also available.
Isomat Spars use a variety of specialized Reef Hooks, See Isomat Booms.
Sparcraft Spars use a variety of specialized Reef Hooks, See Sparcraft Booms.
Z-Spar Spars use their own variety of specialized Reef Hooks, See Z-Spar Booms.


Simple Reef Hooks
Rams Horn Reef Hooks
Cunningham Hooks
Reef Hook/Tack Assemblies
Special Reef Hooks
Weld-on Reef Hooks



Simple Reef Hooks
5/16" Simple Reef Hook w/ 1/4" Hole: PP 54-1S:

Simple 5/16" diameter SS Reef Hook has flattened end with (1) 1/4" (6mm) hole for bolt or screw. SS Reef Hook is (maximum) 3 1/4" high.



3/8" Simple Reef Hook w/ 1/4" Hole: PP 54-2S:

Simple 3/8" diameter SS Reef Hook has flattened end with (1) 1/4" (6mm) hole for bolt or screw. SS Reef Hook is (maximum) 3 1/2" high. Used with the SP-175 Gooseneck Toggle on a variety of Cape Dory's.   SP-174-3A 2x1/4"B




Simple Reef Hook w/ 3/8" Hole: PP 54-6S:

Simple 3/8" diameter SS Reef Hook is welded to tab with 3/8" hole. SS Reef Hook is (maximum) 4" high, (3 1/4" from hole center). For special applications using a 3/8" Horizontal Pin or bolt.




Simple Reef Hook w/ 1/2" Hole: PP 54-8S:

Simple 3/8" diameter SS Reef Hook is welded to tab with 1/2" hole. SS Reef Hook is (maximum) 4" high, (3 1/4" from hole center). This item was designed for attachment to a variety of Nicro-Fico and Pearson Goosenecks already utilizing a 1/2" Horizontal Pin or bolt.




Heavy-duty Simple Reef Hook w/ 1/2" Hole - Short: PP 54-8SL:
Short, Heavy-duty Simple 7/16" diameter SS Reef Hook is welded to tab with 1/2" hole. SS Reef Hook is (maximum) 3 1/4" high, (2 1/2" from hole center). For special applications using a 1/2" Horizontal Pin or bolt.




7/16" Simple Reef Hook w/ 5/8" Hole: PP 54-10S:
Simple 7/16" diameter SS Reef Hook is welded to tab with 5/8" hole. SS Reef Hook is (maximum) 4 1/2" high, (3 3/4" from hole center). Designed for applications using a 5/8" Horizontal Pin or bolt.




Simple - Bent Reef Hooks
5/16" Bent Reef Hook: PP 54-1B:

SS Bent Reef Hook is formed from 5/16" diameter rod, bent ID will accept up to 1/2" (12mm) bolt or screw. Unit is (maximum) 2 1/2" high.



3/8" Bent Reef Hook: PP 54-2B:

SS Bent Reef Hook is formed from 3/8" diameter rod, bent ID will accept up to 9/16" (14mm) bolt or screw. Unit is (maximum) 3 1/4" high.




Rams' Horn Reef Hooks
5/16" Rams' Horn Reef Hook w/ 1/4" Hole: PP 54-1R:

SS 5/16" diameter Reef Hook is formed in "Rams' Horn" pattern, attachment end is flattened and has (1) 1/4" (6mm) hole for bolt or screw.



PP 54-1
3/8" Rams' Horn Reef Hook w/ 1/4" Hole: PP 54-2R:

SS 3/8" diameter Reef Hook is formed in "Rams' Horn" pattern, attachment end is flattened and has (1) 1/4" (6mm) hole for bolt or screw.



3/8" Rams' Horn Reef Hook w/ 3/8" Hole: PP 54-6R:

SS 3/8" diameter Reef Hook is formed in "Rams' Horn" pattern, attachment end is welded to short 1" wide SS tab with 3/8" hole.



PP 54-6R
3/8" Rams' Horn Reef Hook w/ 1/2" Hole: PP 54-8R:
SS 3/8" diameter Reef Hook is formed in "Rams' Horn" pattern, attachment end is welded to short 1" wide SS tab with 1/2" hole. This item was designed for attachment to a variety of Nicro-Fico and Pearson Goosenecks already utilizing a 1/2" Horizontal Pin or bolt.




Cunningham Hooks
1/4" Cunningham Hook: PP 54-0C:

SS Cunningham Reef Hook is formed from 1/4" diameter rod with welded eye for up to 5/16" (8mm) line. Unit is (maximum) 2 1/2" long.



5/16" Cunningham Hook: PP 54-1C:

SS Cunningham Reef Hook is formed from 5/16" diameter rod with welded eye for up to 3/8" (10mm) line. Unit is (maximum) 3 5/8" long.




Reef Hook/Tack Assemblies
SS Reef Hook/Tack Ass'y for 1/4" Vertical Bolt: PP 54-20S:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 1/4" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 2 1/2" wide (at top), 7/8" wide (at bottom), 2" high, and has 5/8" clearance for Tack. Assembly is formed from 3/4" x 1/8" SS Strap and includes 1/4" SS Tack pin.




PP 54-20S
SS Reef Hook Ass'y w/ 3-position Tack for 1/4" Vertical Bolt: K-10501:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 1/4" Vertical Gooseneck Bolt. Unit features 3-position Tack Bracket with (2) 1/4" SS reef hooks and includes 5/16" SS Tack Fastpin. Tack Bracket is 1" wide x 3 5/8" high, and has 3/4" clearance for Tack, Assembly is formed from 1" x 1/8" SS Strap and is (maximum) 3 1/8" wide.



K-10501
3-position Tack Ass'y for 1/4" Vertical Bolt: K-8950A:

Heavy-duty Stainless Steel Tack Assembly mounts under head of 1/4" Vertical Gooseneck Bolt. Unit features 3-position Tack Bracket with 5/16" SS Tack Fastpin (included). Tack Bracket is 1" wide x 3 5/8" high, and has 3/4" clearance for Tack, Assembly is formed from 1" x 1/8" SS Strap. As K-10501, above, but without Reef Hooks.





SS Reef Hook/Tack Ass'y for 5/16" Vertical Bolt: PP 54-20-5:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 5/16" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 2 1/2" wide (at top), 7/8" wide (at bottom), 2" high, and has 5/8" clearance for Tack. Assembly is formed from 3/4" x 1/8" SS Strap and includes 1/4" SS Tack pin.



SS Reef Hook Ass'y w/ 3-position Tack for 5/16" Vertical Bolt: K-10501-5:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 5/16" (8mm) Vertical Gooseneck Bolt. Unit features 3-position Tack Bracket with (2) 1/4" SS reef hooks and includes 5/16" SS Tack Fastpin. Tack Bracket is 1" wide x 3 5/8" high, and has 3/4" clearance for Tack, Assembly is formed from 1" x 1/8" SS Strap and is (maximum) 3 1/8" wide. As K-10501, above, but drilled for 5/16" bolt.



K-10501
3-position Tack Ass'y for 5/16" Bolt: K-8950-5A:

Heavy-duty Stainless Steel Tack Assembly mounts under head of 5/16" Vertical Gooseneck Bolt. Unit features 3-position Tack Bracket with 5/16" SS Tack Fastpin (included). Tack Bracket is 1" wide x 3 5/8" high, and has 3/4" clearance for Tack, Assembly is formed from 1" x 1/8" SS Strap. As K-10501, above, but without Reef Hooks.





SS Reef Hook/Tack Ass'y for 3/8" Vertical Bolt: PP 54-20-6:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 3/8" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 2 1/2" wide (at top), 7/8" wide (at bottom), 2" high, and has 5/8" clearance for Tack. Assembly is formed from 3/4" x 1/8" SS Strap and includes 1/4" SS Tack pin. As used on J/22, and others.



PP 54-21S
SS Reef Hook/Tack Ass'y for 3/8" Vertical Bolt: PP 54-21S:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 3/8" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 2 3/4" wide (at top), 1" wide (at bottom), 2 1/2" high, and has 3/4" clearance for Tack. Assembly is formed from 7/8" x 1/8" SS Strap and includes 3/8" SS Tack pin. sp1"wd k-3479



PP 54-21S

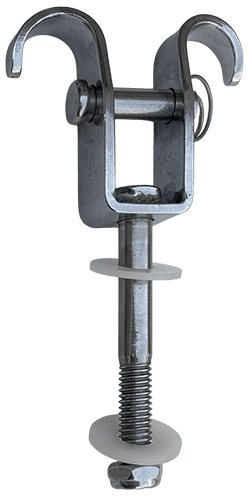

SS Reef Hook/Tack Ass'y With 3/8" Vertical Bolt: RR 54-21B6-3:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 3/8" Vertical Gooseneck Bolt. Dual Reef Hook Assembly consists of PP 54-21S (above) welded to a 3/8" bolt, and includes Locknut and 3/8" SS Tack Pin. Bolt is 2 7/8" long (under head) for use with Gooseneck Brackets and slides with a 3/8" Vertical Pin hole and a maximum 2 1/2" bracket height. This item is also available on a custom basis with other bolt lengths, please specify. As used on a variety of Pearson Yachts and others.



SS Reef Hook Ass'y w/ 3-position Tack for 3/8" Vertical Bolt: K-10501-6:
Light-duty Stainless Steel Reef Hook/Tack Assembly mounts under head of 3/8" Vertical Gooseneck Bolt. Unit features 3-position Tack Bracket with (2) 1/4" SS reef hooks and includes 5/16" SS Tack Fastpin. Tack Bracket is 1" wide x 3 5/8" high, and has 3/4" clearance for Tack, Assembly is formed from 1" x 1/8" SS Strap and is (maximum) 3 1/8" wide. As K-10501, above, but drilled for 3/8" bolt.



K-10501
3-position Tack Ass'y for 3/8" Bolt: K-8950-6A:

Heavy-duty Stainless Steel Tack Assembly mounts under head of 3/8" Vertical Gooseneck Bolt. Unit features 3-position Tack Bracket with 5/16" SS Tack Fastpin (included). Tack Bracket is 1" wide x 3 5/8" high, and has 3/4" clearance for Tack, Assembly is formed from 1" x 1/8" SS Strap. As K-10501, above, but without Reef Hooks.





SS Reef Hook/Tack Ass'y With 7/16" Vertical Bolt: RR 54-B7-3A:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 7/16" Vertical Gooseneck Bolt. Dual Reef Hooks are formed from 5/16" rod, Assembly is (maximum) 3 1/2" wide x 7" high, and includes 5/16" SS Tack Fastpin. Bolt is 3 1/4" long (under head) for use with Gooseneck Brackets and slides with a 7/16" Vertical Pin hole and a maximum 2 3/4" bracket height.



SS Reef Hook/Tack Ass'y w/ 7/16" Vertical Bolt: RR 54-B7-35A:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 7/16" Vertical Gooseneck Bolt. Dual Reef Hooks are formed from 5/16" rod, Assembly is (maximum) 4 5/8" wide x 6 1/2" high, and includes 5/16" SS Tack Shackle. Bolt is 3 5/8" long (under head) for use with Gooseneck Brackets and slides with a 7/16" Vertical Pin hole and a maximum 3 1/4" bracket height. This item is also available on a custom basis with other bolt lengths, please specify. As used on some C&C 35's and others.




SS Reef Hook/Tack Ass'y for 1/2" Vertical Bolt: PP 54-21LS:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 1/2" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 2 3/4" wide (at top), 1" wide (at bottom), 2 1/2" high, and has 3/4" clearance for Tack. Assembly is formed from 7/8" x 1/8" SS Strap and includes 3/8" SS Tack pin. As PP 54-21S, above, but with hole for 1/2" Vertical Bolt.



Large SS Reef Hook/Tack Ass'y for 1/2" Vertical Bolt: PP 54-22S:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly mounts under head of 1/2" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 3 1/4" wide (at top), 1 3/8" wide (at bottom), 3 1/4" high, and has 1" clearance for Tack. Assembly is formed from 1" x 3/16" SS Strap and includes 1/2" SS Tack pin. k-6955



PP 54-22S
SS Reef Hook/Tack Ass'y with 1/2" Vertical Bolt: RR 54-B8-4A:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 1/2" Vertical Gooseneck Bolt. Dual Reef Hooks are formed from 5/16" rod, Assembly is (maximum) 4 5/8" wide x 7" high, and includes 5/16" SS Tack Shackle. Bolt is 4 1/4" long (under head) for use with Gooseneck Brackets and slides with a 1/2" Vertical Pin hole and a maximum 3 1/2" bracket height. This item is also available on a custom basis with other bolt lengths, please specify. As used on a variety of Bristol's, Pearson's, and Sabre's.



RR54-B8-4A
Gooseneck Tack Bolt - 1/2" x 4 1/2": K-19108-4.5:

Gooseneck Tack Bolt - 1/2" x 4 1/2" with Tack Shackle: K-19108-4.5S:
SS Gooseneck Tack Bolt is 1/2" diameter x 4 1/2" long (under head). Bolt with welded Bushing is (maximum) 11/16" wide with 5/16" hole for shackle, 1 1/4" long thread and includes 1/2" Locknut. Maximum Grip Length is 4 1/8". As RR 54-B8-4A, above, but without the welded Reef Hooks. Also available with Wichard 8mm self-locking Tack Shackle. This item is stocked in other lengths, and is also available on a custom basis with other bolt lengths, See Gooseneck Tack Assemblies with Bolt.





SS Reef Hook/Tack Ass'y with 5/8" Vertical Bolt: RR 54-B10-6A:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 5/8" Vertical Gooseneck Bolt. Dual Reef Hooks are formed from 7/16" rod, Assembly is (maximum) 5 1/8" wide x 10" high, and includes captive 3/8" SS Tack Pin. Bolt is 6 3/8" long (under head) for use with Gooseneck Brackets and slides with a 5/8" Vertical Pin hole and a maximum 5 1/2" bracket height. This item is also available on a custom basis with other bolt lengths, please specify.





SS Reef Hook/Tack Ass'y for 5/8" Vertical Bolt: PP 54-23S:
Stainless Steel Reef Hook/Tack Assembly mounts under head of 5/8" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 3 1/4" wide (at top), 1 3/8" wide (at bottom), 3" high, and has 1" clearance for Tack. Assembly is formed from 1" x 3/16" SS Strap and includes 1/2" SS Tack pin.





SS Reef Hook/Tack Ass'y for 5/8" Vertical Bolt: K-2166-1A:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly mounts under head of 5/8" Vertical Gooseneck Bolt. Dual Reef Hook Assembly is 4 1/2" wide (at top), 1 3/8" wide (at bottom), 3" high, and has 1" clearance for Tack. Heavy welded Assembly features (2) 3/8" Reef Hooks and includes 3/8" SS Tack Fastpin. Base (where bolt goes through) is 3/4" thick. As used on J/40.




K-2166-1A
SS Tack Ass'y for 5/8" Vertical Bolt: K-2166A:

Heavy-duty Stainless Steel Tack Assembly mounts under head of 5/8" Vertical Gooseneck Bolt. Assembly is 1 1/2" (fore & aft) x 1 3/8" wide x 3" high, and has 1" clearance for Tack. Heavy welded Assembly features includes 3/8" SS Tack Fastpin. Base (where bolt goes through) is 3/4" thick. As K-2166-1A, above, but without Reef Hooks.




SS Reef Hook/Tack Ass'y with 3/4" Vertical Bolt: K-11873RA:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 3/4" Vertical Gooseneck Bolt. Dual Reef Hooks are formed from 7/16" rod, Assembly is (maximum) 6" wide x 11" high, and includes 1/2" SS Tack Fastpin. Bolt is 6 3/4" long (under head) for use with Gooseneck Brackets and slides with a 3/4" Vertical Pin hole and a maximum 6" bracket height. This item is also available on a custom basis with other bolt lengths, please specify.



Gooseneck Tack Bolt - 3/4" x 6 3/4" with Tack Pin: K-11873:
SS Gooseneck Tack Bolt is 3/4" diameter and incorporates welded Tack Bracket with 1 1/4" ID. Unit is (maximum) 9 1/4" high x 1 5/8" wide and includes 1/2" SS Tack Pin and Locknut. Bolt is 6 3/4" long (under head) for use with Gooseneck Brackets and slides with a 3/4" Vertical Pin hole and a maximum 6" bracket height. As K-11873RA, above, but without Reef Hooks. This item is also available on a custom basis with other bolt lengths, See Gooseneck Tack Assemblies with Bolt.




SS Reef Hook/Tack Ass'y with 7/8" Vertical Bolt: RR 54-B14-475A:
Heavy-duty Stainless Steel Reef Hook/Tack Assembly incorporates 7/8" Vertical Gooseneck Bolt. Dual Reef Hooks are formed from 1/2" rod, Assembly is (maximum) 4 3/4" wide x 9 1/4" high, and includes 7/16" SS Tack fastpin. Bolt is 5 1/2" long (under head) for use with Gooseneck Brackets and slides with a 7/8" Vertical Pin hole and a maximum 4 3/4" bracket height. This item is also available on a custom basis with other bolt lengths, please specify.




Special Reef Hooks
Reef Hooks w/ 1/2" Vertical Gooseneck Bolt: PP 54-3300-1S:
Special Reef Hook Assembly incorporates 2 Reef Hooks with a 1/2" Vertical Gooseneck Bolt. Welded SS Assembly features retaining tab to lock it into Special SS Toggle, PP 45-145SS, so Reef Hooks are always in line with the Boom. Assembly is (maximum) 6 1/2" high x 3" wide, 1/2" bolt is 3 1/8" long beneath 3/4" wide retaining tab and includes SS Locknut. As used on original Schaefer Spars, Pearson 365, and a variety of larger Pearson's. #



PP 54-3300-1S

Weld-on Reef Hooks
We use these Weld-on Reef Hooks in various standard assemblies, but they are useful in numerous Custom applications as well.

Weld-on Reef Hook - 1/4": K-10476:

Simple Weld-on Reef Hook is made from 1/4" Stainless Steel Rod. Formed 1/4" Hook is (maximum) 2" high x 1 1/8" wide. As used on K-10518-series Gooseneck Toggle/Tack Assemblies, and in other applications.




Weld-on Reef Hook - 5/16": K-10344:

Simple Weld-on Reef Hook is made from 5/16" Stainless Steel Rod. Formed 5/16" Hook is (maximum) 2 5/8" high x 1 5/8" wide. As used on K-10345-series Gooseneck Toggle/Tack Assemblies, and in other applications.




Weld-on Reef Hook - 3/8": K-11715:

Simple Weld-on Reef Hook is made from 3/8" Stainless Steel Rod. Formed 3/8" Hook is (maximum) 2 1/2" high x 1 5/8" wide. As used on K-2166A-1 Tack Ass'y w/ Reef Hooks, and in other applications.




Weld-on Reef Hook - 7/16": K-10791:

Simple Weld-on Reef Hook is made from 7/16" Stainless Steel Rod. Formed 7/16" Hook is (maximum) 3 3/4" high x 2 1/2" wide. As used on K-10702-series Gooseneck Toggle/Tack Assemblies, and in other applications.
