Spars, Rigging, and Hardware for Sailboats

Rig-Rite, Inc.
Phone: (001) 401-739-1140 -- FAX: (001) 401-739-1149
www.RigRite.com         Spartan Ordering/Questions

Spartan Spars CD-1 Boom Section


Spartan Spars CD-1 Boom
Measurements: (OD) 2.75" x 1.75"
Wall Thickness: .095"
Weight/ft.: 0.89 lbs.
Moments of inertia: Ixx = .500", Iyy = .250"
Circumference: 7 3/16"
Alloy: 6061-T6
Standard Lengths: 8'10", 10'1", 11', 22'
Sail slides: 1/2" round slugs (A018, A118) or 1/2" boltrope

Common Boom usage: Cape Dory Typhoon Weekender (WE), Cape Dory Typhoon Day Sailer (DS);
CD-1 Boom Section

Spartan CD-1 Boom Section
CD-1 Boom Section - Clear Anodized: SP-CD1CA-___:
Spartan CD-1 Section Boom Tube is stocked in a variety of lengths (listed above) fully anodized, it can also be cut to shorter lengths. To order, specify length.
Sections can also be milled for the sail entrance or other components if necessary, painted finishes and other lengths are available on special order, Please specify. If you require a complete Boom Assembly, you can select from components below and contact us with specifications.


CD-1 Standard Boom Hardware
Listed below are parts specific to the Spartan CD-1 Boom Section. There are many parts for specific configurations that are not listed here. If you require CD-1 Section Boom Components not listed here please contact us with details. Please note: As principal dimensions of the Spartan Spar CD-1 Section are equivalent to those of Kenyon Spar's B-Section, all Kenyon B-Section Boom Components will also fit the CD-1 Boom Section.
All Aluminum Castings listed below are carefully hand finished and coated with a baked-on Black Epoxy (to retard corrosion) as Standard. Castings are available Clear Anodized at additional cost, add CA to part number.


CD-1 Gooseneck Assemblies & Parts
CD-1 Gooseneck Ass'y Complete w/ 1/2" Slide: SP-031FS:

Heavy-duty cast aluminum Gooseneck End incorporates a 1/4" tack pin and includes fixed SS yolk, 3/4" SS Toggle, K-9267, and SS Gooseneck Slide, SP-032. Fits CD-2, CD-3, and all mast sections using 3/8" or larger round slugs or boltrope. p



SP-031FS
CD-1 Gooseneck Ass'y w/ Tack & 3/4" Toggle: SP-031F:
As SP-031FS (above), but without SS Gooseneck Slide, SP-032. Toggle attaches directly to any gooseneck brackets designed for a 3/4" Toggle with 1/4" Pin (see individual mast sections), as well as the SP-032, and other gooseneck slides designed for 3/4" Toggles.



  CD-1 Gooseneck Casting w/ Tack: SP-031C:

Black Epoxy coated Gooseneck casting with tack pin only, as used in the assemblies listed above. p
SP-031C
SS Gooseneck Slide: SP-032:

New Heavy-duty reinforced SS Gooseneck Slide accepts 3/4" SS Toggle, K-9267, and has a welded ring for downhaul attachment. Includes 1/4" vertical pin. Fits Spartan CD-1, CD-2, CD-3, and all mast sections using 1/2" round slugs or boltrope. K-9138 p



SP-032
SS Gooseneck Toggle - 3/4": K-9267:

SS Gooseneck Toggle attaches directly to gooseneck brackets or gooseneck slides designed for a 3/4" toggle, and to any boom end casting using the K-79 or K8700A SS yoke assemblies. Toggle is 3/4" square x 7/8" long with 1/4" holes at 90 degrees to each other on 3/8" centers. p



K-9267
SS Yoke Ass'y for 3/4" Toggle: K-79A:
SS yoke attaches to Gooseneck Casting using a 1/4" bolt, locknut, and 1" OD washer. Yoke is formed from 5/8" wide stock and is 1" wide (outside), and 13/16" wide (inside), 1/4" hole centers are 11/16" from bottom inside. 3/4" SS Toggle, K-9267, is attached with a 1/4" SS bolt and locknut (included).



CD-1 Roller Reefing Gooseneck Ass'y w/ 1/2" Slide: SP-031RS:

Heavy-duty cast aluminum Gooseneck End incorporates a SS spring loaded Roller Reefing assembly and 1/2" Slide. Spring-loaded roller-reefing mechanism works by pulling aft on the boom and turning it in 1/2 turn increments. SS yoke assembly is fixed in a rectangular recess until boom is pulled aft. SS Spring locks yoke into recess when boom is released. Works only with end-boom sheeting systems with swiveling mainsheet and topping lift attachments. Cast aluminum boom end fitting includes captive 1/4" SS tack pin and SS Roller-Reefing yoke assembly with 3/4" SS Toggle and SS gooseneck Slide, SP-032. Fits all mast sections using 3/8" or larger round slugs or boltrope. p



SP-031RS





CD-1 Roller-Reefing Gooseneck Ass'y w/ 3/4" Toggle: SP-031R:
As SP-031RS (above), but without SS Gooseneck slide, SP-032. Toggle attaches directly to any gooseneck brackets designed for a 3/4" Toggle with a 1/4" Pin (see individual mast sections), as well as the SP-032, and other gooseneck slides. Roller-Reefing mechanism requires use of Outhaul End with pivoting tangs, SP-033-2, or similar.



CD-1 Gooseneck Casting with Tack: SP-031C:

Black Epoxy coated Gooseneck casting with tack pin only, as used in the assemblies listed above. p
SP-031C
SS Gooseneck Slide: SP-032:

New Heavy-duty reinforced SS Gooseneck Slide accepts 3/4" SS Toggle, K-9267, and has a welded ring for downhaul attachment. Includes 1/4" vertical pin. Fits Spartan CD-1, CD-2, CD-3, and all mast sections using 1/2" round slugs or boltrope. K-9138A p



SP-032
SS Gooseneck Toggle - 3/4": K-9267:

SS Gooseneck Toggle attaches directly to gooseneck brackets or gooseneck slides designed for a 3/4" toggle, and to any boom end casting using the K-79 or K8700A SS yoke assemblies. Toggle is 3/4" square x 7/8" long with 1/4" holes at 90 degrees to each other on 3/8" centers. p



K-9267
SS Roller-Reefing Yoke Ass'y for 3/4" Toggle: K-8700A:

SS spring-loaded roller-reefing yoke assembly for use with boom end castings that have a 3/8" hole centered in a 1" x 3/4" rectangular recess. Attaches to 3/4" SS Toggle, K-9267, with a 1/4" SS bolt and locknut (included). Post is 3/8" diameter x 3" long. Includes SS Spring, (2) SS washers, and cotter pin. p



K-8700A






CD-1 Outhaul Assemblies & Parts
CD-1 Outhaul Casting: SP-033:

Heavy-duty Black Epoxy coated cast aluminum Outhaul End has tab with 2 holes for outhaul, and/or topping lift attachment. p



SP-033
CD-1 Outhaul Ass'y w/ One Tang: SP-033-1:

Heavy-duty cast aluminum Outhaul End with attachment points for outhaul and topping lift. Includes single pivoting tang for mainsheet or topping lift attachment. p
SP-033-1
CD-1 Outhaul Ass'y w/ Two Tangs: SP-033-2:

Heavy-duty cast aluminum Outhaul End with attachment points for outhaul and topping lift. Includes two pivoting tangs for mainsheet and topping lift attachment. For use with roller reefing gooseneck, SP-031R. p



SP-033-2
Mainsheet Tang for CD-1 Boom: K-359:

Flat Mainsheet Tang attaches to Boom end casting using a 3/8" bolt. For use with Spartan CD-1, Kenyon B-Section, and similar sized booms. Mainsheet Tang is 3 1/2" long x 1" wide x .076" thick with (1) 3/8" mounting hole and (1) 5/8" hole for attachment of Mainsheet block. Hole centers are 2 1/2" apart.   SP-260 Sch 85-70




CD-1 Boom Accessories
Outhaul Slides
A variety of Outhaul Slides are available to fit the 1/2" Boltrope groove in the CD-1 Boom Section. See Outhaul Slides for 1/2" Boltrope Groove.



Boom Bail - 1/2" Strap x 2 1/2" long: K-291A:

SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 1/2" wide x 1/16" thick, and 2 1/2" long. Fastens with (4) 3/16" (#10) fasteners.



K-291A
Boom Bail - 1/2" Strap x 3 1/2" long: K-291B:

SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 1/2" wide x 1/16" thick, and 3 1/2" long. Fastens with (4) 3/16" (#10) fasteners.



K-291B
Boom Bail - 1/4" x 1 3/4" wide: K-S9001:

SS Boom Bail made from 1/2" x 1/16" strap is designed to be attached with (1) 1/4" SS bolt and nut. Formed at 1 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 2 1/2". For use with CD-1 Boom. p



K-S9001
Boom Bail Bolt Ass'y - 1/4" for CD-1 Boom: K-S9001BA:

Boom Bail bolt assembly includes 1/4" SS bolt x 2 1/4", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.



Boom Vang Ball Attachment Plate for CD-1 Boom: K-2182:

Formed SS plate for attachment of Boom Vang with 1/8" wire swage ball. Allows for quick attachment and removal of Boom Vang, raised channel design allows easy installation without milling slot in boom. Channel projects approximately 3/8" from underside of Boom when installed. Formed Stainless Steel plate is 2" long x 1 7/8" high. Fastens with (6) 3/16" (#10) screws or rivets.



Boom Vang Wire Pennant w/ Swage Ball: K-2182WP:

Wire Pennant for attachment of Boom Vang to Boom Vang Ball Attachment Plate. Pennant is 1/8" wire with swage ball and shank (MS20664-4) on one end and a nicopress and thimble on the other. Thimble allows attachment of any upper Vang block. Assembly is 6" long. Ball is suitable for all Ball Attachment Plates with a slot that is 1/4" wide or less.

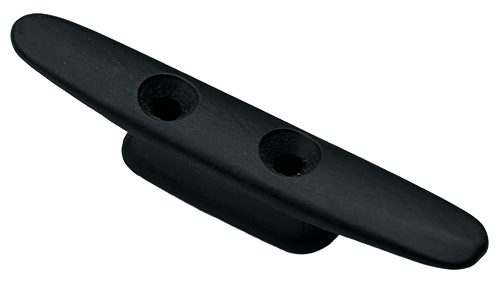

Spar Cleat - 3" long: SP-032C:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 1/4" diameter. Black Epoxy Cleat is 3" long, and fastens to spar with (2) 5/32" (#8) FH screws on 13/16" centers.



Spar Cleat - 4" long: D-10324:

Cast Aluminum Open Base Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 3/8" diameter. Black Epoxy Cleat is 4" long, and fastens to spar with (2) 3/16" (#10) FH screws on 1" centers.



Cheek Block w/ Curved Base: K-140X:

Cheek Block with curved base is used on smaller Booms for Outhaul and Reef lines. SS Cheek Block has 1 1/16" OD Delrin Sheave suitable for use with line up to 3/8" diameter. Base is 3 3/16" long x 7/8" wide, and fastens to spar with (4) 3/16" (#10) RH screws on 2 11/16" (horizontal) and 1/2" (vertical) centers.
