Isomat/ Sparcraft Vang Brackets & Toggles


A variety of Vang Brackets are used on Isomat and Sparcraft Masts, depending on the size of the Mast Section and the type of Vang. Standard Toggles for use with Isomat Isovangs and Sparcraft Pneuvang are available, we also manufacture a range of Toggles for use with Vangs from other manufacturers. To select an appropriate Vang Bracket Assembly, or Toggle to fit an existing Bracket, first determine which Mast Section you have, and, for a Hard Vang, the Pin size.

Vang Brackets for Booms are specific to the Boom Section, See: Isomat Boom Sections, and Sparcraft Boom Sections.

NG1 Vang Brackets - NG1 Vang Brackets use a 12mm Pin.
NG1 Vang Toggles

NG2 Vang Brackets - NG2/ FM2 Vang Brackets use a 14mm Pin.
NG2 Vang Toggles

NG3 Vang Brackets - NG3 Vang Brackets use a 16mm Pin.
NG3 Vang Toggles



NG1 Vang Brackets & Fittings
NG1 Gooseneck/ Vang Brackets use a 12mm Pin, and are used with a variety of Isomat and Sparcraft Mast Sections. For Hard (solid) Vangs select a Bracket Assembly or Toggle with the same Pin Size as the Vang being used. For Soft (block and tackle) Vangs use the NG1-16A Assembly or NG1-16 Toggle, as it will accommodate most any shackle. If the combination you require is not listed, select the appropriate Vang Bracket, Vertical Pin, and any of the NG1 Vang Toggles listed below.

NG1 Vang Bracket for 12mm Pin: NG1-11:

Cast aluminum Vang Bracket is used on Isomat Mast Sections through NG-51, and a variety of Sparcraft Mast Sections. Bracket is 3 7/8" (98mm) high x 2 3/4" (70mm) wide, and is fastened with four (4) 1/4" (6mm) rivets. Bracket has holes for 12mm (7/16") Vertical Toggle Pin NB1-1, and is suitable for use with any of the NG1 Vang Toggles listed below.



NG1 Narrow Vang Bracket for 12mm Pin: NG1-11N:

Cast aluminum Gooseneck/Vang Bracket is used on Sparcraft FM Mast Sections through FM-101. Bracket is 3 7/8" (98mm) high x 1 15/16" (49mm) wide, and is fastened with four (4) 1/4" (6mm) rivets. Bracket has holes for 12mm (7/16") Vertical Toggle Pin NB1-1, and is suitable for use with any of the NG1 Vang Toggles listed below.




NG1 Vang Bracket for Furling Mast: NG1-11F:

Cast aluminum Gooseneck Bracket is used on I-265E, I-365E, and F-560E Furling Masts. Bracket is 3 7/8" (98mm) high x 3 9/16" (90mm) wide, and is fastened with four (4) 1/4" (6mm) rivets. Bracket has holes for 12mm (7/16") Vertical Toggle Pin NB1-1, and is suitable for use with any of the NG1 Vang Toggles listed below. *Note that Bracket is commonly drilled for use with six (6) rivets, locating indents are provided.



NG1 Vang Toggle Pin: NB1-1:

SS Clevis pin is 12mm (7/16") diameter with a 85mm (3 3/8") grip length, and has 8mm (5/16") hole for Cotter Ring or Block attachment. Fits vertically in any of the NG1-11 Vang Brackets.




NG1 Vang Bracket w/ Toggle for Rope Vang: NG1-16A:

Complete NG1 Vang Bracket Assembly has Toggle with Slot for attachment of Rope (soft) Vang. Assembly consists of Vang Bracket (NG1-11), Vang Toggle Pin (NB1-1), and NG1-16 Vang Toggle with 3/8" x 7/8" (10mm x 22mm) Slot. Assembly is fastened to Mast with four (4) 1/4" (6mm) rivets or screws. Toggle can be replaced with any listed below for later conversion to a Hard (solid) Vang.



NG1 Vang Bracket w/ Toggle for 3/8" (10mm) Pin: NG1-17A-10:

NG1 Vang Bracket w/ Toggle for 1/2" (12mm) Pin: NG1-17A-12:

NG1 Vang Bracket w/ Toggle for 9/16" (14mm) Pin: NG1-17A-14:

NG1 Vang Bracket w/ Toggle for 5/8" (16mm) Pin: NG1-17A-16:

Complete NG1 Vang Bracket Assembly with Toggle for Vang is available in various Pin sizes. Assembly consists of Vang Bracket NG1-11, Vang Toggle Pin NB1-1, and one of the NG1-17 Vang Toggles. Assembly is fastened to Mast with four (4) 1/4" (6mm) rivets or screws.








NG1 Vang Bracket w/ Toggle for 14mm Pin: NG1-18-14A:

As NG1-17A, above, but with NG1-18-14D Vang Toggle with 14mm (9/16"), and 8mm (5/16") holes. As used with Sparcraft Pneuvang and others.



NG1-18-9D
NG1 Vang Bracket w/ Toggle for 22mm Pin: NG1-19A:
As NG1-17A, above, but with NG1-19 Vang Toggle with 22mm (7/8") hole. For use with the NG2 Isovang. Also recommended for use with Soft (block and tackle) Vangs, as the large hole will accommodate any shackle.







NG1 Vang Toggles
NG1 Vang Toggles use a 12mm Vertical Pin. A variety of Vang Toggles for use with NG1-11 Brackets are listed below.

NG1 Vang Toggle w/ Slot for Rope Vang: NG1-16:

SS Welded Vang Toggle with Slot for attachment of Block or Shackle fits NG1-11 Vang Brackets. SS tube is 1 15/16" (50mm) long and is drilled for 12mm Vertical Pin, NB1-1. Welded SS Tab has Slot (3/8" x 7/8") suitable for attachment of most any shackle. Heavy-duty Tab is 7mm (.280") thick and projects 2" (50mm) out from tube.





Old-style NG1 Vang Toggle w/ Slot for Rope Vang: NG1-16X:
Cast SS Vang Toggle with Slot for attachment of Block or Shackle fits Old-style NG1-11-2X Vang Bracket Tabs. Investment Cast SS Tab has Slot (3/8" x 7/8") suitable for attachment of most any shackle. Toggle has integral 10mm Shaft, 86mm (2 9/16") long, Tab is 7mm (.280") thick and projects 2" (50mm) out from Shaft.





NG1 Vang Toggle w/ 3/8" (10mm) hole: NG1-17-10:

NG1 Vang Toggle w/ 1/2" (12mm) hole: NG1-17-12:

NG1 Vang Toggle w/ 9/16" (12mm) hole: NG1-17-14:

NG1 Vang Toggle w/ 5/8" (16mm) hole: NG1-17-16:

SS Welded Vang Toggle Fits NG1-11 Vang Brackets and is available in various Pin sizes. SS tube is 1 15/16" (50mm) long, welded Tab is 3/16" (5mm) thick, Pin hole is 2" from tube center.

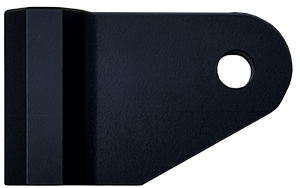

NG1 Vang Toggle w/ 3/8" hole for QuikVang A: HSV 45-12M12:
Machined Aluminum Vang Toggle Fits NG1-11 Vang Brackets. Unit is 1 7/8" (48mm) long and is drilled for 12mm Vertical Pin, NB1-1. Tab is 3/8" thick, 3/8" hole is 2" from vertical hole. As used with the Hall Spars 'A' QuikVang and others.



NG1 Vang Toggle w/ 10mm & 8mm holes: NG1-18-10D:

SS Welded Vang Toggle Fits NG1-11 Vang Brackets. SS tube is 1 15/16" (50mm) long and is drilled for 12mm Vertical Pin. Welded SS Tab is 5mm (3/16") thick and projects 2 3/8" (60mm) out from tube. Tab has reinforced 10mm (3/8") hole for attachment of Vang and 8mm (5/16") hole for attachment of Vang Tackle. As used with NG1 Isovang and others. As used on J/92, and others.







NG1 Vang Toggle w/ 14mm & 8mm holes: NG1-18-14D:

SS Welded Vang Toggle Fits NG1-11 Vang Brackets. SS tube is 1 15/16" (50mm) long and is drilled for 12mm Vertical Pin. Welded SS Tab is 5mm (3/16") thick and projects 2 3/8" (60mm) out from tube. Tab has 14mm (9/16") hole for attachment of Vang and 8mm (5/16") hole for attachment of Vang Tackle. As used with Sparcraft Pneuvang on Catalina 320, and others.



NG1-18-9D

NG1 Vang Toggle w/ 14mm & 8mm holes: NG1-18-144:

SS Welded Vang Toggle Fits NG1-11 Vang Brackets. SS tube is 1 15/16" (50mm) long and is drilled for 12mm Vertical Pin. Welded SS Tab is 5mm (3/16") thick and projects 2 1/8" (60mm) out from tube. Tab has (1) 14mm (9/16") hole for Vang attachment and (3) 8mm (5/16") holes for blocks. As used with Sparcraft Pneuvang and others.



NG1 Vang Toggle w/ 7/8" (22mm) hole: NG1-19:

SS Welded Vang Toggle Fits NG1-11 Vang Brackets. SS tube is 1 15/16" (50mm) long and is drilled for 12mm Vertical Pin, NB1-1. Welded SS Tab is 5.5mm (7/32") thick and projects 2 1/2" (65mm) out from tube. Tab has 7/8" (22mm) hole for attachment of Vang. For use with the NG2 Isovang. Also recommended for use with Soft (block and tackle) Vangs.








Vang Toggle For Kenyon Mast Bracket: K-10963-2:

SS Welded Vang Toggle Used with the K-11239 and other Kenyon Gooseneck Brackets with a 3/8" Vertical Pin, this SS toggle has (1) 14mm (9/16") hole for Vang attachment and an 8mm (5/16") hole for block or shackle. SS tube is 1 1/2" (38mm) long, welded SS Tab is 5mm (3/16") thick and projects 2 3/8" (60mm) out from tube. As used with Sparcraft Pneuvang and others.



NG1-18-9D

Vang Toggle For Kenyon Mast Bracket: K-11788:

Used with the K-11239 and other Kenyon Gooseneck Brackets with a 3/8" Vertical Pin, this SS toggle has (1) 14mm (9/16") hole for Vang attachment and (3) 8mm (5/16") holes for blocks. SS tube is 1 1/2" (38mm) long, welded SS Tab is 3/16" (5mm) thick and projects 2 3/16" (56mm) out from tube. As used with Sparcraft Pneuvang and others.





NG2 / FM2 Vang Brackets & Fittings
NG2 and FM2 Vang Brackets use a 14mm Pin, and are used with a variety of Isomat and Sparcraft Mast Sections. For Hard (solid) Vangs select a Bracket or Toggle with the same Pin Size as the Vang being used. For Soft (block and tackle) Vangs use the Assembly or Toggle with the 7/8" (22mm) hole, as it will accommodate any shackle. If the combination you require is not listed, select the appropriate Vang Bracket, Vertical Pin, and any of the NG2 Vang Toggles listed below.



NG2 Vang Bracket: NG2-12:

Cast aluminum Vang Bracket is used on NG-51 and larger Isomat Mast Sections, and a variety of Sparcraft Mast Sections. Bracket is 4 3/4" (120mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 1/4" (6mm) rivets. Bracket has 22mm (7/8") hole at top and 14mm (9/16") hole on bottom side, for use with the NG2-14A Vertical Vang Toggle Pin Assembly, and any of the NG2 Vang Toggles listed below.




NG2 Vang Toggle Pin Ass'y: NG2-14A:

Assembly converts NG-2 Vang Bracket, NG2-12, for use with any of the NG2 Vang Toggles listed below. Includes Vang Toggle Pin NG2-14, Vang Bushing NG2-13, and SS Cotter Ring.



NG2 Vang Toggle Pin: NG2-14:

SS Clevis Pin is 14mm (9/16") diameter with a 125mm (5") grip length, and has 8mm (5/16") hole for Cotter Ring or Block attachment. Fits vertically in FM2-11, and NG2-12 Vang Brackets.



NG2 Vang Bushing: NG2-13:

SS Bushing is used in upper hole of NG2-12 Vang Bracket to adapt it for use with Vang Toggle Pin NG2-14. Bushing is 22mm (7/8") OD x 14mm (9/16") ID x 16mm (5/8") long.




NG2 Vang Bracket w/ Toggle for 1/2" Pin: NG2-17A-12:

NG2 Vang Bracket w/ Toggle for 5/8" Pin: NG2-17A-16:

Complete NG2 Vang Bracket Assembly with Toggle for Vang is available in various Pin sizes. Assembly consists of Vang Bracket NG2-12, Vang Toggle Pin Assembly NG2-14A, and one of the NG2-17 Vang Toggles. Assembly is fastened to Mast with eight (8) 1/4" (6mm) rivets or screws.






NG2 Vang Bracket w/ 22mm (7/8") Toggle: NG2-19A:

Complete NG2 Vang Bracket Assembly with Toggle for Vang with 22mm (7/8") Pin. Assembly consists of Vang Bracket NG2-12, Vang Toggle Pin Assembly NG2-14A, and NG2-19 Vang Toggle with 22mm (7/8") hole. Assembly is fastened to Mast with eight (8) 1/4" (6mm) rivets or screws. For use with the NG2 Isovang. Also recommended for use with Soft (block and tackle) Vangs, as the large hole will accommodate any shackle.



NG2 Vang Bracket w/ 1/2" Toggle - Special for Forespar Yacht Rod: NG2-18AF:
Complete NG2 Vang Bracket Assembly with Special Toggle for Forespar Yacht Rod - Medium Vang with 1/2" Pin. Assembly consists of Vang Bracket NG2-12-8, Vang Toggle Pin Assembly NG2-14-8FA, and NG2-18F Vang Toggle with 1/2" hole. Assembly is fastened to Mast with eight (8) 1/4" (6mm) rivets or screws.





FM2 Gooseneck/Vang Bracket for 14mm Pin: FM2-11:

Extruded aluminum Gooseneck/Vang Bracket is used on FM-195 and larger Sparcraft FM Mast Sections. Bracket is 4 3/8" (112mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 3/16" (5mm) rivets and (2) 6mm FH screws. *Note that fastener holes are commonly drilled out for use w/ 1/4" rivets. Bracket has holes for 14mm (9/16") Vertical Toggle Pin FB2-1BA, and is suitable for use with any of the NG2 Vang Toggles listed below.

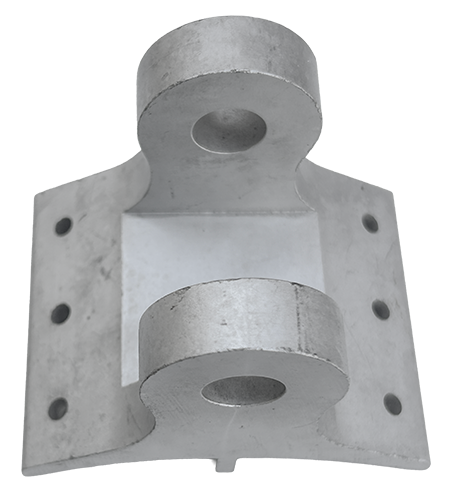

FM2 Gooseneck/Vang Bracket, Short for 14mm Pin: FM2-11S:
Short Extruded aluminum Gooseneck/Vang Bracket is used on a variety of Sparcraft FM Mast Sections. (largely FM-305 & FM-460) for use w/ Short Toggles up to 42mm high that use a 14mm Pin. Short Bracket is 2 3/4" (70mm) high x 3 1/2" (90mm) wide & is fastened w/ six (6) 3/16" (5mm) rivets on 23mm (7/8") centers. *Note that fastener holes are commonly drilled out for use w/ 1/4" rivets. 42.7mm Max Toggle clearance.



FM2 Vang Bracket for 14mm Pin w/ 'T': FM2-11T:

Extruded aluminum Gooseneck/Vang Bracket is used on FM-580 and larger Sparcraft FM Mast Sections. Bracket is 4 3/8" (112mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 3/16" (5mm) rivets and (2) 1/4" (6mm) FH screws. *Note that fastener holes are commonly drilled out for use w/ 1/4" (6mm) rivets. FM2-11T Bracket is as FM2-11, but with an integral 'T' on the back side (24mm (15/16") wide), requiring that the Mast be down for installation. Bracket has holes for 14mm (9/16") Vertical Toggle Pin FB2-1BA, and is suitable for use with any of the NG2 Vang Toggles listed below.

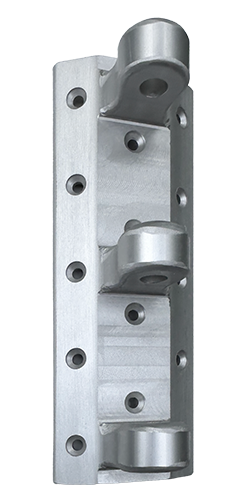

FM2 Vang Bracket - Double for 14mm Pin w/ 'T': FM2-11TD:
Extruded aluminum DOUBLE Gooseneck Bracket is as FM2-11T, above, but designed for Two (2) Toggles. Used on a variety of FM Mast Sections FM-580 and larger Sparcraft FM Mast Sections up to FM2390, with FB220 & larger Booms. Bracket is 9 3/4" (247mm) high x 3 1/2" (90mm) wide, and is fastened with ten (10) 6mm FH screws on 50mm centers & an additional four (4) going straight through the Track. Bracket has a 14mm (9/16") hole for use with special long 14mm Bolt, and FB2-412, FB2-414 or other Gooseneck or Vang Toggles up to 75mm high as well as any of the NG2 Vang Toggles listed below. Integral 'T' requires Mast be unstepped for installation.



FM2 Vang Bracket, Furling Mast - 14mm Pin: FM2-11F:

Extruded aluminum FM2 Gooseneck/Vang Bracket is used on F-560E and larger Sparcraft Furling Mast Sections. Bracket is 4 3/8" (112mm) high x 3 7/16" (88mm) wide, and is fastened with ten (10) 1/4" (6mm) rivets. Bracket has holes for 14mm (9/16") Vertical Toggle Pin FB2-1BA, and is suitable for use with any of the NG2 Vang Toggles listed below.




FB2 Vertical Gooseneck/Vang Toggle Pin: FB2-1BA:

14mm Vertical Toggle Pin assembly includes SS Locknut and washers. SS Gooseneck Pin is 14mm (9/16") diameter x 135mm (5 3/8") long (under head), and threaded on the bottom.




NG2 Vang Toggles
NG2 Vang Toggles use a 14mm Vertical Pin. A variety of Vang Toggles for use with the NG2-12 and FM2-11 Brackets are listed below.

NG2 Vang Toggle w/ hole for 1/2" Pin: NG2-17-12:

NG2 Vang Toggle w/ hole for 5/8" Pin: NG2-17-16:

SS Welded Vang Toggle Fits FM2-11, and NG2-12 Vang Brackets, and is available in various Pin sizes. SS tube is 2 5/8" (67mm) long with hole for a 14mm Pin, welded Tab is 1/4" (6.3mm) thick, Pin hole is 2 1/2" from tube center. Toggle for 1/2" Pin is used with NG1 Isovang.

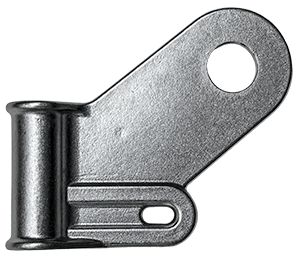

NG2 Vang Toggle w/ hole for 22mm Pin: NG2-19:

SS Welded Vang Toggle Fits FM2-11 and NG2-12 Vang Brackets. SS tube is 2 5/8" (67mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 5.5mm (7/32") thick and projects 4" (100mm) out from tube. Tab has 22mm (7/8") hole for attachment of NG2 Isovang.




NG2 Vang Toggle w/ 1/2" hole - Special for Forespar Yacht Rod: NG2-18F:
Special Welded Vang Toggle Fits NG2-12-8 Vang Bracket. SS tube is 2 5/8" (67mm) long and is drilled for 1/2" Vertical Pin, NG2-14F. Welded SS Tab is 5.5mm (7/32") thick and projects 2 1/2" (65mm) out from tube. Tab has 1/2" (12mm) hole for attachment of Vang, and (2) 3/8" holes for attachment of Yacht Rod purchase. MMM




NG2 Vang Toggle w/ Slot & hole for 14mm Pin: NG2-18S:

SS Welded Vang Toggle Fits FM2-11 and NG2-12 Vang Brackets. SS tube is 2 3/4" (70mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 5mm (3/16") thick and projects 2 9/16" (65mm) out from tube center. Tab has 14mm (9/16") hole for attachment of Vang, and slot (14mm x 28mm) for attachment of Vang Tackle. As used with Sparcraft Pneuvang and others.




NG2 Vang Toggle w/ hole for 14mm Pin: NG2-18-4P:

SS Welded Vang Toggle Fits FM2-11 and NG2-12 Vang Brackets. SS tube is 2 3/4" (70mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 6mm (1/4") thick and projects 2 9/16" (65mm) out from tube center. Tab has (1) 14mm (9/16") hole for attachment of Vang, and (3) 8mm (5/16") holes for blocks or shackles for attachment of Vang Tackle. As used with Sparcraft Pneuvang and others.





NG3 Vang Brackets & Fittings
NG3 Vang Brackets use a 16mm Pin, and are used with a variety of Isomat and Sparcraft Mast Sections. For Hard (solid) Vangs select a Bracket or Toggle with the same Pin Size as the Vang being used. For Soft (block and tackle) Vangs use the Assembly or Toggle with the largest hole, as it will accommodate any shackle. A variety of Custom Brackets have been produced for larger Mast Sections, See Sparcraft Mast Sections. NG3 Vang Toggles are listed below.



NG3 Vang Bracket for 16mm Pin: NG3-11:

Heavy-duty Cast aluminum Gooseneck/ Vang Bracket fits NG-86, FM-740 and larger Mast Sections. Bracket is 6 7/8" (175mm) high x 4" (100mm) wide, and attaches to mast with twelve (12) 1/4" (6mm) rivets. Bracket has holes for 16mm (5/8") pin, for use with any of the FB3-14 Vertical Pins.





NG3 Vang Toggle Bolt Ass'y: NG3-11BA:

Vertical Vang Bolt Assembly is used to attach various Vang Toggles to NG3-11 Mast Bracket. SS Gooseneck Bolt is 16mm (5/8") diameter x 175mm (6 7/8") long (under head), Assembly includes washers and SS Locknut.



NG3 Vang Toggle Pin Ass'y w/ Ring: NG3-14R:

16mm Vertical Vang Pin Assembly is used to attach various Vang Toggles to NG3-11 Mast Bracket. SS Gooseneck Pin is 16mm (5/8") diameter x 175mm (6 7/8") long (under head), and threaded on the bottom. Assembly with welded 10mm Ring includes washers and 16mm SS Locknut.




NG3 Vang Bracket Ass'y w/ Toggle for 5/8" (16mm) Pin: NG3-17A:
Complete NG3 Vang Bracket Assembly with Toggle for 5/8" (16mm) Pin. Assembly consists of Vang Bracket NG3-11, Vang Toggle Pin Assembly NG3-14R, and NG3-17 Vang Toggle. Assembly is fastened to Mast with twelve (12) 1/4" (6mm) rivets or screws.




NG3 Vang Toggles
NG3 Vang Toggles use a 16mm Vertical Pin. Vang Toggles for use with the NG3-11 Bracket are listed below.

NG3 SS Vang Toggle for 16mm (5/8") Pin: NG3-17:

Heavy-duty SS Welded Vang Toggle Fits NG3-11 Vang Bracket. SS tube is 2 3/4" (70mm) long and is drilled for 16mm Vertical Pin. SS Tab is 8mm (5/16") thick with welded reinforcement bushing (5/8" wide) and projects 2 3/4" (70mm) out from 30mm diameter tube. Tab has 16mm (5/8") hole for attachment of Vang. Also recommended for use with Soft (block and tackle) Vangs, as the large hole will accommodate up to a 5/8" (16mm) shackle.




NG3 Vang Toggle w/ hole for 22mm Pin: NG3-19:

Heavy-duty SS Welded Vang Toggle Fits NG3-11 Gooseneck / Vang Bracket. SS tube is 2 5/8" (67mm) long and is drilled for 16mm Vertical Pin, NG3-14R. Welded SS Tab is 6mm (1/4") thick and projects 4" (100mm) out from tube. Tab has 22mm (7/8") hole for attachment of NG2 Isovang. As used on Beneteau 57, and others.
