Goiot Port Parts


Goiot Port Parts
Goiot Ports and Hatches, made in France, are found on a variety of Yachts built around the world. Their original Cast Aluminum, now "Tradition" series, are among the most respected anywhere. In addition to the Tradition series, Goiot manufactures a wide range of Ports including the Cristal, Opal, and Evolution series in a variety of finishes.





Goiot Ports
Goiot Ports are available in the original cast Tradition series, as well as the Cristal, Opal, and Evolution series.

For complete replacement Ports
See Goiot Ports.




Goiot Port Parts
Common replacement parts for Goiot Ports are listed below.
For parts not listed please contact us with measurements and details.

Tradition Port Parts
Cristal Port Parts
Opal Port Parts
Evolution Port Parts



Tradition Port Parts
Replacement parts for Goiot Tradition Cast Aluminum Ports are listed below.
Note that some of these items have been used on Goiot Original Hatches.
For parts not listed please contact us with measurements and details.



Female Knob for 8mm Stud: Goi PT-KF8:

Black plastic Knob is threaded for standard 8mm Dog stud. Used on a variety of Goiot Tradition Ports and Hatches, fluted Knob is 1 3/4" (44mm) OD x 1" high, threaded for a 8mm stud.



Dog Screw - 8mm: Goi PT-DS8:

Dog Screw has 8mm thread with an 8mm Pin hole. Aluminum Dog Screw is (maximum) 44mm (1 3/4") long. Used on Goiot Tradition Ports.



Dog Screw Pin / Hinge Pin - 8mm: Goi PT-HP8:
Used as Dog Screw Pin and Port Hinge Axle, Black plastic self-locking Hinge Pin is 8mm x 38mm long (5/16" x 1 1/2"). Used on Goiot Tradition Ports.



New-style Hinge Pin Ass'y - 10mm SS: Goi PT-HPA-10:

New-style 10mm self-locking Hinge Pin Assembly is designed for permanence and allows hinge friction to be increased by tightening the nut. Includes (2) SS Flange Bushings, spacer, locknut and 5mm x 40mm screw. Used on newer Goiot Tradition Ports up to 34.18, and the 34.15O Oval Port.



Rubber Hold-open Knob w/ washer: Goi PT-KR:
Rubber Hold-open Knob is mounted on Cabin wall or ceiling and used to hold Ports open. Unit is 38mm OD x 20mm high and is mounted with (1) 5mm screw. Rubber base washer (34mm OD) is included. Used with Round and Larger Goiot Tradition Ports.





Replacement Acrylic Lens, Fly Screen & Gasket for Tradition Ports

 Port #  Lens Size  Notes  Lens (Blue)  Lens (Grey)  Fly Screen  Gasket
 24.11  240x110mm    Goi 99379  Goi 123654  Goi 93992  Goi PT-G8

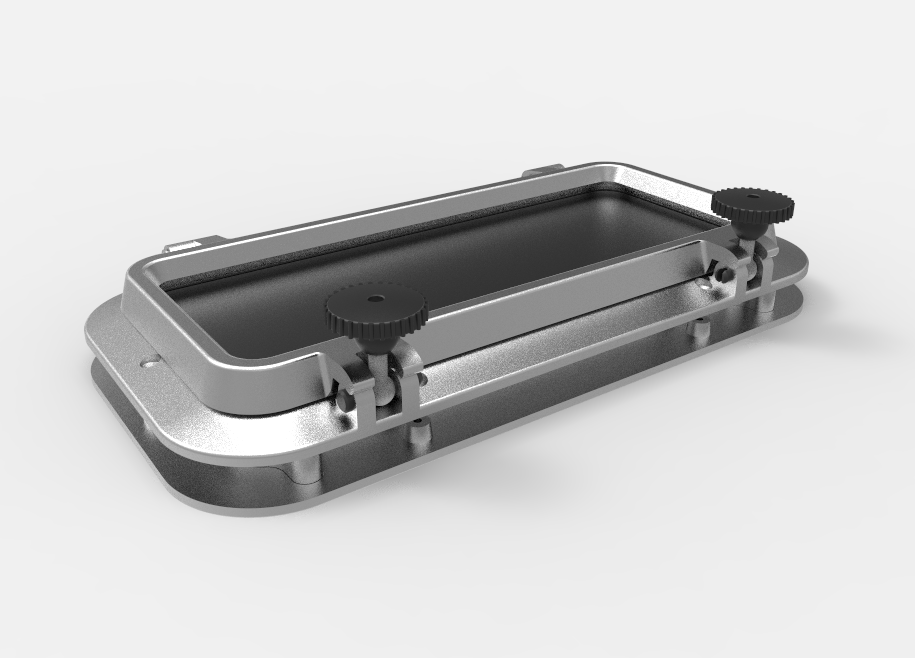

 34.14  339x135mm  Dead light Option  Goi 99454  Goi 123655  Goi 105721
 34.18  340x180mm  .6 DL Option  Goi 99457  Goi 123657  Goi 99705
 44.22  434x216mm
 54.32  512x291mm    Goi 99372X      Goi HT-GL

 34.15O  335x135mm  Oval, .6 DL Opt  Goi 99240  Goi 123656    Goi PT-G8
 13.13C  120mm  Round
 18.18C  165mm  Round, .6 DL Opt
 21.21C  200mm 185  Round, .6 DL Opt  Goi 99375  Goi 123644



Gasket for Goiot Tradition series Ports, per ft.: Goi PT-G8:

Black Neoprene Gasket is used on all but the largest Goiot Tradition series Ports. Round profile Gasket is 8mm (5/16") OD, and is sold by the foot.  R8




Gasket for Large Goiot Tradition Port, per ft.: Goi HT-GL:

Black Neoprene Gasket is only used on the Goiot 54.32 Port, and the Larger Tradition Hatches. Round profile Gasket is 10mm (3/8") OD, and is sold by the foot.  R10




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.  gl 101714





Cristal Port Parts
Replacement parts for Goiot Cristal Cast Aluminum Ports are listed below.
For parts not listed please contact us with measurements and details.


Cristal Port Handle Ass'y: Goi PC-HA:
Gray plastic Handle Assembly is used on all Goiot Cristal Ports. Assembly includes Handle (Goi PC-H), Aluminum Screw Insert and screw.




  Cristal Port Handle: Goi PC-H:

Gray plastic Handle is used on all Goiot Cristal Ports. Handle has smooth sides and requires use of an Aluminum screw insert (below). Handle is 68mm (1 11/16") long x (maximum) 21mm (13/16") wide. Unit is marked P1400.



  Cristal Port Handle - Screw Insert: Goi PC-HSI:

Aluminum Screw Insert is used on all Goiot Cristal Port Handles to adapt Handle to 6mm FH screw.




Cristal Port Handle Seat Latch: Goi PC-L:

Gray plastic Handle Seat Ramp (Latch) is used on all Goiot Cristal Ports. Ribbed Handle Seat is 40mm (1 9/16") wide x 31mm (1 1/4") deep and attaches to Port frame with (2) 6mm FH screws. Unit is marked P1401.



Cristal Port Hinge - Left: Goi PC-Hinge-L:
Cristal Port Hinge - Right: Goi PC-Hinge-R:
Anodized Aluminum Hinges (L&R) are used on all Goiot Cristal Ports. Hinge bracket is 48mm long x 15mm high and attaches to Port frame with (2) 5mm FH screws. Specify Left or Right as viewed from inside.



Hinge Pin Ass'y (Friction Set) - Pair: Goi HC-AS-2:
Self-locking Hinge Pin Assembly (Friction Set) allows hinge friction to be increased by tightening the screw. Unit is 50mm long, and includes Special Allen Head Nut, polymer spacer, and 5mm x 35mm screw. Set (2 pcs.) is used on Goiot Cristal Ports.








Replacement Acrylic Lens, Fly Screen & Gasket for Cristal Ports

 Port #  Lens Size  Notes  Lens (Blue)  Lens (Grey)  Fly Screen  Gasket
 23.10R  240x110mm    Goi 99284  Goi 99430  Goi 99489  Goi PC-G
 33.13R  320x120mm    Goi 99264  Goi 99412  Goi 99511
 43.18R  420x170mm    Goi 99265  Goi 115763  Goi 99548
 40.20R    Nautor Special      Goi 99533
 40.24R    Nautor Special      Goi 99535

 33.13O  320x120mm  Oval  Goi 99250  Goi 99403  Goi 99509
 39.05O  405x65mm  Oval
 43.18O  420x170mm  Oval  Goi 99252  Goi 120708  Goi 99546



Gasket for Goiot Cristal series Ports, per ft.: Goi PC-G:

Black Neoprene Gasket is used on all Goiot Cristal series Ports. Round-top Gasket with flat bottom is 8mm wide x 7mm high, and is sold by the foot.  RT8




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.





Opal Port Parts
Replacement parts for Goiot Opal Extruded Aluminum Ports are listed below.
For parts not listed please contact us with measurements and details.

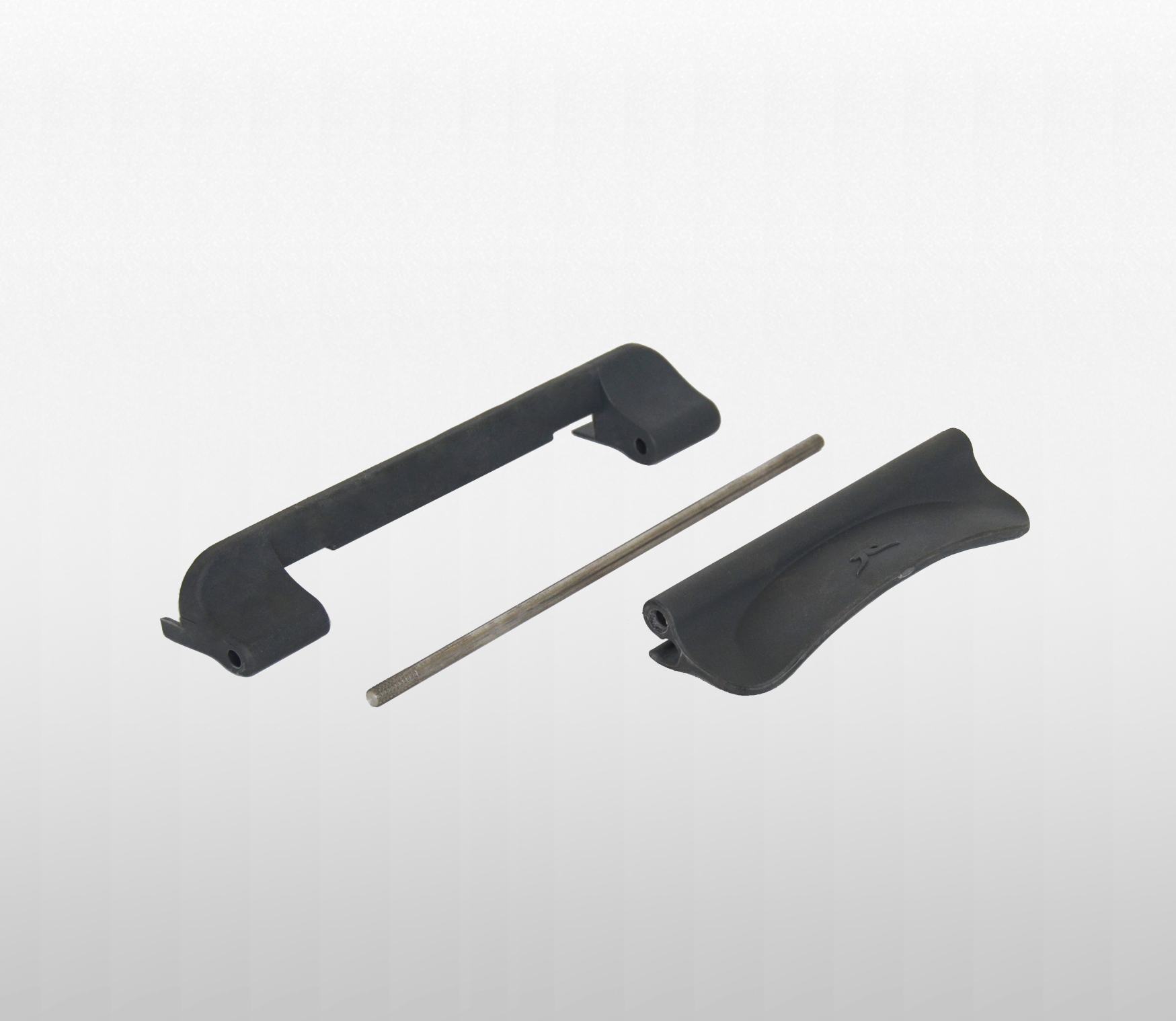

Opal Port Handle Assembly: Goi PO-HA:

Gray plastic Lever-action Handle Assembly is used on all Goiot Opal Ports, T04 Ports use 2 Handles and Hinges. Unit is 180mm long and screws directly to Lens.



  Opal Port Handle: Goi PO-H:

Gray plastic Lever-action Handle (movable portion only) is used on all Goiot Opal Ports, T04 Ports use 2 Handles and Hinges. Unit is 120mm long and attaches to Handle Base with 5mm SS Pin.




Opal Port Hinge: Goi PO-HingeX:
Gray plastic Hinge Assembly is used on all Goiot Opal Ports, T04 Ports use 2 Handles and Hinges. Unit is 128mm long and screws directly to Lens, screws are included. NOTE: This item is No Longer Available from Goiot. If you need this item, Goiot suggests that you purchase a new Port.





Replacement Acrylic Lens, Fly Screen & Gasket for Opal Ports

 Port #  Lens Size (max.)  Notes  Lens (Blue)  Lens (Grey)  Fly Screen  Gasket
 T00  258x125mm    Goi 115510  Goi 120669    Goi PO-G
 T01      Goi 115511  Goi 122317  Goi 106620
 T03      Goi 115512  Goi 123669  Goi 115854
 T04  583x141mm    Goi 115334  Goi 115335  Goi 106621
 T05      Goi 115514  Goi 123670  Goi 115848
 T50      Goi 115515  Goi 123671  Goi 106619

 T32O  329x144mm  Oval  Goi 115516  Goi 121145  Goi 106618



Gasket for Goiot Opal series Ports, per ft.: Goi PO-G:

Black Extruded Gasket is used on all Goiot Opal series Ports. Wide Triangular Gasket with flat bottom is 24mm wide x 14mm high, and is sold by the foot.   WT




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.



Evolution Port Parts
Replacement parts for Goiot Evolution Extruded Aluminum Ports are listed below.
For parts not listed please contact us with measurements and details.


Evolution Port Handle Ass'y: Goi PE-HA:

Gray plastic Handle Assembly is used on all Goiot Evolution Ports. Assembly includes Ribbed Handle (Goi PE-H), Outside Cap, O-ring and screw.




  Evolution Port Handle: Goi PE-H:

Gray plastic Handle is used on all Goiot Evolution Ports. Ribbed Handle has internal key, and is 62mm (1 7/16") long x (maximum) 20mm (3/4") wide. Handle attaches to Port with (1) 6mm FH screw which seats directly into the plastic handle. Unit is marked P1595.



Evolution Port Handle Seat Latch: Goi PE-L:

Gray plastic Handle Seat Ramp (Latch) is used on all Goiot Evolution Ports. Handle Seat is 40mm (1 9/16") wide x (maximum) 25mm (1") deep and attaches to Port frame with (2) 6mm FH screws. Unit is marked P1594.




Evolution Port Hinge Set: Goi PE-HingeSet:

Gray plastic Hinge Set as used on all Goiot Evolution Ports. Each hinge assembly (2 included) includes all (4) plastic parts, O-ring and (5) screws.




Replacement Acrylic Lens, Fly Screen & Gasket for Evolution Ports
Acrylic Lenses for true Rectangular (90 deg. corners) Goiot Evolution Ports are also available, Call with measurements.

 Port #  Lens Size  Notes  Lens (Blue)  Lens (Grey)  Fly Screen  Gasket
 26.11R  274x124mm    Goi 99274  Goi 99421  Goi 99568  Goi PE-G
 33.13R  344x144mm    Goi 99269  Goi 99417  Goi 99511
 58.13R  595x144mm    Goi 99277  Goi 99423  Goi 99622

 33.10O  344x109mm  Oval  Goi 99306  Goi 99437  Goi 99578
 33.13O  344x144mm  Oval  Goi 99280  Goi 99426  Goi 99509



Gasket for Goiot Evolution series Ports, per ft.: Goi PE-G:

Black Neoprene Gasket is used on all Goiot Evolution series Ports. Round-top Gasket with flat bottom is adhesive-backed, is 8mm wide x 8mm high, and is sold by the foot. No additional Glue is required.   RT8A
