Halyard Lead Blocks Halyard Lead Blocks are designed to turn a line 90°, and commonly used for turning a Halyard or Reef line at the base of the Mast to lead it along the Deck. Usually attached to the Deck, Hinged varieties are especially useful when attachment to the Mast is required. See also: Stand Up Spring Blocks, and other Blocks. See also: Isomat/ Sparcraft, and Z-Spar Mast Base Turning Blocks. Rig-Rite stocks a large selection of Halyard Lead Blocks from a variety of manufacturers, most are listed here. For Halyard Lead Blocks not listed, please contact us with complete information, including Manufacturer's part number or a sketch or photo of the item(s) with dimensions. |
|
|
|
Fixed Halyard Lead Blocks - 4 Screw Fixed Halyard Lead Blocks are usually mounted to the Deck, for turning a Halyard or Reef line at the base of the Mast. Those listed here are attached with 4 Screws.
|
|
|
SS Lead Block w/ 1 1/16" Delrin Sheave: Sch 02-50:
Schaefer 02 Halyard Lead Block has 1 1/16" Delrin Sheave for use with up to 5/16" line. Unit is (maximum) 1 5/8" tall, Base is 1 1/2" long x 1 1/2" wide, and attaches to deck with (4) 3/16" (#10) RH screws on 1" x 1 3/16" centers.
|
|
|
|
|
|
Black Lead Block w/ 1 7/16" Delrin Sheave: Sch 303-50:
SS Lead Block w/ 1 7/16" Delrin Sheave: Sch 03-50: SS Lead Block w/ 1 7/16" Delrin Sheaves - Double: Sch 03-51: |
|
|
Schaefer 03 Halyard Lead Block has 1 7/16" Delrin Sheave(s) for use with up to 7/16" line.
Unit is (maximum) 2" tall, Base is 1 3/4" long x 1 11/16" wide, and
attaches to deck with (4) 3/16" (#10) RH screws on 1 1/4" x 1 5/16" centers.
|
 |
|
|
|
|
Lead Block w/ 2" Delrin Sheave: Sch 504-60:
Lead Block w/ 2" Delrin Sheaves - Double: Sch 504-61X: Schaefer 05 Halyard Lead Block has 2" Delrin Sheave(s) for use with up to 7/16" line. Unit has Black Aluminum Cheeks, is (maximum) 2 5/8" tall, Base is 2 3/16" long x 2" wide (Double is 2 3/4" wide), and attaches to deck with (4) 3/16" (#10) RH screws on 1 7/16" x 1 1/2" (Double 2 3/4") centers.
|
 |
|
Lead Block w/ 2" Delrin Sheave - Single: NF 1271:
Lead Block w/ 2" Delrin Sheaves - Double: NF 1272: Nicro-Fico Halyard Lead Block with 2" Delrin Sheaves for use with up to 1/2" line. Units have Black plastic Cheeks, are (maximum) 2 1/2" tall with Base that is 2 3/8" long and attaches to deck with (4) 3/16" (#10) RH screws. Single is (maximum) 2 1/8" wide, with fasteners on 1 5/8" x 1 11/16" centers. Marked FG1271. Double is (maximum) 2 3/4" wide, with fasteners on 2 3/8" x 1 11/16" centers. Marked FG1272.
|
|
|
Lead Block w/ 2" Delrin Sheaves - Old-style Double: NF 1272X:
| |
|
Old-style Double Nicro-Fico Halyard Lead Block with 2" Delrin Sheaves for use with up to 1/2" line.
Unit has Black Aluminum Cheeks, is (maximum) 2 1/2" tall with Base that is 2 3/8" long x 2 3/4" wide and
attaches to deck with (4) 3/16" (#10) RH screws 2 3/16" x 1 3/8" centers.
|
|
|
Swiveling Lead Block w/ 2" Delrin Sheave: NF 1273:
Nicro-Fico Swiveling Halyard Lead Block with 2" Delrin Sheaves for use with up to 1/2" line. Unit has Black plastic Cheeks, is (maximum) 2 7/8" tall, Base is 2 3/16" diameter and attaches to deck with (4) 3/16" (#10) RH screws on 1 7/16" circle centers.
|
|
|
|
|
|
Lead Block w/ 2 3/8" Delrin Sheave: Sch 704-60:
Lead Block w/ 2 3/8" Aluminum Sheave: Sch 704-61: Schaefer 07 Halyard Lead Block has 2 3/8" Sheave for use with up to 5/8" line. Unit has Black Aluminum Cheeks, is (maximum) 3 1/4" tall, Base is 2 7/8" long x 2 7/16" wide, and attaches to deck with (4) 1/4" RH screws on 2 1/16" x 1 13/16" centers.
|
 |
|
|
|
|
Fixed Halyard Lead Blocks - 2 Screw Fixed Halyard Lead Blocks are usually mounted to the Deck, for turning a Halyard or Reef line at the base of the Mast. Those listed here are attached with 2 Screws. |
|
|
Fixed Lead Block w/ 1 1/16" Delrin Sheave: Sch 200-31:
Schaefer 02-Series Fixed Halyard Lead Block with 1 1/16" Ball-Bearing Sheave for use with up to 5/16" line. Unit is (maximum) 1 1/2" tall, Base is 1 5/8" long x 3/4" wide, and attaches to deck with (2) 3/16" (#10) screws on 1 1/4" centers. SWL is 500 lbs. (225Kg).
|
 |
|
Fixed Lead Block w/ 1 7/16" Delrin Sheave: Sch 300-31:
Schaefer 03-Series Fixed Halyard Lead Block with 1 7/16" Ball-Bearing Sheave for use with up to 7/16" line. Unit is (maximum) 2" tall, Base is 2 1/8" long x 3/4" wide, and attaches to deck with (2) 3/16" (#10) screws on 1 3/4" centers. SWL is 1000 lbs. (454Kg).
|
 |
|
Fixed Lead Block w/ 2" Delrin Sheave: Sch 506-31:
Schaefer 05-Series Fixed Halyard Lead Block with 2" Ball-Bearing Sheave for use with up to 7/16" line. Unit is (maximum) 2 5/8" tall, Base is 3" long x 13/16" wide, and attaches to deck with (2) 1/4" RH screws on 2 1/4" centers. SWL is 1000 lbs. (454Kg).
|
 |
|
Fixed Lead Block w/ 2 3/8" Delrin Sheave: Sch 32-06:
Schaefer 08 'Half-moon' Fixed Halyard Lead Block with 2 3/8" Delrin Sheave for use with up to 5/8" line. Unit is (maximum) 3 3/16" tall, Base is 3 5/16" long x 1 5/8" wide, and attaches to deck with (2) 1/4" RH screws on 3" centers. SWL is 3000 lbs. (1361Kg).
|
|
|
Fixed Lead Block w/ 2 3/8" Alu. Sheave: Sch 32-06A:
Fixed Lead Block w/ 2 3/8" Alu. BB Sheave: Sch 32-06UC: Schaefer 08 'Half-moon' Fixed Halyard Lead Block with 2 3/8" Aluminum Sheave for use with up to 5/8" line. Unit is (maximum) 3 3/16" tall, Base is 3 5/16" long x 1 5/8" wide, and attaches to deck with (2) 1/4" RH screws on 3" centers. Aluminum UC Circuit Sheave has Torlon Ball Bearings for minimum friction. SWL is 3000 lbs. (1361Kg).
|
|
|
Fixed Lead Block w/ 3 1/4" Delrin Sheave: Sch 32-09X:
Fixed Lead Block w/ 3 1/4" Alu. Sheave: Sch 32-08X: Schaefer 10-Series 'Half-moon' Fixed Halyard Lead Block with 3 1/4" Sheave for use with up to 3/4" line. Unit is (maximum) 4 3/16" tall, Base is 5" long x 1" wide, and attaches to deck with (2) 5/16" screws (1 RH & 1 FH) on 4" centers.
|
|
|
|
|
|
Hinged Halyard Lead Blocks Hinged Halyard Lead Blocks can be mounted to the Deck but are commonly used on the Mast, the Hinge allows the Block to align with off-center loads. Narrow Base varieties are especially useful when attachment to the Mast is required as several can be mounted in a small space. Note: When attached to the Mast, we recommend putting Nuts inside the Mast. |
|
|
Hinged Block w/ 1 7/16" Delrin BB Sheave: Sch 300-32:
Schaefer 03-Series Narrow Base Hinged Halyard Lead Block with 1 7/16" Ball-Bearing Sheave for use with up to 7/16" line. Unit is (maximum) 2 1/2" tall, Base is 2 1/2" long x 3/4" wide, and is attached with (2) 3/16" (#10) FH screws on 1 3/4" centers. Narrow Base with Hinge allows for Mast attachment on any Spar Section. SWL is 1000 lbs. (454Kg).
|
 |
|
Hinged Lead Block w/ 2" Delrin BB Sheave: Sch 506-32:
Schaefer 05-Series Narrow Base Hinged Halyard Lead Block with 2" Ball-Bearing Sheave for use with up to 1/2" line. Unit is (maximum) 3 1/8" tall, Base is 3 1/4" long x 7/8" wide, and is attached with (2) 1/4" FH screws on 1 3/4" centers. Narrow Base with Hinge allows for Mast attachment on any Spar Section. SWL is 1000 lbs. (454Kg).
|
 |
|

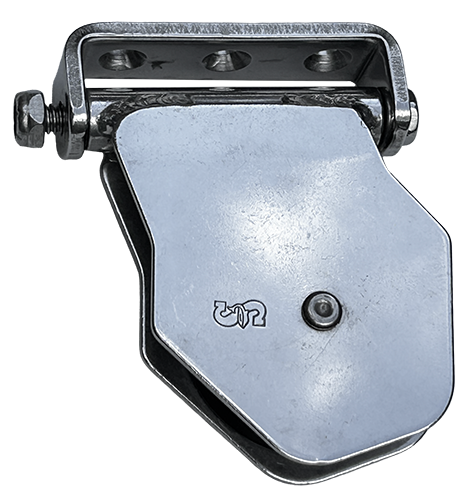

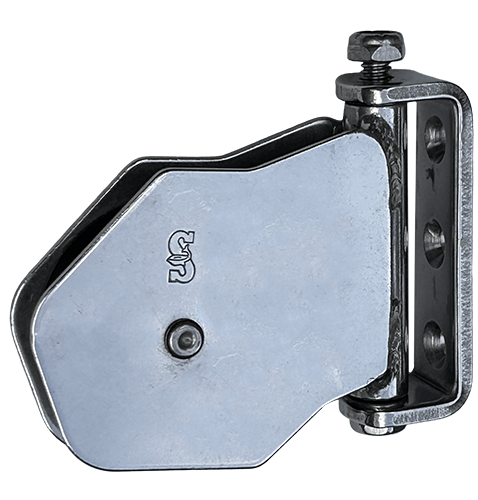

Hinged Lead Block w/ 2" Aluminum Sheave: Sch 32-16X:
Schaefer 05-Series Narrow Base Hinged Halyard Lead Block with 2" Aluminum Sheave for use with up to 1/2" line or up to 3/16" wire. Unit is (maximum) 3 5/8" tall, Narrow Base is 2 3/4" long x 3/4" wide, and attaches to mounting surface with (3) 1/4" FH screws on 27/64" (<7/8") centers. Narrow Base with Hinge allows for Mast attachment on any Spar Section.
|
|
|
Hinged Lead Block w/ 2 3/8" Aluminum Sheave: Sch 32-17:
Hinged Lead Block w/ 2 3/8" Alu. Sheave w/ Long Base: Sch 32-17HD: | |
|
Schaefer 08-Series Narrow Base 'Half-moon' Hinged Halyard Lead Block with 2 3/8" Aluminum Sheave
for use with up to 1/2" line. Unit is (maximum) 3 3/16" tall, Base is 4 9/16" long x 3/4" wide,
and is attached to mounting surface with (4) 1/4" FH screws on 1 1/8" centers. SWL is 3000 lbs. (1361Kg). Sch 32-17HD is identical, but with a longer Heavy-duty Base (5 9/16" long) that allows for a 5th screw below the block for higher load applications when mounted on the Mast.
|
 |
|
|
|
|
Hinged Lead Block w/ 2 3/8" Alu. Sheave: Sch 32-15X:
Schaefer 08-Series 'Half-moon' Hinged Halyard Lead Block with 2 3/8" Aluminum Sheave for use with up to 5/8" line. Spring-loaded Block is used on Deck, Springs keeps Sheave upright when not under load. Unit is (maximum) 3 3/16" tall, Base is 3 5/16" long x 1 5/8" wide, and attaches to deck with (2) 1/4" RH screws on 3" x 1 5/16" centers. SWL is 3000 lbs. (1361Kg). Replacement Stand-up Springs are available (2 per Block), Sold each: Sch 32-03SP:
|
 |
| Hinged Lead Block w/ 2 3/8" Alu. Ball Bearing Sheave: Sch 32-15UC: | |
|
Schaefer 08-Series 'Half-moon' Hinged Halyard Lead Block with 2 3/8" Aluminum UC
Ball-Bearing Sheave for use with up to 5/8" line. Spring-loaded Block is used on Deck,
Springs keeps Sheave upright when not under load.
Unit is (maximum) 3 3/16" tall, Base is 3 5/16" long x 1 5/8" wide, and attaches to deck with (2) 1/4"
RH screws on 3" x 1 5/16" centers. Aluminum UC Circuit Sheave has Torlon Ball Bearings for minimum friction.
SWL is 3000 lbs. (1361Kg).
Replacement Stand-up Springs are available (2 per Block), Sold each: Sch 32-03SP:
|
 |
|
|
|
