1 1/4" OD Spinnaker Poles & Fittings |
|
|
Standard 1 1/4" OD Spinnaker Pole Tube Measurements: 1.25" OD x 1.12" ID (31.75mm x 28.45mm) Wall Thickness: .065" (1.65mm) Weight/ft.: .285 lbs. Moments of inertia: Circumference: 3.93" Alloy: 6063-T6 Stock Lengths: Up to 20' Common Boat usage: 12' - 19' LOA |
|
1 1/4" OD Standard Spinnaker Pole Tube is used in a variety of applications,
including Spinnaker, and Whisker Poles.
Standard Pole Fittings for this tube size are listed below.
See also, Thin-Wall (.050") 1 1/4" OD Spinnaker Poles & Fittings. This Tube is also used for small boat Booms, See Kenyon Spars 1 1/4" Round Boom Section. |
|
|
Standard 1 1/4" OD Spinnaker Pole Tube
1 1/4" OD Spinnaker Pole Tube - Clear Anodized: RTA 1.25-065A-___:
|
|
1 1/4" OD Spinnaker Pole Kit: SPK-1.25H-7': 1 1/4" OD Spinnaker Pole Kit will make a Pole up to 7' long. Kit includes Clear Anodized tube with 2 EL Piston pole ends (1 already attached), lanyard, and epoxy kit. Simply cut tube to length and attach one end. Takes less than 10 minutes to assemble. |
|
|
|
1 1/4" OD Spinnaker Pole End Fittings | |
|
|

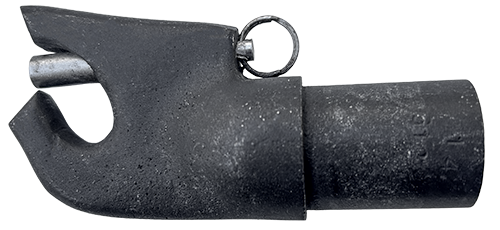

EL Piston End for 1 1/4" OD Tube: NF 10079A: Composite EL Piston End has handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring. Black molded end (w/ adapter) is 3" long and projects 1 1/2" (maximum) from tube end. #X SSwa
|
|

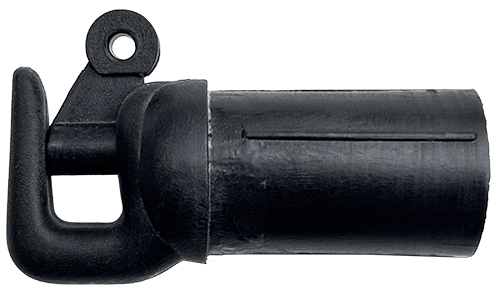

EL Piston End for 1 1/4" OD Tube: RWO 4231: Super-Lightweight RWO / SuperSpar Composite EL Piston End has handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring or Guy. Black molded end is 3 1/16" long and projects 1 5/16" (maximum) from tube end. SuperSpar PEL
|
|
EL Piston End for 1 1/4" OD Tube: RWO 4230:
Lightweight RWO EL Piston End has SS end and piston with handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring or Guy. Black molded end is 3 1/8" long and projects 1 9/16" (maximum) from tube end.
|
|
EL End w/ SS Piston for 32mm OD Tube: RF P165-32:
Composite EL Piston End features cast Stainless Steel Piston with thumb tab and hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring or Guy. Black molded end is 3 1/2" long and projects 1 7/8" (maximum) from tube end. Although designed for 32mm Tube, these deluxe ends require only 1 or 2 wraps of rigging or electrical tape to fit standard 1 1/4" OD tube.
|
|
Self-Latching End for 1 1/4" OD Tube: NF 10072A: Composite Self-Latching End has handy thumb tab with opposite hole for attachment of trip line. Angled SL Tab allows for quick attachment by pressing against Ring. Black molded end (w/ adapter) is 4 7/8" long and projects 3 3/8" (maximum) from tube end.
|
|

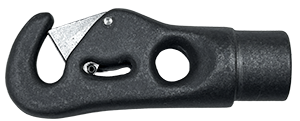

Self-Latching Aluminum End for 1 1/4" OD Pole: EF-125-SLX:
Original Forespar cast aluminum Self-Latching (SL) End allows for easy single-handed attachment by pressing against Ring or Guy. Unit incorporates large eye for attachment of pole lift bridle and foreguy, SS latch tab has hole for attachment of a 1/16" Trip wire. Unit is 4 1/4" long, and projects approximately 3 1/2" beyond pole end. Limited availability.
|
|
Self-Latching SS End for 1 1/4" OD Pole: RF 677:
Self-Latching Piston End allows for easy single-handed attachment by pressing against Ring or Guy. Unit is made of chrome plated cast bronze with Stainless Steel straps, and fits the outside of 1 1/4" diameter poles. Unit is 6" long, projects approximately 2 1/4" beyond pole end and is attached to pole with (6) 3/16" (#10) screws or (3) bolts.
|
|
|
|

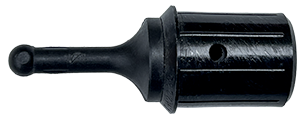

Spike End for 1 1/4" OD Tube: NF 10074-2: Composite Spike End has 5/16" diameter shaft with a 3/8" OD ball tip. Outboard Spike End is inserted in clew grommet, sheet tension keeps it engaged. Black molded end (w/ adapter) is 3 1/4" long and projects 2" (maximum) from tube end.
|
|
|
|
End Fitting Adapters Adapting Collars allow End Fittings to be used with larger diameter tube. This sometimes results in a net weight savings, and often allows for configurations otherwise unavailable. Please Note that adapting collars can be used together, but have ID's designed for End Fittings and can not be used for sleeving two sizes of tubing together. As always, special sizes are available on a Custom basis. |
|
1" End Fitting Adapter for 1 1/4" OD Tube: NF AC1-1.2:
Plastic Adapting Collar allows use of any End Fitting for 1" OD Standard Spinnaker Pole Tube with 1 1/4" OD Standard Spinnaker Pole Tube. Black Collar is 1 1/2" long and projects 3/16" from tube end. NF 10075B PN 2338 |
