1 1/4" OD Thin-Wall Spinnaker Poles & Fittings


Thin-Wall 1 1/4" OD Spinnaker Pole Tube
Measurements: 1.25" OD x 1.15" ID (31.75mm x 29.2mm)
Wall Thickness: .050" (1.27mm)
Weight/ft.: .222 lbs.
Moments of inertia:
Circumference: 3.93"
Alloy: 6063-T6
Stock Lengths: 6', 8'
Common Boat usage: 12' - 19' LOA
round_tube.TIF (16698 bytes)
1 1/4" OD Thin-Wall Spinnaker Pole Tube is used in a variety of applications, primarily in Spinnaker and Whisker Poles made by Forespar. Standard Pole Fittings for this tube size are listed below. See also, Standard (.065" wall) 1 1/4" OD Spinnaker Poles & Fittings.


Thin-Wall 1 1/4" OD Spinnaker Pole Tube

1 1/4" OD Thin-Wall Spinnaker Pole Tube - Clear Anodized: RTA 1.25-050A-___:
1 1/4" OD Thin-Wall Spinnaker Pole Tube is stocked, fully anodized, in a variety of lengths up to the maximum listed above. To order, specify tube length.

1 1/4" OD Thin-Wall Spinnaker Pole Kit: SPK-1.25TWF-7':
1 1/4" OD Thin-Wall Spinnaker Pole Kit will make a Pole up to 7' long. Kit includes Clear Anodized tube with 2 Forespar Lexan EL Piston pole ends (1 already attached), lanyard, and epoxy kit. Simply cut tube to length and attach one end. Takes less than 10 minutes to assemble. Forespar Mini 7.


1 1/4" OD Spinnaker Pole End Fittings

EL Piston End for 1 1/4" OD Tube: EF-125-EL:
Forespar Lexan EL Piston End has handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring. Black molded end is 3" long and projects 1 1/4" (maximum) from tube end. F




EL Piston End for 1 1/4" OD Tube: NF 10079A:
Composite EL Piston End has handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring. Black molded end (w/ adapter) is 3" long and projects 1 1/2" (maximum) from tube end.   #X SSwa

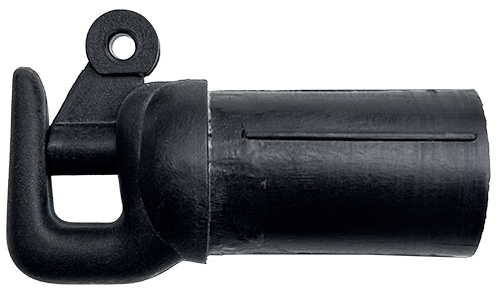

EL Piston End for 1 1/4" OD Tube: RWO 4231:
Super-Lightweight RWO / SuperSpar Composite EL Piston End has handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring or Guy. Black molded end is 3 1/16" long and projects 1 5/16" (maximum) from tube end.   SuperSpar PEL




EL Piston End for 1 1/4" OD Tube: RWO 4230:

Lightweight RWO EL Piston End has SS end and piston with handy thumb tab with hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring or Guy. Black molded end is 3 1/8" long and projects 1 9/16" (maximum) from tube end.



EL End w/ SS Piston for 32mm OD Tube: RF P165-32:

Composite EL Piston End features cast Stainless Steel Piston with thumb tab and hole for attachment of trip line. Angled Piston Tab allows for quick attachment by pressing against Ring or Guy. Black molded end is 3 1/2" long and projects 1 7/8" (maximum) from tube end. Although designed for 32mm Tube, these deluxe ends require only 1 or 2 wraps of rigging or electrical tape to fit standard 1 1/4" OD tube.



Self-Latching End for 1 1/4" OD Tube: NF 10072A:
Composite Self-Latching End has handy thumb tab with opposite hole for attachment of trip line. Angled SL Tab allows for quick attachment by pressing against Ring. Black molded end (w/ adapter) is 4 7/8" long and projects 3 3/8" (maximum) from tube end.



Self-Latching SS End for 1 1/4" OD Pole: RF 677:

Self-Latching Piston End allows for easy single-handed attachment by pressing against Ring or Guy. Unit is made of chrome plated cast bronze with Stainless Steel straps, and fits the outside of 1 1/4" diameter poles. Unit is 6" long, projects approximately 2 1/4" beyond pole end and is attached to pole with (6) 3/16" (#10) screws or (3) bolts.





Spike End for 1 1/4" OD Tube: NF 10074-2:
Composite Spike End has 5/16" diameter shaft with a 3/8" OD ball tip. Outboard Spike End is inserted in clew grommet, sheet tension keeps it engaged. Black molded end (w/ adapter) is 3 1/4" long and projects 2" (maximum) from tube end.





End Fitting Adapters
Adapting Collars allow End Fittings to be used with larger diameter tube. This sometimes results in a net weight savings, and often allows for configurations otherwise unavailable. Please Note that adapting collars can be used together, but have ID's designed for End Fittings and can not be used for sleeving two sizes of tubing together. As always, special sizes are available on a Custom basis.

1" End Fitting Adapter for 1 1/4" OD Tube: NF AC1-1.2:

Plastic Adapting Collar allows use of any End Fitting for 1" OD Standard Spinnaker Pole Tube with 1 1/4" OD Standard Spinnaker Pole Tube. Black Collar is 1 1/2" long and projects 3/16" from tube end.   NF 10075B PN 2338
