Sparcraft FM-305 Mast


Sparcraft FM-305 Mast
Measurements (OD): 7 7/16" x 4 1/16" (188mm x 104mm)
Wall Thickness (minimum): 3.5mm
Weight/M: 5.4kg. Weight/ft.: 3.49 lbs.
Moments of inertia: Ixx = 22.59", Iyy = 7.33"
Moments of inertia: Ixx = 940cm4, Iyy = 305cm4
Circumference: 20 1/8" (512mm)
Sail slides: 8mm boltrope or round slides, Soro BRS5
Sail slides: 16mm flat slides, Soro FP17
Alloy: 6005-T6
Standard Mast Lengths: 57' 5" (17.5M)

FM-305 Mast Section
Common Mast usage: Aquila 11; Baltic 35; Banner 41; Beneteau First 35s5, 35s7, First Class 12, Eur, Oceanis 373; Bavaria Match 35; C&C 34, 99; Cape Fear 38; Carter 3/4 Ton; Catalina 32*, 320(T); Cayenne 41; Dehler 35, 36*; Dufour 31, 35; Dynamic 37; Elan 34, 36; Facil 35; Feltz 11.97; Forna; Gambler 38; Gladiateur; Grand Soleil 34.1, 34.3; Guyline 125; Hallberg-Rassy Rasmus 35*; Hanseat 70 (10.5M); Heinemann H 43; Helmsman 35, 42 IMS, Lady 12.1M; Hensgen 13M; IOR 1 Ton; J/109; Jeanneau Sun Dance 36, Sun-Wind 35, JOD 35 Special; Kalik 34; Lago 38; Maestro 35 MH; Nissen 11.5M*, 11.99; Nordia 35*; Nova 37, 40; Omega 36; Opus 34, 35; Peterson 3/4 Ton, 35; Reinke 9.8M, Euro 11.5; Rommel 33; Sigma 36*; Spirit 36; Sprint 108; Thomas 35; Top 34; Van de Stadt 36*, Forna 37*; Waarship 36, 1076*; Westerly 336K; X-102, 402;

See also Sparcraft Booms, and Sparcraft Spreaders.
See also, Sparcraft FM Masts, and other Sparcraft Mast Sections.


FM-305 Mast Components
Mastheads
Tangs
Jib Boxes & Forestay Attachments
Exit Blocks
Spreaders
Spreader Bases
Spinnaker Cars
Exit Plates
Cleats
Mainsail Gates & Feeders
Gooseneck Brackets
Winch Pads
Vang Brackets & Hardware
Deck Collars, Mast Boots & Hardware
Mast Steps
Internal Waterproofing

Sparcraft FM-305 Mast Section
Sparcraft FM-305 Mast Section is available in a variety of lengths fully anodized. Painted finishes and other lengths are available on special order. If you require a complete Mast Assembly, you can select from components below and contact us with specifications. If you require components not listed below please contact us with complete details.


FM-305 Mast – Mastheads
FM-305 Masts are produced with a variety of different Extruded Mastheads, both welded and bolt-in, for Masthead and for Fractional Rigs. Common Parts for most Mastheads are listed below, for Parts not listed please contact us with complete details.


FM-305 Mast – Masthead Parts
FM-305 Masts are produced with a variety of different Mastheads, including the standard NG1 cast Masthead. Others have been produced using a variety of Extruded Mastheads, both welded and bolt-in, for Masthead and for Fractional Rigs.

Parts for the NG1 Masthead and the various Extruded Mastheads are all completely different. Common parts are listed below, by Masthead type.



NG1 Masthead Parts
Common NG1 Masthead Parts are listed below. For full details, See: NG1 Masthead Assembly.

NG1 Masthead Body: NG1-1B:
The NG1-1B Masthead Body is a single casting welded into the Mast Section. Masthead includes provisions for Headstay, Backstay, and (2) upper shrouds using Stemball fittings. The main frame for the NG1-1AC Masthead Assembly, the NG1 Masthead Body is (maximum) 5 1/16" (130mm) wide x 13 1/2" (340mm) long (on top). Used with FM-305 on Catalina 320, and others.
For full details, See: NG1 Masthead Assembly.







NG1 Masthead Cover Plate: NG1-1:
Cast aluminum Masthead Cover Plate for NG1 Masthead Rig. See: NG1 Masthead Assembly. Masthead Cover Plate also serves as Sheave separator, provides level surface for mounting Anchor light, and has slots for exiting other electrical wires. Unit is 10" (255mm) long (maximum) x 2 3/4" (70mm) wide, and is fastened with two (2) 5mm screws.



NG1-1




NG1 Masthead Spinnaker Crane: NG1-2:
Heavy SS Masthead Spinnaker Crane is designed to attach to standard Isomat NG1 Masthead Rig Masthead. Crane allows for off-center attachment of one or two standard swivel blocks for external spinnaker halyards. This method of running spinnaker halyards has less friction and eliminates the chafe on halyards that is inherent in the standard internal halyard design - it is the only choice for long-distance racing or cruising. Halyards can be led internally; running from the swivel block to an entrance 5-8 feet down from the masthead, but this method does add a potential chafe spot. Attaches with (2) 1/4" bolts and locknuts, and (2) 6mm (3/16") screws that go into the threaded holes for the masthead Cover Plate screws. SS Plate is (maximum) 3 7/8" long x 4 3/8" wide x 3/16" thick, and projects 2" forward of the masthead. Mounting requires drilling (2) 1/4" holes in the masthead. Unit comes complete with fasteners. Masthead crane is not for use with Fractional Mastheads.



NG1-2





NG1 Masthead Sheave - 50mm: NG1-3:
Factory standard Acetyl Sheave is 50mm (2") OD x 14mm (9/16") wide x 10mm (3/8") ID.



NG1 Masthead Sheave - 50mm - Aluminum: NG1-3A:
Anodized Aluminum Sheave is 50mm (2") OD x 14mm (9/16") wide x 10mm (3/8") ID, and is much sturdier than the plastic version.



NG1 Masthead Sheave - 60mm: NG1-4:
Factory standard Acetyl Sheave is 60mm (2 5/16") OD x 14mm (9/16") wide x 10mm (3/8") ID.



NG1-4
NG1 Masthead Sheave - 60mm - Aluminum: NG1-4A:
Anodized Aluminum Sheave is 60mm (2 5/16") OD x 14mm (9/16") wide x 10mm (3/8") ID, and is much sturdier than the plastic version.



NG1 Masthead Spinnaker Roller: NG1-5:
Delrin Roller sheave is 18mm (11/16") OD x 14mm (9/16") wide x 10mm (3/8") ID. For use with Internal spinnaker halyards.



NG1 Masthead Sheave Axle: NG1-6:
SS 'Drop-in' Sheave Axle pin is 10mm (3/8") dia. x 40.8mm (<15/8") long. Used for all Sheaves in all NG1 Mastheads.



NG1-6

FM-305 - Extruded Masthead Parts
FM-305 Masts commonly use a variety of (at least 7) different Extruded Mastheads. Mastheads and components produced in France are completely different from those produced in the US. In addition, Fractional and Masthead Rigs, on Tapered and Untapered Masts, all use different Masthead Assemblies. Parts common to the French Mastheads are listed below, as are Parts common to the US-manufactured Mastheads. For complete Masthead Assemblies and Parts not listed, Please contact us with full details.


French Extruded Masthead Parts
FM-305 Masts produced in France commonly use a variety of 6 different Extruded Mastheads. Parts common to most French Extruded Mastheads are listed below. For complete Masthead Assemblies and Parts not listed, Please contact us with full details.

FM2 Masthead Sheave - 80mm: SM80R15-12:
Turned Delrin Sheave is 80mm (3 3/16") OD x 15mm (<5/8") wide x 12mm (7/16") ID.



FM2 Masthead Sheave Axle Clevis Pin: FM2-6P:
SS Clevis Pin is used as a Sheave Axle in some FM2 Double Channel Extruded Mastheads. Clevis Pin is 12mm (<1/2") diameter with a 52mm (2") grip length. CPM12-52



Double Masthead Spinnaker Bail: FM2-2:
Double Masthead Spinnaker Bail is cut from 5mm SS plate and attaches to the top of the masthead with (6) 6mm (1/4") screws and locknuts. Plate has (2) slots (7/8" x 7/16") for attachment of any Swivel Blocks. Plate is (maximum) 3 3/4" long x 4 1/4" wide. Screw holes are in 2 rows, 7/8" apart. Mounting requires drilling (6) 1/4" holes.


US Extruded Masthead Parts
FM-305 Masts produced in the US commonly use a variety of different Extruded FM2C and NG2 Mastheads. FM2C Mastheads are easily identifiable by their use of 'Drop-in' Sheave Axles. NG2 Extruded Mastheads use Clevis Pins, or Sheave Axle Pins with Tab, as Sheave Axles. Parts common to most US-manufactured Mastheads are listed below. For complete Masthead Assemblies and Parts not listed, Please contact us with full details.

Sheaves and Axles for FM2C Mastheads using 22mm Sheave Axles
FM2C Masthead Sheave w/ 22mm ID: NG2-3:
Factory standard Acetyl Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 22mm (7/8") ID. Med C MHO

NG2-3
FM2C Masthead Sheave w/ 22mm ID - Aluminum: NG2-3A:
Anodized Aluminum Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 22mm (7/8") ID, and is much sturdier than the plastic version.




FM2C Masthead Sheave Axle - 22mm: NG2-6S:
SS 'Drop-in' Tubular Sheave Axle pin is used in some FM2C Double Channel Extruded Mastheads. 'Drop-in' Sheave Axle pin is 22mm (7/8") diameter x 46mm (1 13/16") long, and is used with NG2-3 or NG2-3A Sheaves.





Sheaves and Axles for FM2C Mastheads using 12mm Sheave Axles
FM2C Masthead Sheave w/ 12mm ID: NG2-3B12:
Acetyl Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 12mm (7/16") ID. As NG2-3, above, with a Bushing to reduce the ID to 12mm. Med C MHN

FM2C Masthead Sheave w/ 12mm ID - Aluminum: NG2-3AB12:
Anodized Aluminum Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 12mm (7/16") ID. As NG2-3A, above, with a Bushing to reduce the ID to 12mm.




FM2C Masthead Sheave Axle: FM2C-6P:
SS 'Drop-in' Sheave Axle pin is used in FM2C Double Channel Extruded Mastheads. 'Drop-in' Sheave Axle pin is 12mm (<1/2") diameter x 50.5mm (2") long.




12mm Sheave Axle Pin w/ Tab: K-11129-12mm:
SS Sheave Axle Pin has thin bendable stem welded to teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 12mm diameter x 75mm (3" long). As used on J/109.




Parts Common to all FM2C Mastheads
  FM2C Masthead Toggle w/ 1/2" Pin: K-10469H:
Heavy-Duty Slotted SS Masthead Toggle used in FM2C Masthead is formed to sit on 5/8" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin, CP8-42. Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep.




  FM2C Masthead Toggle w/ 5/8" Pin: K-10469H-1:
Heavy-Duty Slotted SS Masthead Toggle used in FM2C Masthead is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin, CP10-42. Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep.




  FM2C Masthead Toggle Attachment Pin - 5/8": CP-10-80:
SS Clevis Pin is used in FM2C Masthead for attachment of Headstay and Backstay Toggles. Toggle attachment Pin is 5/8" (16mm) diameter with a 2 1/2" (64mm) grip length.




  FM2C Masthead Clevis Pin - 1/2" x 2 1/2": CP-8-80:
SS Clevis Pin is used in FM2C Masthead for attachment of topping lift, lazy jacks, or other items. Clevis Pin is 5/8" (16mm) diameter with a 2 1/2" (64mm) grip length.




  FM2C Masthead Cover Plate: FM2C-CP:
Masthead Cover Plate is used on FM2C Masthead to cover and contain Sheaves and halyards. Anodized Aluminum Cover Plate is 10 1/4" long x 3" wide x 1/8" thick, with 3/16" holes for 10-24 screws on opposing corners.







FM2C Spinnaker Crane Doubler Plate: FM2C-DP:
Doubler Plate is used on FM2C Masthead to reinforce Masthead where Spinnaker Crane U-bolts are mounted. Anodized Aluminum Doubler Plate is 2" long x 7" wide x 3/8" thick, with 10mm mounting holes for Masthead Spinnaker Crane U-bolts, FM2C-2U.   Med C MH 3001.316.7403.









Masthead Spinnaker Crane U-bolt - 10mm: FM2C-2U:
SS U-bolt assembly is 10mm (3/8") diameter x 2 1/2" LOA x 1 1/4" ID (1 5/8" centers). Comes with (2) SS nuts for underside of Masthead, and (2) SS Locknuts for upper side. mc-a




Parts for NG2 Mastheads
Extruded NG2 Mastheads are easily identifiable by their separate (welded or screwed-on) Top Plates. NG2 Mastheads use Clevis Pins, or Sheave Axle Pins with Tab, as Sheave Axles. NG2 Mastheads are commonly used on Fractional Rigs, as on Beneteau Oceanis 373, and others.

FM2 Masthead Sheave Axle Clevis Pin: NG2-30P-12:
SS Clevis Pin is used as a Sheave Axle in some NG2 Double Channel Extruded Mastheads. Clevis Pin is 12mm (<1/2") diameter with a 45mm (1 3/4") grip length. CPM12-45




FM2C Masthead Sheave w/ 12mm ID: NG2-3B12:
Acetyl Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 12mm (7/16") ID. As NG2-3, above, with a Bushing to reduce the ID to 12mm. Med C MHN

FM2 Masthead Sheave Axle Clevis Pin: NG2-30P-12:
SS Clevis Pin is used as a Sheave Axle in some NG2 Double Channel Extruded Mastheads. Clevis Pin is 12mm (<1/2") diameter with a 45mm (1 3/4") grip length. CPM12-45




NG2 Masthead Toggle w/ 12mm Pin: NG2-30-12T:
Stainless Steel Toggle for use with NG2 Double Channel Extruded Masthead. Toggle rides on up to a 14mm Pin, lower 12mm Clevis pin is included. Other Pin sizes (10 - 16mm, 3/8" - 5/8") are available, please specify. As on Beneteau Oceanis 373.




NG2 Masthead Toggle Attachment Pin - 1/2": NG2-30P-1/2":
SS Clevis Pin is used in NG2 Double Channel Extruded Masthead for attachment of Forestay and Backstay Toggles. Clevis Pin is 1/2" (>12mm) diameter with a 51mm (2") grip length.   CP8-64





FM-305 Mast – Tangs
A wide variety of Tangs are used on the FM-305 Mast Section, but most commonly used are Stemball Backing Shell Tangs.  See also, other Tangs.




FM-305 Mast – Jib Boxes & Forestay Attachments
Several other varieties of Jib Boxes and Forestay Attachments are used on the FM-305 Mast Section, See Isomat Jib Boxes and Forestay/Staysail Tangs.

Forestay Attachment Ass'y - 12mm: FM1-31-12A:
Forestay Attachment Assembly with 12mm Nose. Milled SS backing plate is attached inside the Mast with (2) 1/4" rivets, 12mm nose threads into backing plate and is fastened with (2) 6mm screws. Backing plate is 8 1/8" long x 1 3/16" wide (205 x 30mm). As used on some J/109 with 12mm Pin Toggle NG1-30-12T, below.





  NG1 Forestay Toggle w/ 8mm Pin: NG1-30-8T:
NG1 Forestay Toggle w/ 10mm Pin: NG1-30-10T:
NG1 Forestay Toggle w/ 12mm Pin: NG1-30-12T:
Stainless Steel Forestay Toggle w/ 12mm Pin. Used with a variety of FM1 and NG1 Forestay Attachments. Other Pin sizes (5/16" - 1/2") are available, please specify.



FM1 Jib Box Ass'y w/ Toggle - 8mm Pin: FM1-30-8A:
FM1 Jib Box Ass'y w/ Toggle - 10mm Pin: FM1-30-10A:
FM1 Jib Box Ass'y w/ Toggle - 12mm Pin: FM1-30-12A:
Cast aluminum three (3) halyard internal Jib Box Assembly with Forestay Toggle for Fractionally rigged Masts. Accommodates two (2) Jib halyards below the Toggle and a Spinnaker halyard over the Toggle. Assembly uses NG1-3 and NG1-4 Sheaves for the Jib Halyards, and NG1-3 and SM40-15-10 Sheaves for the single Spinnaker Halyard. Easily replaceable internal sheaves ride on 10mm Axles, FM1-30KP. Sheaves are suitable for use with halyards up to 7/16" diameter. Unit fits in mast cutout 7 1/2" (190mm) high x 1 3/16" (30mm) wide. Assembly is designed to fit through the mounting slot and is then fastened from the outside with (2) 6mm (1/4") screws or rivets. Stainless Steel Toggle (in various pin sizes) is included. Casting measures (maximum) 240mm (9 1/2") long x 35mm (1 3/8") wide and projects 85mm (3 3/8") (maximum) inside of mast. Suitable for use with a variety of mast sections on boats with forestays up to 1/4" or 7mm diameter. Other Pin sizes (5/16" - 1/2") are available, please specify.



  FM1 Jib Box Sheave, 50mm: NG1-3:
Factory standard Acetyl Sheave is 50mm (2") OD x 14mm (9/16") wide x 10mm (3/8") ID. Used as upper and lower internal Sheaves in FM1 cast Jib Box Assemblies.



  FM1 Jib Box Sheave, 50mm - Aluminum: NG1-3A:
Anodized Aluminum Sheave is 50mm (2") OD x 14mm (9/16") wide x 10mm (3/8") ID, and is much sturdier than the plastic version.




  FM1 Jib Box Sheave, 60mm: NG1-4:
Factory standard Acetyl Sheave is 60mm (2 5/16") OD x 14mm (9/16") wide x 10mm (3/8") ID. Used as center Sheave in FM1 cast Jib Box Assemblies.



NG1-4
  FM1 Jib Box Sheave, 60mm - Aluminum: NG1-4A:
Anodized Aluminum Sheave is 60mm (2 5/16") OD x 14mm (9/16") wide x 10mm (3/8") ID, and is much sturdier than the plastic version.




  FM1 Jib Box Sheave Axle: FM1-30KP:
Knurled SS Sheave Axle pin is 10mm (3/8") diameter x 28mm (1 1/8") long. Used for all 3 internal Sheaves in all FM1 Cast Jib Boxes.





FM-305 Mast – Exit Blocks
Several varieties of Exit Blocks are used on the FM-305 Mast Section, See Isomat Exit Blocks.




FM-305 Mast – Spreaders
The FM-305 Mast Section is commonly (but not always) used with BF-3 Spreaders. Standard Spreader Bases are listed below, for Spreaders, Spreader Parts, and other Spreader Bases, See Sparcraft Spreaders & Components.




FM-305 Mast – Spreader Bases
The FM-305 Mast Section is commonly used with a cast SS BF-3 Spreader Bar, below. Other Spreader Bars and Bases have been used, See BF-3 Spreaders & Components. Early FM-305 Masts used Francespar Spreaders and stamped SS Spreader Bases that are no longer available.

Aluminum Spreader Bar for FM-305 & BF-3 Spreader: BF3-41-0SB-101:
New-style Extruded Aluminum Spreader Bar for FM-305 Mast and BF3 Spreaders incorporates seats for NG1 wire or rod Stemballs. Spreader Bar is 12" (305mm) long, and incorporates a 5 degree vertical angle for 0 degree (in-line) Spreaders. Special for FM-230, FM-305 and similar width Mast Sections. As used on Catalina 320, and others. See BF-3 Spreaders & Components.   230









SS Spreader Bar for FM-305 & BF-3 Spreader: BF3-43-101:
New-style cast SS Spreader Bar for FM-305 Mast and BF3 Spreaders incorporates seats for NG1 wire or rod Stemballs and is suitable for Spreaders angled up to 25° aft. SS Spreader Bar is (maximum) 1.275" (32.5mm) high x 2 3/4" (70.5mm) wide, and incorporates a 5 degree vertical angle; length of center section is 101mm. This item requires a contoured cut-out in the Mast wall. Cast SS Spreader Bar is available in a variety of other lengths for use with Mast Sections from FM-135 through FM-580. For Spreaders, Spreader Parts, and other Spreader Bars and Bases, See BF-3 Spreaders & Components.   230, sbsl=123









Spreader Base Clevis Pin: BF3-30:
Attaches BF3 Spreader to SS Spreader Bar. SS Clevis Pin is 8mm diameter x 32mm (1 1/4") long. Two (2) Required per Spreader.



BF3-30

Doubler Plate for BF-3 SS Spreader Bar: BF3-43F:
Formed Aluminum Doubler Plate is contoured to fit the mast section and reinforces it for use with any size BF3-43 SS Spreader Bar. Plate is (maximum) 4 3/8" (112mm) long x 2 9/16" (65mm) high. Slot in plate is (maximum) 2 3/4" (70.5mm) long x 1.3" (32.5mm) high. Plates (2 required) are attached to the mast with (4) 1/4" (6mm) rivets. For use with Mast Sections from FM-135 through FM-580, and others. +52893




FM-305 Mast – Spinnaker Cars
Spinnaker Cars on the FM-305 Mast Section, normally run of one of several sizes of added T-Track, See Spinnaker Cars for T-Track.

Spinnaker Car only, w/ Tow Shackles: FM 32TCC-T:
Spinnaker Car only, w/ Pin Stop: FM 32TCC-P:
Spinnaker Car only for 32mm T-Track, as used in a wide variety configurations. Chrome-plated cast Bronze slide has plastic liners to minimize friction and is available with towing shackles, OR with Spring Pin Stop. Car is (maximum) 4 5/8" long x 1 13/16" wide, and accepts Toggle up to 1 1/2" (39mm) high using a 10mm Pin. Includes plastic liners, FM 32TC-LP. Spinnaker Car fits 1 1/4" and 32mm T-Track. Also available Complete with various Bell and Toggle Assemblies, See: Spinnaker Cars for 1 1/4" T-Track.



  Replacement Liner Pair for RR 73-125M Spinnaker Cars: FM 32TC-LP:
  Replacement Liners for FM 32TCC Spinnaker Cars are sold in pairs only. Black Plastic Liners are (maximum) 3 9/16" (90mm) long. Fits into slot on Car that is 3/8" wide x 3 3/8" long.



  End Stop for 32mm T-Track: FM 32T-ESB:
  End Stop for 32mm x 5.5mm T-Track attaches to Mast with 8mm FH screw. Black Plastic End Stop projects (maximum) 32mm (1 1/4") from Track end.

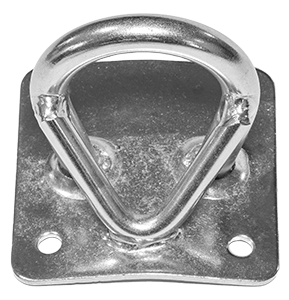

FM2 Spinnaker Pole Mast Eye: FM2-37:
Fixed Eye for attachment of whisker or spinnaker pole on the front of the mast. Used where vertical adjustment of inboard pole end is not required, Cast SS Pole eye is curved to fit the front of the Mast. Base is 58mm (2 1/4") square, and attaches to Mast with (4) 1/4" screws or rivets. 10mm Ring has 50mm (2") ID. Used with FM-305 and larger Mast Sections. Part is marked 33501000104.






FM-305 Mast – Exit Plates
Several varieties of Exit Plates are used on the FM-305 Mast Section, See Isomat Exit Plates.




FM-305 Mast – Cleats
Several sizes of Cleats are used on the FM-305 Mast Section, See Isomat Cleats.




FM-305 Mast – Mainsail Gates & Feeders
FM2 Aluminum Mainsail Gate Kit: FM2-9K:
Cast aluminum Mainsail Gate Kit fits FM-135 through FM-460 Mast Sections. Kit includes Gate casting, FM2-9, (2) plastic spacers and (2) SS rivets.




  FM2 Aluminum Mainsail Gate: FM2-9:
Cast aluminum Mainsail Gate only, as in Kit FM2-9K, above. Gate casting is (maximum) 3 1/8" (80mm) high x 1 1/2" (38mm) wide.



FM2 SS Short Mainsail Gate & Screw Kit: FM2-9S-SK:
Formed SS Short Mainsail Gate Kit fits FM-135 through FM-3360 Mast Sections. Gate is 2 3/8" long, and has horizontal slots for Thumbscrews, Gate is 'opened' by loosening Thumbscrews and sliding gate away from Mainsail track. SS Short Gate is 2 3/8" (60mm) high x 1 5/16" (36mm) wide, slots are on 1 5/8" (41mm) centers. Kit includes SS Short Gate, FM2-9S-S, and (2) SS Thumbscrews, NGA-10.



FM2 SS Long Mainsail Gate & Screw Kit: FM2-9S-LK:
Formed SS Long Mainsail Gate Kit fits FM-135 through FM-3360 Mast Sections. Gate is 3" long, and has horizontal slots for Thumbscrews, Gate is 'opened' by loosening Thumbscrews and sliding gate away from Mainsail track. SS Long Gate is 3" (76mm) high x 1 5/16" (36mm) wide, slots are on 1 5/8" (41mm) centers. Kit includes SS Long Gate, FM2-9S-L, and (2) SS Thumbscrews, NGA-10.



  NG1 Mainsail Gate Screw: NGA-10:
SS Thumbscrew is 4mm diameter with 5/8" (15mm) long thread and has serrated plastic head.



  NG1 Mainsail Gate Screw - All Stainless: NGA-10SS:
All Stainless Thumbscrew is 4mm diameter with 5/8" (15mm) long thread and knurled head.




FM2 SS Mainsail Slide Stop: FM2-10A:
SS Mainsail Gate Slide Stop fits FM-135 through FM-3360 Mast Sections and all mast sections with track for 7/8" or 15/16" internal flat slides. Design allows Slide Stop to remain captive in mast track. Gate cutout (1 3/4" high) is made 2" above Gooseneck bracket. Thumbscrews fits in 1/4" holes drilled at top of cutout, and slides down into recess beneath Gooseneck Bracket when Thumbscrews are loosened. This design allows sail slides to come as close as possible to the gooseneck while remaining in track, and eliminates problems associated with slides snagging while going past a normal sail gate. Investment cast SS Slide is 100mm (4") long x 24.5mm (15/16") wide, assembly includes (2) Thumbscrews, NGA-10. Part is marked 34211690154.




FM2 Large Boltrope Feeder: FM2-BRF:
SS Boltrope Feeder fits FM-305 through FM-580, and other Mast Sections. Cast SS Feeder is 3 1/2" (88mm) long x (maximum) 2 1/4" (58mm) wide and attaches to mast with (6) 3/16" (5mm) rivets on 44mm x 37mm vertical centers. Unit requires 75mm x 16mm cut-out in the Mast track. Part is marked 34203000054.




AutoReef Fairlead
AutoReef Fairlead: NGA-65:
SS AutoReef Fairlead is mounted on either side of mast above gooseneck bracket. Acts as fairlead for reef line and stop for sail when reefed with AutoReef (single line) reefing system. Flattened SS ring is welded to diamond shaped SS plate. Ring is 32mm (1 1/4") OD x 16mm (5/8") ID, plate is 65mm (5/8") high x 40mm (1 5/8") wide and is fastened with four (4) 1/4" (6mm) rivets. For details, See: Isomat AutoReef System.



NGA-65

FM-305 Mast - Gooseneck Brackets & Hardware
The FM-305 Mast Section is used with both NG1 Gooseneck Brackets (for Booms up to FB-550 and NB-26), and FM2 and NG2 Gooseneck Brackets (for Booms FB-220 and larger).


NG1 Gooseneck Bracket for 12mm Pin: NG1-11:
Cast aluminum Gooseneck Bracket is used on a variety of NG and FM Mast Sections. It is compatible with all FB and NB Gooseneck Toggles that use a 12mm Pin. Bracket is 3 7/8" (98mm) high x 1 15/16" (49mm) wide, and is fastened with four (4) 1/4" (6mm) rivets. Bracket has 12mm (7/16") holes for use with any of the NB1-1 Vertical Gooseneck Toggle Pins, below.



NG1-11

NB1 Gooseneck Pin Ass'y w/ Reef Hooks: NB1-1RA:
Stainless Steel Reef Hook/Tack Assembly incorporates 12mm Vertical Gooseneck Bolt with Tack Shackle and dual Reef Hooks. Reef Hooks are formed from 8mm rod, Assembly is (maximum) 3 5/8" wide x 6" high, and includes 5mm SS Tack Shackle. Bolt is 12mm diameter x 3 5/8" long for use with any of the NG1-11 Gooseneck Brackets and a variety of Gooseneck Toggles for a 12mm Pin.



NB1 Vertical Gooseneck Pin: NB1-1:
SS Clevis pin is 12mm (7/16") diameter with a 85mm (3 3/8") grip length, and has 8mm (5/16") hole for Shackle attachment. Fits vertically in any of the NG1-11 Gooseneck/Vang Brackets.



NB1-1

NB1 Vertical Gooseneck Bolt - Special, Long: NB1-1:
SS Gooseneck Bolt is 12mm (7/16") diameter with a 118mm (4 5/8") long, and has 8mm (5/16") hole for Shackle attachment. Fits vertically in any of the NG1-11 Gooseneck/Vang Brackets. Special, used with AutoReef Fairlead on Beneteau Oceanis 373.





NB1 Tack Shackle: NB1-2:
SS Tack Shackle fits through hole in top of vertical gooseneck clevis pins. Shackle has 5mm (3/16") pin.



NB1-2

NB1 Horizontal Gooseneck Cylinder: NB1-3:
Plastic Cylinder slides through the Gooseneck Casting and the Gooseneck Toggle. Vertical Gooseneck Pin then slides through Mast Bracket, Gooseneck Toggle, and Horizontal Gooseneck Cylinder, in that order. Black plastic cylinder is 1" diameter x 1 1/2" long with hole for 12mm (7/16") pin. Used on all FB Booms up to FB-125, as well as NB-16 and NB-26 Booms.



NB1-3

NB1 Gooseneck Toggle: NB1-4:
Plastic Toggle fits in between the ears in the Gooseneck Casting. Horizontal Gooseneck Cylinder then slides through the Gooseneck Casting and the Gooseneck Toggle. All 3 pieces are held together by the Vertical Gooseneck clevis Pin. Used on all FB Booms up to FB-125, as well as NB-16 and NB-26 Booms.



NB1-4


FB2 Gooseneck Toggle for 12mm Vertical Pin: FB2-411:
Extruded Aluminum Gooseneck Toggle is used on FB-220 and FB-550 Booms, to attach to NG1-11 Gooseneck Brackets, using any of the NB1-1 Vertical Gooseneck Pins, above. Toggle is 1 15/16" (50mm) high x 1 5/8" wide x 2 7/8" long, with holes for 12mm vertical and horizontal pins on 1 7/16" centers. Anodized Toggle features central hole for cotter pin to secure Horizontal Pin.




NG2 Gooseneck Bracket: NG2-12:
Cast aluminum Gooseneck/Vang Bracket is used on a variety of Mast Sections with FB-220 and larger Booms. It is compatible with all FB Gooseneck Toggles that use a 14mm Pin. Bracket is 4 3/4" (120mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 1/4" (6mm) rivets. Bracket has 22mm (7/8") hole at top and 14mm (9/16") hole on bottom side, for use with the NG2-14A Vertical Vang Toggle Pin Assembly, and any of the NG2 Vang Toggles, See: Isomat Vang Brackets & Toggles.



NG2 Vang Toggle Pin Ass'y: NG2-14A:
Assembly converts NG2 Vang Bracket, NG2-12, for use with any of the NG2 Vang Toggles listed below. Includes Vang Toggle Pin (NG2-14), NG2 Vang Bushing (NG2-13), and SS Cotter Ring.



  NG2 Vang Toggle Pin: NG2-14:
SS Clevis Pin is 14mm (9/16") diameter with a 125mm (5") grip length, and has 8mm (5/16") hole for Cotter Ring or Block attachment. Fits vertically in NG2-12 Vang Bracket.




  NG2 Vang Bushing: NG2-13:
SS Bushing is used in upper hole of NG2-12 Vang Bracket to adapt it for use with FM2 or NG2 14mm Toggle Pins. Bushing is 22mm (7/8") OD x 14mm (9/16") ID x 16mm (5/8") long.




FM2 Gooseneck Bracket for 14mm Pin: FM2-11:
Extruded aluminum Gooseneck Mast Bracket is used on a variety of FM Mast Sections for use with FB-220 and larger Booms. It is compatible with all FB Gooseneck Toggles that use a 14mm Pin. Bracket is 4 3/8" (112mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 3/16" (5mm) rivets and (2) 1/4" (6mm) FH screws. *Note that fastener holes are commonly drilled out for use w/ 1/4" (6mm) rivets. Bracket has a 14mm (9/16") hole for use with any of the FB2-1 Vertical Gooseneck Pins and FB2-412 or FB2-414 Gooseneck Toggles, below.



  FB2 Gooseneck Pin Ass'y w/ Reef Hooks: FB2-1A:
14mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB2-412 or FB2-414 Gooseneck Toggles to NG2-12 and FM2-11 Mast Brackets. SS Gooseneck Pin Assembly has (2) integral 10mm Reef Hooks and includes Tack Shackle NB2-2, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).



  FB2 Gooseneck Pin Ass'y w/ Shackle: FB2-1ARA:
14mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB2-412 or FB2-414 Gooseneck Toggles to NG2-12 and FM2-11 Mast Brackets. SS Gooseneck Pin Assembly includes Tack Shackle NB2-2, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).



  FB2 Vertical Gooseneck/Vang Pin: FB2-1:
14mm Vertical Gooseneck Toggle Pin only, as used in FB2-1ARA assembly, above. SS Gooseneck Pin is 14mm (9/16") diameter x 135mm (5 3/8") long (under head), and threaded on the bottom.




  FB2 Tack Shackle: NB2-2:
SS Tack Shackle fits through hole in top of FB2-1 Vertical Gooseneck Toggle Pins. Shackle has 8mm (5/16") pin, throat width is 22mm (7/8").



  FB2 Gooseneck Pin Ass'y w/ Tack Pin & Loops: FB2-1ARL:
14mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB2-412 or FB2-414 Gooseneck Toggles to NG2-12 and FM2-11 Mast Brackets. SS Gooseneck Pin Assembly includes welded side loops, 8mm (5/16") Tack Pin, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).



  FB2 Gooseneck Toggle for 12mm Horizontal Pin: FB2-412:
Cast Aluminum Gooseneck Toggle is used on FB-220 and FB-550 Booms to attach to NG2-12 and FM2-11 Gooseneck Brackets, using any of the FB2-1 Vertical Gooseneck Pins, above. Toggle is 2 3/4" (69mm) high x 1 1/2" (37mm) wide x 3 3/8" (86mm) long, with holes for 14mm Vertical and 12mm Horizontal pins, on 2" (50mm) centers. Anodized Toggle features central hole for cotter pin to secure Horizontal Pin.



  FB2 Gooseneck Toggle for 14mm Horizontal Pin: FB2-414:
Cast Aluminum Gooseneck Toggle is used on FB-810 and larger Booms to attach to NG2-12 and FM2-12 Gooseneck Brackets, using any of the FB2-1 Vertical Gooseneck Pins, above. Anodized Toggle is 2 3/4" (69mm) high x 1 1/2" (37mm) wide x 3 3/8" (86mm) long, with holes for 14mm Vertical and 14mm Horizontal pins, on 2" (50mm) centers.




FM-305 Mast – Winch Pads
FM-305 Side Winch Pad - Clear Anodized: FM305-20:
Formed aluminum Bracket fits either side of FM-305 Mast Section. Winch mounting surface on Bracket is 4 3/4" (120mm) high x 3 1/2" (115mm) wide. Clear anodized Bracket fastens to Mast with eight (8) 3/16" (5mm) rivets. 751248,230 NS




FM-305 Aft Winch Pad - Clear Anodized: FM305-21:
Formed aluminum Bracket fits aft side of FM-305 Mast Section. Designed to mount under the Boom for use with a Reef line winch. Winch mounting surface on Bracket is 3 7/8" (100mm) high x 3 1/2" (90mm) wide and angles aft approximately 12 degrees to align Winch with Outhaul or Reef lines exiting from Boom. Anodized Bracket fastens to Mast with eight (8) 3/16" (5mm) rivets. 751156,31,180





FM-305 Mast - Vang Brackets & Hardware
Vang Brackets and Toggles used on the FM-305 Mast Section are listed below.
Gooseneck Brackets, above, are also used as Vang Brackets.
For other Vang Toggles
used with these Brackets, See Isomat Vang Toggles.
See also Isomat/ Sparcraft Solid Vangs.


NG1 Gooseneck/Vang Bracket: NG1-11:
Cast aluminum Gooseneck/Vang Bracket fits NG-28 through NG-51 Mast Sections. Bracket is 3 7/8" (98mm) high x 2 3/4" (70mm) wide, and is fastened with four (4) 1/4" (6mm) rivets. Bracket has holes for 12mm (7/16") Vertical Toggle Pin (NB1-1).



NG1-11
NB1 Gooseneck/Vang Vertical Toggle Pin: NB1-1:
SS Clevis pin is 12mm (7/16") diameter with a 85mm (3 3/8") grip length, and has 8mm (5/16") hole for Cotter Ring or Block attachment.



NB1-1

NG1 Vang Bracket Ass'y w/ Toggle for Rope Vang: NG1-16A:
Complete NG1 Vang Bracket Assembly has Toggle with Slot for attachment of Rope (soft) Vang. Assembly consists of Vang Bracket (NG1-11), Vang Toggle Pin (NB1-1), and NG1-16 Vang Toggle with 3/8" x 7/8" (10mm x 22mm) Slot. Assembly is fastened to Mast with four (4) 1/4" (6mm) rivets or screws. Toggle can be replaced with any listed below for later conversion to a Hard (solid) Vang.



  NG1 SS Vang Toggle w/ Slot for Rope Vang: NG1-16:
SS Welded Vang Toggle with Slot for attachment of Block or Shackle fits NG1-11 Vang Brackets. SS tube is 1 15/16" (50mm) long and is drilled for 12mm Vertical Pin, NB1-1. Welded SS Tab has Slot (3/8" x 7/8") suitable for attachment of most any shackle. Heavy-duty Tab is 7mm (.280") thick and projects 2" (50mm) out from tube.




FM-305 Mast - Deck Collars, Mast Boots & Hardware
FM-305 Mast Boot: FM305-15B:
Heavy molded Black Rubber Boot for use with FM-305 Mast section only, and all FM-305 Deck Collars. Marked 230/305.    560121



FM-305 Mast Boot Clamp: FM305-16M:
All Stainless Steel Clamp for use with Mast Boot on FM-305 Mast. 28




FM-305 Collar Boot Clamp: FM305-16C:
All Stainless Steel Clamp is suitable for use with Mast Boots on all FM-305 Deck Collars. 52




Mast Collar Wedge – Small Rubber: NGA-18:
Heavy Extruded Rubber Wedge for use with Isomat and other Masts. Small stepped Rubber Wedge is used to support the mast as it passes through the Deck Collar. Wedge is 2 3/4" (70mm) long x 1 1/8" (28mm) wide, and is 15/16" (24mm) thick at the top tapering to 3/8" (10mm) thick at the bottom.

  Buy

NGA-18
Mast Collar Wedge – Large Rubber: NGA-19:
Heavy Extruded Rubber Wedge for use with Isomat and other Masts. Large stepped Rubber Wedge is used to support the mast as it passes through the Deck Collar. Wedge is 2 3/4" (70mm) long x 1 1/8" (28mm) wide, and is 1 3/16" (30mm) thick at the top tapering to 11/16" (18mm) thick at the bottom.

 Buy

NGA-19
Urethane Mast Collar Wedge for FM-305 Deck Collars: FM305-12MW:
Black Urethane Mast Collar Wedge fits tightly between Mast and FM-305 Deck Collars, FM305-11 and FM230-12, to provide even loading all around the mast and increased resistance to water penetration. One-piece molded construction is far superior to individual wedges, but requires that unit be slipped onto Mast before stepping. Unit is (maximum) 10 1/2" (265mm) long x 7" (175mm) wide.



Urethane Mast Collar Wedge - FM-305 Special w/ Flat Top: FM305-12MWF:
Urethane Mast Collar Wedge fits tightly between FM-305 Mast and FM230-12 Deck Collars, to provide even loading all around the mast and increased resistance to water penetration. One-piece molded construction is far superior to individual wedges, but requires that unit be slipped onto Mast before stepping. Unit is (maximum) 10 3/8" (265mm) long x 6 5/8" (175mm) wide. Special with Flat Top, as used on J/109.




FM-305 Deck Collar - Standard: FM230-12:
Cast Aluminum Deck Collar for use with FM-230, FM-305 & FM-385 Mast Sections. Deck Collar has provisions for (10) new-style Mast Base Turning Blocks, (2) NG2-21 Block Studs (forward), and a SS Bail, NG2-20, for attachment of a soft Boom Vang. Nut slots on underside of casting and 12mm holes allow for attachment of Mast Base Turning Blocks, NGA-40 or NGA-41, without unfastening Deck Collar; Vang Bail and Block Studs (forward) must be installed at the same time the Deck Collar is. Includes Four (4) provisions for deck tie-down turnbuckles, and eight (8) slots for NGA-18 and NGA-19 Mast Wedges, but also is used with any of the One-piece Urethane Mast Collar Wedges, FM305-12MW, above. Cast Deck Collar is 14" (355mm) long x 9 5/8" (245mm) wide, and fastens to deck with (6) 1/4" (6mm) FH Screws. Maximum inside dimension is 8 1/4" x 4 7/8". Unit is marked 556001.    385,230 Bcirc. 27 3/4"



  NG2 Mast Step Block Stud Pin - 12mm Small: NG2-21:
12mm SS Clevis Pin-shaped Block Stud is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed 12mm hole in a variety of Mast Steps and Deck Collars. Block Stud is installed from underside of Casting, Casting must be removed to install Block Studs. Small head Block Stud is 12mm diameter x 45mm (1 3/4") long (maximum), with a 30mm (1 3/16") grip length and a 6mm (1/4") hole for shackle pin or Block bolt.



  NG2 Deck Collar Bail: NG2-20:
SS Formed Bail is used for attachment of Boom Vang, and fits in integral slot in aft side of Deck Collars. Bail is installed from underside of Deck Collar Casting; Deck Collar must be removed to install Bail. Bail is made from 10mm (3/8") rod, and is 2 3/4" (70mm) long x (maximum) 1 15/16" (50mm) high.



NG2-20
FM-305 Deck Collar - Special for J/109: FM230-12-P14:
Cast Aluminum Deck Collar for use with FM-230, FM-305 & FM-385 Mast Sections. Deck Collar is as FM230-12, above, but with Block Stud holes drilled to 14mm to allow for attachment of 14mm Mast Step Block Pins, NG3-21, which must be installed at the same time the Deck Collar is. As used on J/109 with FM-305 Mast Section.




  NG3 Mast Step Block Pin - 14mm: NG3-21:
14mm SS Block Pin is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed hole in Mast Steps and Deck Collars with 14mm mounting holes. Block Pin is installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins. Special Block Pin is 14mm (9/16") diameter x 54mm (2 1/8") long (maximum), with a 35mm (1 3/8") grip length and an 8mm (5/16") hole for shackle pin or Block bolt.




FM-305 Simple Deck Collar: FM305-10:
Simple Aluminum Deck Collar for use with FM-305 Mast Section provides a clean, uncluttered look without any attachment provisions for Blocks or Bails. Cast Deck Collar includes Four (4) provisions for deck tie-down turnbuckles, and numerous slots for NGA-18 and NGA-19 Mast Wedges. FR




FM-305 Deck Collar w/ SS Block Plates: FM305-11:
Cast Aluminum Deck Collar for use with FM-305 Mast Section includes attached SS Plates (both sides and aft) with multiple holes for attachment of Blocks and shackles. Deck Collar includes Four (4) provisions for deck tie-down turnbuckles, and numerous slots for NGA-18 and NGA-19 Mast Wedges, but also is used with the FM305-12MW One-piece Urethane Mast Collar Wedge, above, and the FM305-11CR Deck Collar Wedge Clamp Ring, below.




  Deck Collar only for Clamp Ring: FM305-11C:
Cast Aluminum Deck Collar only, as used in FM-305 Deck Collar Assembly, FM305-11A, above. Deck Collar features (4) provisions for deck tie-down turnbuckles, and numerous slots for NGA-18 and NGA-19 Mast Wedges, but is commonly used with the FM305-12MW One-piece Urethane Mast Collar Wedge, and the FM305-11CR Deck Collar Wedge Clamp Ring, below. 305,385



mmm
  Deck Collar Wedge Clamp Ring: FM305-11CR:
Cast Aluminum Deck Collar Wedge Clamp Ring for use with FM-305 Deck Collar, FM305-11, and Urethane Mast Collar Wedge, FM305-12MW. Unit is (maximum) 12 1/8" (308mm) long x 7 5/16" (185mm) wide, and must be slipped onto Mast before stepping. Wedge Clamp Ring attaches to Deck Collar with (3) SS screws, FM305-11CRS.   19161 36075103853



  Deck Collar Wedge Clamp Ring Screw: FM305-11CRS:
SS Screws are used to attach Deck Collar Wedge Clamp Ring to FM-305 Deck Collar, FM305-11. SS Screws (3 required) are 10 x 70mm.   385





FM-305 Mast - Mast Steps
FM-305 Mast Step - Keel Mount: FM305-1K:
Adjustable Keel-mounted Mast Step for FM-305 & FM-385 Mast Sections attaches to the keel or keelson with (4) 10mm (3/8") bolts in external slots to allow for precise positioning without unstepping the mast. Cast clear anodized Mast Step is 9" (230mm) long x 6 3/4" (170mm) wide, and allows for 25mm (1") fore and aft adjustment. Unit is marked 557402.  385



FM-305 Mast Step - Deck Mount: FM305-4:
Cast Aluminum Mast Step for use with FM-305 & FM-385 Mast Sections. Mast Step has provisions for (10) NG2-21 Block Studs and a SS Bail, NG2-20, for attachment of a soft Boom Vang. Block Pins and Vang Bail are installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins or Vang Bail. Cast Mast Step is 11 9/16" (294mm) long x (maximum) 8" (204mm) wide, and fastens to deck with (6) 8mm (5/16") FH Screws. Shown with optional Vang Bail, NG2-20. As used on Beneteau 35s7, and others.   385



FM-305 Mast Step - Deck Mount: FM305-5:
Cast Aluminum Mast Step for use with FM-305 & FM-385 Mast Sections. Mast Step has provisions for 10 new-style Mast Base Turning Blocks and a SS Bail, NG2-20, for attachment of a soft Boom Vang. Nut slots on underside of casting and 12mm holes allow for attachment of Mast Base Turning Blocks, NGA-40 or NGA-41, without unfastening Mast Step. Cast Mast Step is 11" (275mm) long x (maximum) 9 1/8" (230mm) wide, and fastens to deck with (6) 1/4" (6mm) FH Screws. Unit is marked 557412.   385



FM-305 Mast Step - Deck Mount: FM305-6:
Cast Aluminum Mast Step for use with FM-305 & larger Mast Sections. Mast Step has provisions for 10 new-style Mast Base Turning Blocks and a SS Bail, NG2-20, for attachment of a soft Boom Vang. Nut slots on underside of casting and 12mm holes allow for attachment of Mast Base Turning Blocks, NGA-40 or NGA-41, without unfastening Mast Step. Cast Mast Step is 11 3/8" (290mm) long x (maximum) 8 1/4" (208mm) wide, and fastens to deck with (6) 5/16" (8mm) FH Screws. Unit is marked 36031213053. As used on Oceanis 373 and others. RRP   305,385,460,580,560E



NG2 Mast Step Block Stud Pin - 12mm Small: NG2-21:
12mm SS Clevis Pin-shaped Block Stud is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed 12mm hole in a variety of Mast Steps and Deck Collars. Block Stud is installed from underside of Casting, Casting must be removed to install Block Studs. Small head Block Stud is 12mm diameter x 45mm (1 3/4") long (maximum), with a 30mm (1 3/16") grip length and a 6mm (1/4") hole for shackle pin or Block bolt.



NG2 Mast Step Bail: NG2-20:
SS Formed Bail is used for attachment of Boom Vang, and fits in integral slot in aft side of Mast Steps. Bail is installed from underside of Mast Step Casting; Mast Step must be removed to install Bail. Bail is made from 10mm (3/8") rod, and is 2 3/4" (70mm) long x (maximum) 1 15/16" (50mm) high.



NG2-20

FM-305 Internal Waterproofing Plug: FM305-WP:
Internal Waterproofing Plug is installed in Keel-stepped Masts to prevent water intrusion below deck. Assembly consists of 2 plastic pieces carefully cut to fit Mast interior with central PVC standpipe to allow passage of electrical wires. Unit slides up from the bottom of the Mast to a point just above Deck level where a hole is drilled in Mast to allow for application of expanding foam between plastic pieces. Second hole is drilled just above upper plastic piece to allow water drainage.



Internal Waterproofing Foam: NGA-Foam:
Expanding foam is used for installation of Internal Waterproofing Plug. Single-use can is sufficient for installation of any Internal Waterproofing Plug.





FM-305 Mast Base Halyard Turning Blocks
Two Sizes and Several varieties of Mast Base Turning Blocks are used with the FM-305 Mast Steps and Deck Collars, See Isomat Mast Base Turning Blocks.

~ Back to Sparcraft FM Masts ~

~ Back to Sparcraft Masts ~

~ Home ~
