Spartan S-1 Spar System


Spartan S-1 Spar System
The Spartan S-1 Spar System was developed for small sailing craft that need a quick, effective means of setting sail. The S-1 Spar System is a Gunter Rig using a 2" OD round aluminum Mast and a 1 1/2" OD round Boom and Sprit (or Gaff or Yard, but technically, not really any of the three).
Commonly used on the Cape Dory 10 & Cape Dory 14, in a variety of lengths, as well as Squadron Yachts Molly Brown and Buttercup, the S-1 Spar System is suitable for a variety of similar vessels.

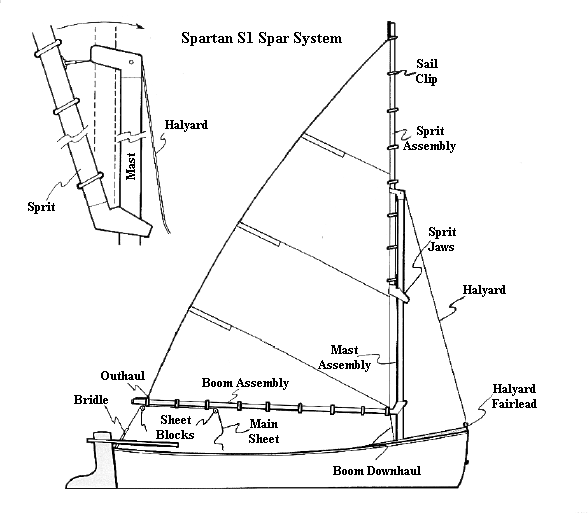

Spartan S1 Spar System
S-1 Complete Rig Kit: SP-S1RigKit:
Standard Spartan S-1 Rig Kit includes all components necessary to assemble a Complete set of S-1 Spars. Kit includes (1) 2" OD x 12' Mast Tube with Masthead, SP-003, and Mast Base Plug, SP-006; (2) 1 1/2" OD x 10' 8" Boom & Sprit Tubes with (2) Boom/Sprit Gooseneck Jaws, SP-008, (2) Boom Cap with Eye, SP-011, (4) Eyestraps, K-226, (2) Mainsheet Blocks, SP-215B, and (20) 3/16" SS pop-rivets to fasten all components. Simply cut tubes to the desired lengths and assemble components.



S-1 Mast Assembly: SP-001MA-___:
Mast Assembly for S-1 Gunter Rig. Assembly includes 2" OD tube with SP-003 Masthead and SP-006 Mast Base Plug. Standard tube length is 12', specify if other length is required.



  S-1 Masthead: SP-003:

Masthead for S-1 Gunter Rig Mast. Cast aluminum Masthead fits 2" OD tube and includes removable sheave and bushing. Clear anodized assembly is fastened to Mast with two (2) 3/16" (5mm) rivets or screws.



  S-1 Mast Tube: SP-001T:
Mast Tube for S-1 Spar System is clear Anodized 2" OD x .083" wall thickness. Standard tube length is 12', specify if other length is required.




  S-1 Mast Base Plug: SP-006:

Mast Base Plug for S-1 Mast. Plastic Plug fastens to 2" OD Mast with two (2) 3/16" (5mm) rivets or screws.




S-1 Boom Assembly: SP-007BA-___:
Boom Assembly for S-1 Gunter Rig. Assembly includes 1 1/2" OD tube with SP-008 Gooseneck, SP-011 End Cap with Eye and (3) K-226 Eyestraps with (2) SP-215B Mainsheet Blocks. Standard tube length is 10' 8", specify if other length is required.



S-1 Sprit Assembly: SP-007SA-___:
Sprit Assembly for S-1 Gunter Rig. Assembly includes 1 1/2" OD tube with SP-008 Gooseneck, SP-011 End Cap with Eye and K-226 Eyestrap for halyard attachment. Standard tube length is 10' 8", specify if other length is required.



  S-1 Boom/Sprit Gooseneck Jaw: SP-008:

Gooseneck Jaw for S-1 Gunter Rig Boom and Sprit. Cast aluminum Gooseneck fits 1 1/2" OD tube. Clear anodized assembly is fastened to Boom or Sprit with two (2) 3/16" (5mm) rivets or screws.



  S-1 Boom/Sprit Tube: SP-007T:
Boom/Sprit Tube for S-1 Spar System is clear Anodized 1 1/2" OD x .065" wall thickness. Standard tube length is 10' 8", specify if other length is required.




  Boom/Sprit Outboard End Cap: SP-011:

End Cap with Eye for S-1 Boom and Sprit. Molded Plastic End attaches to 1 1/2" OD Boom or Sprit with (1) 3/16" (5mm) rivet or screw.




  Eyestrap for Main Halyard & Block Attachment: K-226:

SS Eyestrap is fastened to Boom or Sprit with two (2) 3/16" (5mm) rivets or screws.




  Mainsheet Block: SP-215B:

SS Mainsheet Block with delrin sheave fits under K-226 Eyestrap. The S-1 Boom Assembly normally uses 2 Blocks.




  Sail Clips for S-1 Rig: SP-014-20:

White plastic Clip attaches Sail to Boom and Sprit. In packages of 20 pieces.




CD-10 Mainsail: SP-CD10Sail:
Mainsail for Cape Dory 10 with standard Spartan S-1 Spars comes with 3 battens and sail bag. Dacron Sail attaches to Boom and Sprit with SP-014 Sail Clips, above (purchase separately).


Kenyon also manufactures a variety of fittings for 1 1/2" Round Booms, See Kenyon Spars 1 1/2" Boom Section.
