Spars, Rigging, and Hardware for Sailboats

Rig-Rite, Inc.
Phone: (001) 401-739-1140 -- FAX: (001) 401-739-1149
www.RigRite.com          Ordering/Questions

Kenyon Spars 2632 Boom Section


Kenyon Spars 2632 Boom
Measurements (outside): 3.25" x 2.63" (83mm x 67mm)
Wall Thickness: variable
Weight/ft.: 1.11 lbs.
Moments of inertia: Ixx = .96", Iyy = .69"
Circumference: 9 3/16"
Sail slides: 1/2" round slugs (A018, A118) or 1/2" boltrope
Alloy: 6061-T6
Standard Boom Lengths: 11'8 1/2", 13'
Common Boom usage: Etchells 22
Kenyon 2632 Boom Section

Kenyon 2632 Boom Section

2632 Boom Section - Clear Anodized: K-2632CA-___:
Kenyon 2632 Section Boom Tube is stocked in a variety of lengths (listed above) fully anodized, it can also be cut to shorter lengths. To order, specify length.
Sections can also be milled for the sail entrance or other components if necessary, painted finishes and other lengths are available on special order, Please specify. If you require a complete Boom Assembly, you can select from components below and contact us with specifications.



Kenyon 2632 Boom Hardware
Listed below are parts specific to the Kenyon 2632 Boom Section. For more generic parts, see Kenyon Exit Plates and other categories listed under Kenyon Spar Parts. There are many parts for specific configurations that are not listed here. If you require 2632 Boom Components not listed here please contact us with details.

2632 Standard Goosenecks
2632 Gooseneck Assembly w/ Tack, Yoke & Toggle: K-43106A:

Cast aluminum boom end fitting includes captive SS tack pin, Heavy-duty SS yoke, K-80H, and 1" SS Toggle, K-1993H. Toggle attaches directly to any of the Kenyon gooseneck brackets designed for a 1" Toggle (see individual mast sections), and Kenyon gooseneck slides designed for a 1" Toggle (below).



2632 Gooseneck Casting w/ Tack Pin: K-43106:

Cast aluminum boom end fitting includes captive SS tack pin and has 3/8" hole for yoke attachment.



2632 Gooseneck Casting w/ Tack Pin: K-10448-1A:

Cast aluminum boom end fitting includes captive SS tack pin and has 3/8" hole for yoke attachment.



SS Yoke Assembly for 1" Toggle: K-80HA:
Heavy-duty SS yoke attaches to various boom end castings with a 3/8" bolt, and to a 1" SS Toggle with a 1/4" SS bolt and locknut (included). Yoke is formed from 1" wide x 1/8" stock and is 1 5/16" wide (outside), and 1 1/32" wide (inside), 1/4" hole centers are 13/16" from bottom inside.




SS Gooseneck Toggle - 1": K-1993H:

Heavy-duty SS Gooseneck Toggle attaches directly to any of the Kenyon gooseneck brackets or gooseneck slides designed for a 1" toggle, and to any boom end casting using the K-80, or K-8890 SS yoke assemblies. Toggle is 1" square x 1 1/8" long with 1/4" holes at 90 degrees to each other on 1/2" centers.




SS Gooseneck Slide - 1" for Large Boltrope: K-1685A:

SS Gooseneck slide fits any gooseneck assembly using the standard 1" toggle, K-1993, with a 1/4" bolt and locknut (included). Slide has heavy welded SS ring for downhaul attachment. Slide is 3" long x 1" wide (maximum). Fits B, D, E, 3049, 3650 and all mast sections using 1/2" round slugs or boltrope.



K-1685A
SS Gooseneck Slide - 1" for Small Boltrope: K-10331A:

SS Gooseneck slide fits any gooseneck assembly using the standard 1" toggle, K-1993, with a 1/4" bolt and locknut (included). Slide has heavy welded SS ring for downhaul attachment. Slide is 2 1/2" long x 1" wide (maximum). Fits A, C-1, C-6, 2331, MORC and other mast sections that can accommodate only 3/8" round slugs or boltrope.



K-10331A
SS Gooseneck Slide - 1" for 7/8" x 1/8" Flat Track: K-1686A:

SS Gooseneck slide fits any gooseneck assembly using the standard 1" toggle, K-1993, with a 1/4" bolt and locknut (included). Slide has heavy welded SS ring for downhaul attachment. Slide is 3" long x 1 1/16" wide (maximum). Fits on a SS 7/8" x 1/8" Flat External Track.



K-1686A
SS Gooseneck Slide - 1" for 1" x 1/8" Flat Track: K-1687XS:
Special SS Gooseneck Slide for 1" x 1/8" SS Flat Track (and standard 1" aluminum T-Track), fits any gooseneck assembly using the standard Kenyon 1" Toggle, K-1993, with a 1/4" bolt and locknut (included). Slide has heavy welded SS ring for downhaul attachment. SS Slide is 3" long x 1 1/8" wide. Available on Special order.   67881




Gooseneck Slide & Toggle Ass'y for 3/4" Internal Flat Track: PP M6ATS:
Aluminum Gooseneck Slide with 1 1/2" Toggle to fit Gooseneck Assembly with Tack and Yoke, K-9665A (above). Slide fits integral Track in Kenyon 3550, 3756, Rig-Rite, Pearson, Metalmast and most other Mast Sections with a 3/4" Internal Flat Track. Gooseneck Slide is 4" long and features 5/16" hole for downhaul line or shackle. Cast Toggle, PP B4C, is 3/4" wide and has 1/4" horizontal Pin hole. Includes nylon spacer washers and SS bolt with locknut to attach to standard 1" SS Yoke, K-80.





2632 Gooseneck Ass'y w/ Tack & Toggle: K-9666A:
Gooseneck Assembly for 2632 boom features 2-position tack and 1" (vertical) Toggle. Toggle attaches to any of the Kenyon gooseneck brackets designed for a 1" Toggle (see individual mast sections), and Kenyon gooseneck slides designed for a 1" Toggle, with a 1/4" pin. Design allows boom unrestricted ability to swivel on horizontal axis. This item is no longer available and is shown here for identification only.



K-9666A

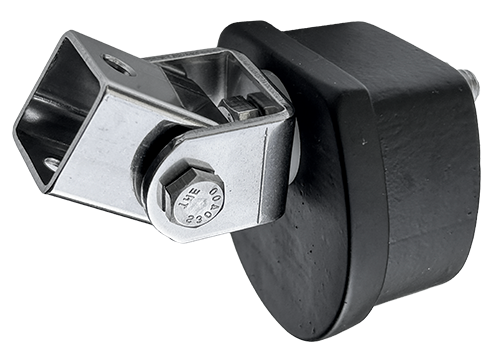

2632 Gooseneck Ass'y w/ Toggle: K-9666A-NT:
Gooseneck Assembly for 2632 boom includes Heavy-duty Yolk and 1" (vertical) Toggle and has NO provision for Tack attachment. Toggle attaches to any of the Kenyon gooseneck brackets designed for a 1" Toggle (see individual mast sections), and Kenyon gooseneck slides designed for a 1" Toggle, with a 1/4" pin. Design allows boom unrestricted ability to swivel on horizontal axis. Note: This item will NOT fit K-R511S Gooseneck Slide.

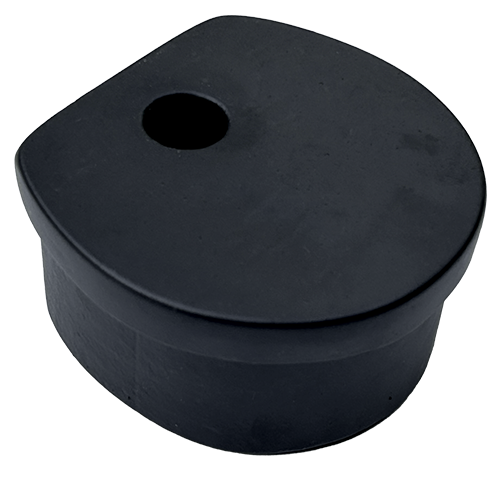

2632 Gooseneck Casting: K-9666:

Cast aluminum boom end features a 1/2" hole through a heavy 1 1/2" boss for use with the K-10604 Gooseneck Toggle/Tack & Yoke assembly, and others using a 1/2" shaft. Casting only, as in K-9666A, above.



SS Gooseneck Toggle, Tack & Yoke Ass'y: K-10604:
SS Gooseneck Toggle/Tack & Yoke assembly on 1/2" shaft fits goosenecks with a 1/2" horizontal hole. SS 2 1/2" long shaft comes with SS and nylon washers and cotter pin. Two-position Tack for optimal adjustment with included quick pin. Toggle portion is 1" vertical and attaches to any of the Kenyon gooseneck brackets designed for a 1" Toggle, and Kenyon gooseneck slides designed for a 1" Toggle, with a 1/4" pin. As used on some Etchells 22. This item is no longer available and is shown here for identification only.



K-10604



Gooseneck Slide for 7/8" Internal SS "C" Track: K-R511S:

Gooseneck Slide to fit Nicro-Fico and Ronstan 7/8" SS "C" Track is designed for use with K-10604 Gooseneck Toggle Assembly, above. Die-cast chromed Bronze assembly includes 1/4" Vertical Pin for attachment of Gooseneck Toggle up to 1 1/16" High. Slide features Spring Pin stop which is able to be locked in either up or down position, and has 3/16" hole for optional downhaul attachment. Slide is 3 1/4" long x (maximum) 7/8" wide. As used on some Etchells 22.




2632 Standard Outhaul
2632 Outhaul Plug Casting: K-9667:

Cast aluminum boom end fitting provides flush end with no projections.





2632 Outhaul Ass'y w/ Tang: K-9667-1:
Cast aluminum boom end fitting provides flush end for boom and includes swiveling tang for mainsheet or topping lift attachment.





2632 Outhaul Ass'y w/ 2 Tangs: K-9667-2:
Cast aluminum boom end fitting provides flush end for boom and includes 2 swiveling tangs for mainsheet and topping lift attachment.





2632 Outhaul Plug Casting - Cut away: K-9667C:

Cast aluminum boom end fitting provides flush end for boom as well as anchoring point for a number of custom outhaul arrangements. Top end is cut away, allowing for complete access to sail groove tunnel.



K-9667


2632 Boom Accessories
Outhaul Slides
A variety of Outhaul Slides are available to fit the 1/2" Boltrope groove in the 2632 Boom Section. See Outhaul Slides for 1/2" Boltrope Groove.



Boom Bail - 1/2" Strap x 3 1/2" long: K-291B:

SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 1/2" wide x 1/16" thick, and 3 1/2" long. Boom bail fastens with (4) 3/16" (#10) fasteners.



K-291B
Boom Bail - 5/16" x 2 3/4" wide: K-2223S:
Heavy SS Boom Bail made from 5/16" rod is designed to be attached with (1) 5/16" SS bolt and nut. Formed at 2 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 3 1/2". For use with 2632 boom.



Boom Bail Bolt Ass'y - 5/16" for 2632: K-2223SBA:
Boom Bail bolt assembly includes 5/16" SS bolt x 3 1/4", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.



Boom Bail - 3/8" x 2 3/4" wide: K-2223:

Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 2 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 3 1/2". For use with 2632 boom.




Boom Bail Bolt Assembly - 3/8" for 2632 Boom: K-2223BA:

Boom Bail bolt assembly includes 3/8" SS bolt x 3 1/2", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.



Boom Bail - Internal: K-11364:

Internally mounted bail has a 1/4" SS bail welded to a plate formed to fit the inside of the boom. Unit is mounted inside the boom, where bail protrudes through a 1" x 1/4" slot, and is held in place with (2) 3/16" SS rivets on 1 7/8" centers. Curved plate measures 2 1/4" long x 3/4" wide. For use with 2632, D and similar Boom Sections. As used on Etchells 22.







Spar Cleat - 4" long: D-10324:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 3/8" diameter. Commonly used for Outhaul Line. Black Epoxy coated Cleat is 4" long, and fastens to spar with (2) 3/16" (#10) FH screws on 1 3/16" centers.



Clam Cleat w/ Fairlead & Curved Base: K-9115X:

Clam Cleat with fairlead is used in place of standard Spar Cleat for frequent Outhaul adjustment in racing applications. Best mounted forward of an eyestrap (K-226) with small block (Har 082, or equivalent). Suitable for use with 1/8"-1/4" (3-6mm) line, black plastic unit fastens with (2) #8 x 3/4" FH Screws on 2 5/8" (66mm) centers. Unit measures 3 1/4" long x 11/16" wide (82x18mm). CL203 CC Jr.



SS Eyestrap: K-226:

Small Stainless Steel Eyestrap is used for securing smaller items to boom. Attaches to Boom with (2) 3/16" (#10, 5mm) screws or rivets.



Single Bullet Block: Har 082:

Small single Bullet Block is used for the Outhaul line on the bottom of the Boom. Plastic Ball-Bearing Block has 1 1/8" OD Delrin Sheave suitable for use with line up to 5/16" diameter. Use with K-226 Eyestrap and K-9115X Clam Cleat, above.



Cheek Block w/ Curved Base: K-140X:

Cheek Block with curved base is used on smaller Kenyon Booms for Outhaul and Reef lines. SS Cheek Block has 1 1/16" OD Delrin Sheave suitable for use with line up to 3/8" diameter. Base is 3 3/16" long x 7/8" wide, and fastens to spar with (4) 3/16" (#10) RH screws on 2 11/16" (horizontal) and 1/2" (vertical) centers.
