Spars, Rigging, and Hardware for Sailboats

Rig-Rite, Inc.
Phone: (001) 401-739-1140 -- FAX: (001) 401-739-1149
www.RigRite.com         Ordering/Questionsp

Spar Cleats


Spar Cleats
Cleats are used to tie off a line (halyards, reef lines, etc.), wherever needed.
Spar Cleats are designed for attachment to Spars, but also used on Deck, generally having both a narrow base attaching with 2 screws, and a hole in the base so the line can be run through it and knotted, preventing the line from getting away.

Rig-Rite stocks a large selection of Spar Cleats. Common ones are listed below.
Other Spar Cleats, from specific Spar Builders, are listed separately. Depending on the kind of spars you have, See also, Isomat Spar Cleats, or Z-Spar Cleats.
Bronze Spar Cleats are listed separately, See Bronze Cleats.

If you require Spar Cleats not listed, please forward a sketch or photo of your Cleat with measurements, hole spacing (to centers), full details of the part, boat model and year.

See also: Jam Cleats, Deck Cleats, Bronze Cleats and Cleats Main Page.


Alloy Spar Cleats
3" Spar Cleats
4" Spar Cleats
5" Spar Cleats
6" Spar Cleats

7" Spar Cleats
8" Spar Cleats

10" Spar Cleats

Plastic Spar Cleats

Downhaul Cleats

Cleat Backing Plates


 3" Spar Cleats
Spar Cleat - 3" long Spartan: SP-032C:

Cast Aluminum Cleat is a low-profile design with a narrow base (without hole) suitable for use with line up to 1/4" diameter. Black Epoxy coated Cleat is 3" long, and fastens to spar with (2) 5/32" (#8) FH screws on 13/16" centers. Special as used by Cape Dory Yachts.




Spar Cleat - 3 1/4" long, Black Kenyon: K-1617:

Cast Aluminum Cleat is a low-profile design with a narrow base suitable for use with line up to 5/16" diameter. Black Epoxy coated Cleat is 3 1/4" long, and fastens to spar with (2) 5/32" (#8) FH screws on 7/8" centers.



Spar Cleat - 3 1/4" long: Sch 70-13X:
Cast Aluminum Cleat is a low-profile design with a narrow base suitable for use with line up to 5/16" diameter. Black Anodized Cleat is 3 1/4" long, and fastens to spar with (2) 5/32" (#8) FH screws on 7/8" centers. As K-1617, above, but with a Black Anodized finish. This item is no longer available and is shown here for identification only.




 4" Spar Cleats
Spar Cleat - 4" long, Black: Sch 70-94:

Spar Cleat - 4" long, Silver: Sch 60-94:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 3/8" diameter. Black, or Clear Anodized Cleat is 4" long, and fastens to spar with (2) 3/16" (#10) FH screws on 1" centers.   sasp

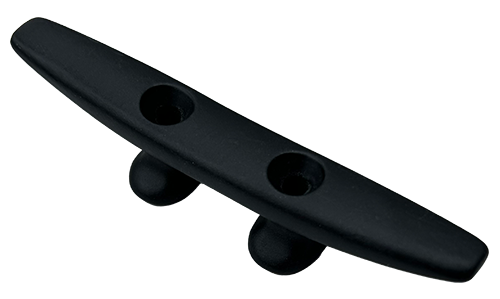

Spar Cleat - 4" long, Black Kenyon: D-10324:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 3/8" diameter. Black Epoxy coated Cleat is 4" long, and fastens to spar with (2) 3/16" (#10) FH screws on 1 3/16" centers.




 5" Spar Cleats
Spar Cleat - 5" long, Black: Sch 70-95:

Spar Cleat - 5" long, Silver: Sch 60-95:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 1/2" diameter. Black, or Clear Anodized Cleat is 5" long, and fastens to spar with (2) 7/32" (#12) FH screws on 1 1/4" centers.



Spar Cleat - 5" long, Black Kenyon: D-10325:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 1/2" diameter. Black Epoxy coated Cleat is 5" long, and fastens to spar with (2) 7/32" (#12) FH screws on 1 1/2" centers.

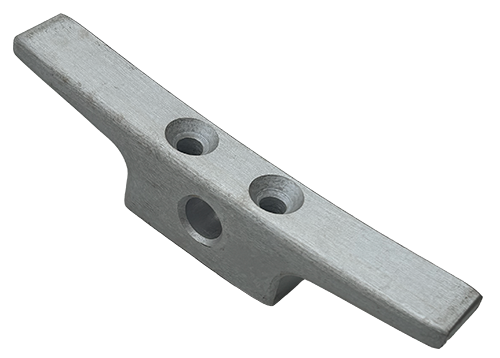

Spar Cleat - 5" long, Silver: MM 60-95XC:

Extruded MetalMast Aluminum Spar Cleat has specially milled base to offset cleat at 10° on a curved Spar surface. Low-profile design has a narrow base suitable for use with line up to 7/16" diameter, and has a 7/16" hole in base. Anodized Cleat is 5" long, and fastens to spar with (2) 1/4" FH screws on 1" centers.



Spar Cleat - 5" long, Black Marinium: WC 14052-5B:

Spar Cleat - 5" long, Silver Marinium: WC 14052-5C:

Original Wilcox-Crittenden Cast Marinium Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 3/8" diameter. Cleat is 5 1/8" long, and fastens to spar with (2) 1/4" FH screws on 1 1/4" centers.







Spar Cleat - 5" long, Silver: PP 60-05XG:

Open Base Aluminum Cleat is suitable for use with line up to 1/2" diameter. Clear anodized Cleat is 5" long x (maximum) 15/16" wide x 1 1/8" high (at center), and fastens with (2) 1/4" FH screws on 1 1/8" centers. Made in Germany.







Spar Cleat - 5" long, Silver: PP 60-05SBXG:

Solid Base Aluminum Cleat is a low-profile design with a narrow base suitable for use with line up to 7/16" diameter. Clear anodized Cleat is 5" long x (maximum) 11/16" wide, and fastens with (2) 1/4" FH screws on 1 1/8" centers. Made in Germany.








 6" Spar Cleats
Spar Cleat - 6" long, Black: Sch 70-96:

Spar Cleat - 6" long, Silver: Sch 60-96:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Black, or Clear Anodized Cleat is 6" long, and fastens to spar with (2) 1/4" FH screws on 1 1/2" centers.







Spar Cleat - 6" long, Black Kenyon: D-10326:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Black Anodized Cleat is 6" long, and fastens to spar with (2) 1/4" FH screws on 1 3/4" centers. sasch7?




Spar Cleat - 6" long, Silver Spartan: SP-098C:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Clear Anodized Cleat is 6" long, and fastens to spar with (2) 1/4" FH screws on 1 1/2" centers. Special as used by Cape Dory Yachts.



Spar Cleat - 6" long, Silver Pearson: PP 60-06X:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 1/2" diameter. Clear Anodized Cleat is 6" long, and fastens to spar with (2) 1/4" FH screws on 1 7/8" centers. Special as used by Pearson Yachts. Ros

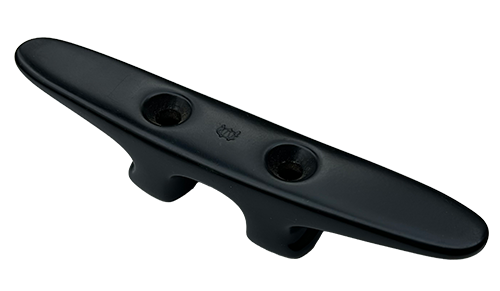

Spar Cleat - 6" long, Black Marinium: WC 14052-6B:

Spar Cleat - 6" long, Silver Marinium: WC 14052-6C:

Original Wilcox-Crittenden Cast Marinium Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 7/16" diameter. Cleat is 6" long, and fastens to spar with (2) 1/4" FH screws on 1 5/8" centers.




 7" Spar Cleats
Spar Cleat - 7" long, Black Kenyon: D-10327:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Black Anodized Cleat is 7" long, and fastens to spar with (2) 5/16" FH screws on 2 1/16" centers.



Spar Cleat - 7" long, Black Spartan: SP-099B:

Spar Cleat - 7" long, Silver Spartan: SP-099C:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Cleat is 7" long, and fastens to spar with (2) 1/4" FH screws on 1 3/4" centers. Special as used by Cape Dory Yachts. hs as K6



Spar Cleat - 7" long, Silver Pearson: PP 60-07X:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Clear Anodized Cleat is 7" long, and fastens to spar with (2) 5/16" FH screws on 1 3/4" centers. Special as used by Pearson Yachts. Ros



Spar Cleat - 7" long, Black Marinium: WC 14052-7B:

Spar Cleat - 7" long, Silver Marinium: WC 14052-7C:

Original Wilcox-Crittenden Cast Marinium Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Cleat is 7" long, and fastens to spar with (2) 5/16" FH screws on 1 7/8" centers.  hs as P6








 8" Spar Cleats
Spar Cleat - 8" long, Black: Sch 70-98:

Spar Cleat - 8" long, Silver: Sch 60-98:

Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 5/8" diameter. Black, or Clear Anodized Cleat is 8" long, and fastens to spar with (2) 5/16" FH screws on 2" centers.




 10" Spar Cleats
Spar Cleat - 10" long, Black: Sch 70-90X:
Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable for use with line up to 3/4" diameter. Anodized Cleat is 10" long, and fastens to spar with (2) 3/8" FH screws on 2 1/2" centers. This item is no longer available and is shown here for identification only.








  Plastic Spar Cleats
We are traditionalists, and prefer the stronger metal (alloy) Cleats for most all applications. However, some applications, including some Carbon Spars, are often better served by non-metallic Cleats. The Cleats listed below are made of Marelon, a sturdy fiberglass reinforced nylon, with high impact resistance, slight flexibility, and low cost.


Marelon Spar Cleat - 3" long: MF 761-3:

Molded Marelon Cleat has a narrow base and is suitable for use with line up to 1/4" diameter. Black plastic Cleat is 3" long x (maximum) 1/2" wide x 3/4" high, and fastens to spar with (2) 5/32" (#8) FH screws on 1 1/16" centers.



Marelon Spar Cleat - 4" long: MF 762-4:

Molded Marelon Cleat has a narrow base and is suitable for use with line up to 5/16" diameter. Black plastic Cleat is 4" long x (maximum) 9/16" wide x 7/8" high, and fastens to spar with (2) 3/16" (#10) FH screws on 1 3/16" centers.







Marelon Spar Cleat - 5" long: MF 763-5:

Molded Marelon Cleat has a narrow base and is suitable for use with line up to 3/8" diameter. Black plastic Cleat is 5" long x (maximum) 11/16" wide x 1 1/8" high, and fastens to spar with (2) 3/16" (#10) FH screws on 1 7/16" centers.




Marelon Spar Cleat - 6 1/2" long: MF 764-6.5:

Molded Marelon Cleat has a narrow base and is suitable for use with line up to 1/2" diameter. Black plastic Cleat is 6 1/2" long x (maximum) 3/4" wide x 1 5/16" high, and fastens to spar with (2) 1/4" FH screws on 1 11/16" centers.




Marelon Spar Cleat - 8" long: MF 765-8:

Molded Marelon Cleat has a narrow base and is suitable for use with line up to 5/8" diameter. Black plastic Cleat is 8" long x (maximum) 15/16" wide x 1 5/8" high, and fastens to spar with (2) 1/4" FH screws on 1 15/16" centers.





  Downhaul Cleats
Downhaul Cleat Ass'y - 3 1/4" long, Black: K-1108:

Aluminum Downhaul Cleat mounts in luff groove of Mast Sections with 1/2" (or larger) Boltrope Groove. Unit consists of K-1617-1 3 1/4" Cleat mounted on a 3 1/2" length of 1/2" OD anodized Aluminum tube. Tube slides into luff groove, screws are tightened to lock Cleat in desired position. Long tube with off-center cleat prevents Gooseneck Slide from hitting Cleat.



Downhaul Cleat Ass'y - 4" long, Black: K-1414:

Aluminum Downhaul Cleat mounts in luff groove of Mast Sections with 1/2" (or larger) Boltrope Groove. Unit consists of K-10324 4" Spar Cleat mounted on a 3 1/2" length of 1/2" OD anodized Aluminum tube. Tube slides into luff groove, screws are tightened to lock Cleat in desired position. Long tube with off-center cleat prevents Gooseneck Slide from hitting Cleat.




 Cleat Backing Plates

Cleat Backing Plate, Aluminum: RR 70-BP1:

Anodized Aluminum Cleat Backing Plate is suitable for use with Cleats with up to 3/8" fasteners and up to 2 3/8" hole centers. Backing Plate is 3 1/2" long x 1" wide x 1/8" thick, and has (2) slots (3/8" x 1") on 1 5/8" centers. Suitable for use with many Spar and Jam Cleats, most Deck Cleats will require two (2) pieces.
