Masthead & Forestay Toggles


Rig-Rite stocks a large selection of Plain, Slotted, and Narrow Masthead and Forestay Toggles, as used on a variety of Spars. Toggles are sorted by Width, but there are many other considerations involved. Complete specifications are provided to let you insure that they will fit in your application. See also, Rigging Toggles.

For Mastheads using Stemball attachments, See: Stemball / Eye Adapters.
See also, Tangs Main Page, and Clevis Pins.


7/8" Wide Plain Masthead Toggles
1" Wide Plain Masthead Toggles
1 1/8" Wide Plain Masthead Toggles
1 5/16" Wide Plain Masthead Toggles
1 3/4" Wide Plain Masthead Toggles

Narrow Masthead Toggles

1" Wide Slotted Masthead Toggles
1 1/8" Wide Slotted Masthead Toggles
1 1/4" Wide Slotted Masthead Toggles
1 5/16" Wide Slotted Masthead Toggles
1 3/8" Wide Slotted Masthead Toggles
1 1/2" Wide Slotted Masthead Toggles
1 3/4" Wide Slotted Masthead Toggles
1 7/8" Wide Slotted Masthead Toggles
2 3/8" Wide Slotted Masthead Toggles
2 1/2" Wide Slotted Masthead Toggles


7/8" Wide Plain Masthead Toggles
Masthead Toggle, 7/8" wide w/ 7/16" Pin: Nav A371-20A06:

Heavy-duty SS Toggle is formed without slot to sit on 1/2" cross-pin going through masthead without central support, and includes 7/16" (lower) Clevis Pin. Contoured toggle is flared to 1 1/4" wide at the lower pin. Toggle is 7/8" wide (minimum) x 3/16" thick, with 2 1/8" between pin centers, and will accommodate eyes up to 1/2" thick.

Masthead Toggle, 7/8" wide w/ 1/2" Pin: Nav A371-20A10:

Heavy-duty SS Toggle is formed without slot to sit on 1/2" cross-pin going through masthead without central support, and includes 1/2" (lower) Clevis Pin. Contoured toggle is flared to 1 1/4" wide at the lower pin. Toggle is 7/8" wide (minimum) x 3/16" thick, with 2" between pin centers, and will accommodate eyes up to 1/2" thick.

Masthead Toggle, 7/8" wide w/ 5/8" Pin: Nav A371-20A17A:

Heavy-duty SS Toggle is formed without slot to sit on 5/8" cross-pin going through masthead without central support, and includes 5/8" (lower) Clevis Pin. Contoured toggle is flared to 1 1/2" wide at the lower pin. Toggle is 7/8" wide (minimum) x 1/4" thick, with 2 3/8" between pin centers, and will accommodate eyes up to 3/4" thick.

1" Wide Plain Masthead Toggles

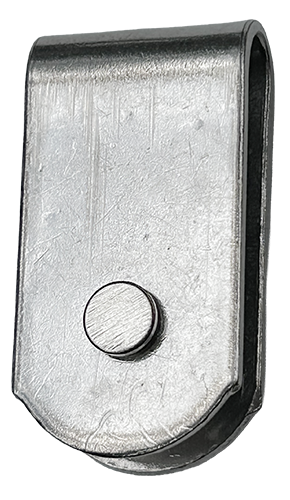

Masthead Toggle, 1" wide w/ 1/4" Pin: K-1007-1:

SS Masthead Toggle is formed without slot to sit on 5/16" or 1/4" cross-pin going through masthead without central support, and includes 1/4" (lower) Clevis Pin. Toggle is 1" wide x 1/16" (.075") thick, with 1 1/4" between pin centers, and will accommodate eyes up to 5/16" thick.

Masthead Toggle, 1" wide w/ 5/16" Pin: K-1007:

SS Masthead Toggle is formed without slot to sit on 5/16" or 1/4" cross-pin going through masthead without central support, and includes 5/16" (lower) Clevis Pin. Toggle is 1" wide x 1/16" (.075") thick, with 1 1/4" between pin centers, and will accommodate eyes up to 5/16" thick. de

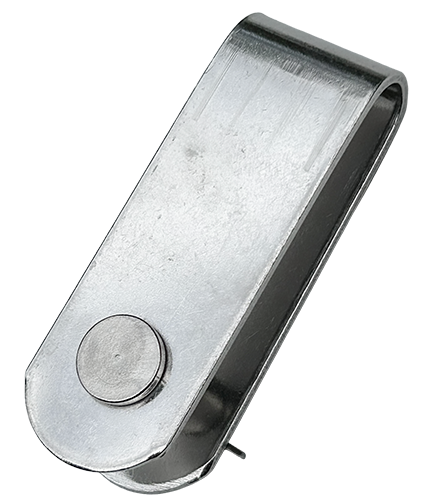

Masthead Toggle, 1" wide w/ 3/8" Pin: K-1080:

SS Masthead Toggle is formed without slot to sit on 3/8" cross-pin going through masthead without central support, and includes 3/8" (lower) Clevis Pin. Toggle is 1" wide x 1/16" (.075") thick, with 2" between pin centers, and will accommodate eyes up to 1/2" thick.

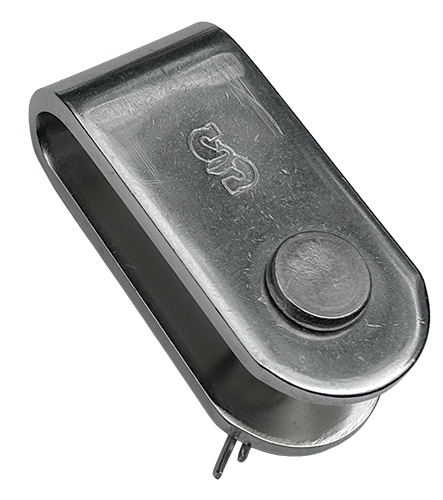

Masthead Toggle, 1" wide w/ 3/8" Pin: Sch 55-92X:

Heavy-duty SS Masthead Toggle is formed without slot to sit on 3/8" cross-pin going through masthead without central support, and includes 3/8" (lower) Clevis Pin. Toggle is 1" wide x 1/8" (.125") thick, with 1 3/8" between pin centers, and will accommodate eyes up to 7/16" thick.




1 1/8" Wide Plain Masthead Toggles

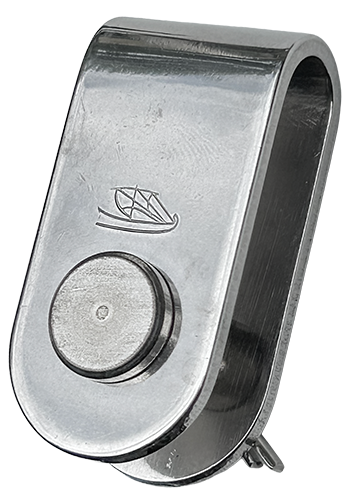

Masthead Toggle, 1 1/8" wide w/ 1/2" Pin: SP-81-08:

SS Masthead Toggle is formed without slot to sit on 1/2" cross-pin going through masthead without central support, and includes 1/2" (lower) Clevis Pin. Toggle is (maximum) 2 1/4" long x 1 1/8" wide x 1/8" thick, with 1 1/4" between pin centers, and will accommodate eyes up to 9/16" thick. CD4




1 5/16" Wide Plain Masthead Toggles
Masthead Toggle, 1 5/16" wide w/ 3/8" Pin: PP 81-L1006:
SS Masthead Toggle is formed without slot to sit on 5/8" cross-pin going through masthead without central support, and includes 3/8" (lower) Clevis Pin. Contoured toggle is flared to 1 3/4" wide at the lower pin. Toggle is 1 5/16" wide (minimum) x 1/8" thick, with 2 1/2" between pin centers, and will accommodate eyes up to 11/16" thick.




Masthead Toggle, 1 5/16" wide w/ 1/2" Pin: PP 81-L1008
SS Masthead Toggle is formed without slot to sit on 5/8" cross-pin going through masthead without central support, and includes 1/2" (lower) Clevis Pin. Contoured toggle is flared to 1 3/4" wide at the lower pin. Toggle is 1 5/16" wide (minimum) x 1/8" thick, with 2 1/2" between pin centers, and will accommodate eyes up to 11/16" thick.




Masthead Toggle, 1 5/16" wide w/ 5/8" Pin: PP 81-L1010:
SS Masthead Toggle is formed without slot to sit on 5/8" cross-pin going through masthead without central support, and includes 5/8" (lower) Clevis Pin. Contoured toggle is flared to 1 3/4" wide at the lower pin. Toggle is 1 5/16" wide (minimum) x 1/8" thick, with 2 1/2" between pin centers, and will accommodate eyes up to 11/16" thick. CL



PP 81-L1010

1 3/4" Wide Plain Masthead Toggles
Masthead Toggle, 1 3/4" wide w/ 7/16" Pin: K-10744:

SS Toggle for K-10594 Masthead is formed without slot to sit on 1/2" cross-pin going through masthead without central support, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 1/8" (.120") thick, with 2" between pin centers, and will accommodate eyes up to 1/2" thick. 4873, 5072



Masthead Toggle, 1 3/4" wide w/ 1/2" Pin: K-10705:

SS Toggle for K-10594 Masthead is formed without slot to sit on 1/2" cross-pin going through masthead without central support, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 1/8" (.120") thick, with 2" between pin centers, and will accommodate eyes up to 1/2" thick. 4873, 5072



K-10705

Masthead Toggle, 1 3/4" wide w/ 5/8" Pin: K-10706:

SS Toggle for K-10594 Masthead is formed without slot to sit on 1/2" cross-pin going through masthead without central support, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 1/8" (.120") thick, with 2" between pin centers, and will accommodate eyes up to 1/2" thick. 4873, 5072





1" (25mm) Wide Slotted Masthead Toggles

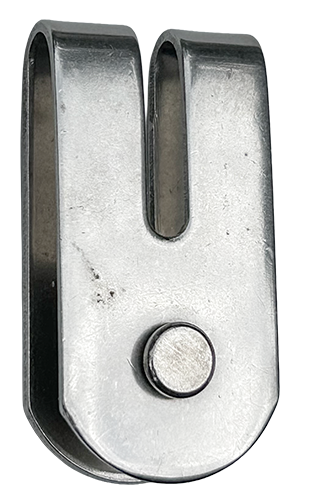

Slotted Masthead Toggle, 1" wide w/ 1/4" Pin: K-1658A:

Slotted SS Toggle for K-1800 Masthead is formed to sit on 1/4" cross-pin going through masthead channel, and includes 1/4" (lower) Clevis Pin. Toggle measures 1" wide x 1/16" thick, with 1 1/4" between pin centers, and will accommodate eyes up to 1/4" thick. Slot is 3/16" wide x 7/8" deep. D


Slotted Masthead Toggle, 1" wide w/ 5/16" Pin: K-1659A:

Slotted SS Toggle for K-1800 Masthead is formed to sit on 5/16" cross-pin going through masthead channel, and includes 5/16" (lower) Clevis Pin. Toggle measures 1" wide x .075" thick, with 1 1/2" between pin centers, and will accommodate eyes up to 3/8" thick. Slot is 3/16" wide x 1 1/4" deep. DE



K-1659A

Slotted Masthead Toggle, 1" wide w/ 3/8" Pin: K-1660A:
Slotted SS Toggle for K-1800 Masthead is formed to sit on 5/16" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1" wide x .075" thick, with 1 1/2" between pin centers, and will accommodate eyes up to 3/8" thick. Slot is 3/16" wide x 1 1/4" deep.




1 1/8" (29mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 1 1/8" wide w/ 5/16" Pin: K-10511-3:

Slotted SS Toggle for K-11348 Masthead is formed to sit on 3/8" cross-pin going through masthead channel, and includes 5/16" (lower) Clevis Pin. Toggle measures 1 1/8" wide x 1/8" (.141") thick, with 2" between pin centers, and will accommodate eyes up to 7/16" thick. Slot is 1/4" wide x 1 3/4" deep. As used on Catalina 320, and others.





K-10511

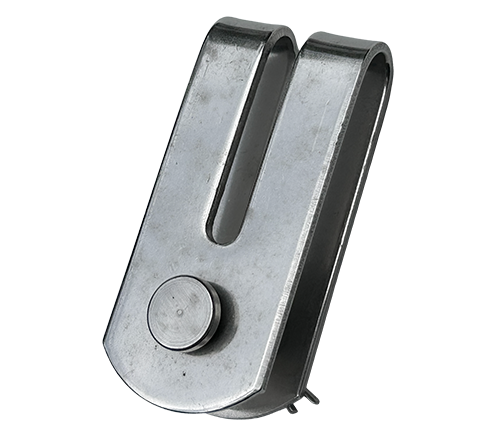

Slotted Masthead Toggle, 1 1/8" wide w/ 3/8" Pin: K-10511:

Slotted SS Toggle for K-11348 Masthead is formed to sit on 3/8" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1 1/8" wide x 1/8" (.141) thick, with 2" between pin centers, and will accommodate eyes up to 7/16" thick. Slot is 1/4" wide x 1 3/4" deep. 36-43-(5)

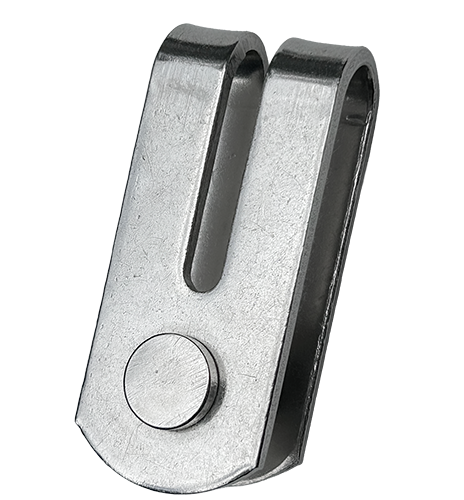

Slotted Masthead Toggle, 1 1/8" wide w/ 7/16" Pin: K-10511-1:

Slotted SS Toggle for K-11348 Masthead is formed to sit on 3/8" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 1/8" wide x 1/8" (.141") thick, with 2" between pin centers, and will accommodate eyes up to 7/16" thick. Slot is 1/4" wide x 1 3/4" deep. 36-43-(5)



Slotted Masthead Toggle, 1 1/8" wide w/ 1/2" Pin: K-10511-2:

Slotted SS Toggle for K-11348 Masthead is formed to sit on 3/8" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 1/8" wide x 1/8" (.141") thick, with 2" between pin centers, and will accommodate eyes up to 7/16" thick. Slot is 1/4" wide x 1 3/4" deep. 36-43-(5)




1 1/4" (32mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 1 1/4" wide w/ 3/8" Pin: K-1837:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1 1/4" wide x 3/32" (.090") thick, with 1 7/8" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 1/4" wide x 1 5/8" deep. 4960, 5072



Slotted Masthead Toggle, 1 1/4" wide w/ 7/16" Pin: K-1837-1:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 1/4" wide x 1/8" (.125") thick, with 1 7/8" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 1/4" wide x 1 5/8" deep. 4960, 5072



Slotted Masthead Toggle, 1 1/4" wide w/ 1/2" Pin: K-1837-2:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 1/4" wide x 1/8" (.125) thick, with 1 7/8" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 1/4" wide x 1 5/8" deep. 4960, 5072 DO



Deep Slotted Masthead Toggle, 1 1/4" wide w/ 3/8" Pin: Hyde 81-60A:

Heavy-Duty, Deep-Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1 1/4" wide x 3/16" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 1/2" wide x 2" deep.



Deep Slotted Masthead Toggle, 1 1/4" wide w/ 7/16" Pin: Hyde 81-70A:

Heavy-Duty, Deep-Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 1/4" wide x 3/16" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 1/2" wide x 2" deep.



Deep Slotted Masthead Toggle, 1 1/4" wide w/ 1/2" Pin: Hyde 81-80A:

Heavy-Duty, Deep-Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 1/4" wide x 3/16" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 1/2" wide x 2" deep.




1 5/16" (33mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 1 5/16" wide w/ 5/16" Pin: PP 81-M0805S:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 5/16" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 7/64" (.105") thick, with 1 3/4" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 1 1/2" deep.



Slotted Masthead Toggle, 1 5/16" wide w/ 3/8" Pin: PP 81-M0806S:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 1/8" (.120") thick, with 1 3/4" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 1 1/2" deep.



Slotted Masthead Toggle, 1 5/16" wide w/ 7/16" Pin: PP 81-M0807S:
Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 1/8" (.120") thick, with 1 3/4" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 1 1/2" deep.



Slotted Masthead Toggle, 1 5/16" wide w/ 1/2" Pin: PP 81-M0808S:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 1/8" (.120") thick, with 1 3/4" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 1 1/2" deep. **




Slotted, Long Masthead Toggle, 1 5/16" wide w/ 3/8" Pin: PP 81-M0806L:

Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 7/64" (.109") thick, with 2 1/2" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 2" deep.



Slotted, Long Masthead Toggle, 1 5/16" wide w/ 7/16" Pin: PP 81-M0807L:
Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 7/64" (.109") thick, with 2 1/2" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 2" deep.



Slotted, Long Masthead Toggle, 1 5/16" wide w/ 1/2" Pin: PP 81-M0808L:
Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 7/64" (.109") thick, with 2 1/2" between pin centers, and will accommodate eyes up to 1/2" thick. Slot is 5/16" wide x 2" deep.




Deep Slotted Masthead Toggle, 1 5/16" wide w/ 5/8" Pin: PP 81-M1010PS:
Deep-Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 5/16" wide x 5/32" (.161") thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 5/16" wide x 2" deep. Special as used on Pearson 365, and others.




1 3/8" (35mm) Wide Slotted Masthead Toggles
Long Slotted Masthead Toggle, 1 3/8" wide w/ 3/8" Pin: RCS 51-147-6S:
Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 3/8" (lower) Clevis Pin. Toggle measures 1 3/8" wide x 1/8" thick, with 3 1/2" between pin centers, and will accommodate eyes up to 9/16" thick. Slot is 1/2" wide x 1 1/8" deep.



Long Slotted Masthead Toggle, 1 3/8" wide w/ 7/16" Pin: RCS 51-147-7S:
Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 3/8" wide x 1/8" thick, with 3 1/2" between pin centers, and will accommodate eyes up to 9/16" thick. Slot is 1/2" wide x 1 1/8" deep.



Long Slotted Masthead Toggle, 1 3/8" wide w/ 1/2" Pin: RCS 51-147-8S:
Slotted SS Masthead Toggle is formed to sit on 1/2" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 3/8" wide x 1/8" thick, with 3 1/2" between pin centers, and will accommodate eyes up to 9/16" thick. Slot is 1/2" wide x 1 1/8" deep.




1 1/2" (38mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 1 1/2" wide w/ 1/2" Pin: K-10469:
Slotted SS Toggle for K-40530 (5280) Masthead is formed to sit on 1/2" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 3/16" thick, with 2 1/2" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 7/16" wide x 2 1/4" deep. *



Slotted Masthead Toggle, 1 1/2" wide w/ 5/8" Pin: K-10469-1:

Slotted SS Toggle for K-40530 (5280) Masthead is formed to sit on 1/2" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 3/16" thick, with 2 1/2" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 7/16" wide x 2 1/4" deep.


Heavy Slotted Masthead Toggle, 1 1/2" wide w/ 1/2" Pin: K-10469H:
Heavy-Duty Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep. FM2C



Slotted Masthead Toggle, 1 1/2" wide w/ 5/8" Pin: K-81-1010S:
Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 3/16" thick, with 2 1/8" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 1/2" wide x 1 3/8" deep.



Heavy Slotted Masthead Toggle, 1 1/2" wide w/ 5/8" Pin: K-10469H-1:
Heavy-Duty Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep. FM2C



Deep Slotted Masthead Toggle, 1 1/2" wide w/ 5/8" Pin: Hyde 81-100A:
Deep-Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 3/16" thick, with 2 1/2" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 5/8" wide x 2 1/4" deep.



Slotted Masthead Toggle, 1 1/2" wide w/ 3/4" Pin: K-10469H-2:
Heavy-Duty Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 3/4" (lower) Clevis Pin. Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep. dl




1 3/4" (45mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 1 3/4" wide w/ 7/16" Pin: K-10761:
Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 7/16" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 1/8" thick, with 3 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 7/16" wide x 2 1/2" deep. DL



Slotted Masthead Toggle, 1 3/4" wide w/ 1/2" Pin: K-10761-1:

Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 1/2" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 1/8" thick, with 3 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 7/16" wide x 2 1/2" deep. 5280, 6092o



Slotted Masthead Toggle, 1 3/4" wide w/ 5/8" Pin: K-10761-2:

Slotted SS Masthead Toggle is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 1/8" thick, with 3 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 7/16" wide x 2 1/2" deep. DO 5280, 6092o




Long Slotted Masthead Toggle, 1 3/4" wide w/ 9/16" 14mm Pin: K-:
Long Slotted SS Masthead Toggle is formed to sit on 7/8" cross-pin going through masthead channel, and includes 14mm (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 6mm (1/4") thick, with 4 1/4" between pin centers, and will accommodate eyes up to 7/8" thick. Slot is 12mm (1/2") wide x 75mm (3") deep. 204128 1614



100???
Long Slotted Masthead Toggle, 1 3/4" wide w/ 5/8" Pin: K-:
Long Slotted SS Masthead Toggle is formed to sit on 7/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 6mm (1/4") thick, with 4 1/4" between pin centers, and will accommodate eyes up to 7/8" thick. Slot is 12mm (1/2") wide x 75mm (3") deep. 204127 1615



5

Long Slotted Masthead Toggle, 1 3/4" wide w/ 3/4" Pin: K-:
Long Slotted SS Masthead Toggle is formed to sit on 30mm (1 3/16") cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 3/4" (45mm) wide x 6mm (1/4") thick, with 4 1/4" between pin centers, and will accommodate eyes up to 30mm (1 3/16") thick. Slot is 12mm (1/2") wide x 75mm (3") deep. 204116 1626



3

1 7/8" (48mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 1 7/8" wide w/ 5/8" Pin: K-40552:

Slotted SS Toggle for K-40551 Masthead is formed to sit on 5/8" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 7/8" (48mm) wide x 3/16" thick, with 2 3/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 7/16" wide x 2 1/2" deep. 6092o, 68106, K-10564A





Heavy-Duty Slotted Masthead Toggle, 1 7/8" wide w/ 5/8" Clevis Pin: K-10790-1HL:
Heavy-duty Slotted SS Masthead Toggle is formed to sit on 3/4" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 1 13/16" wide x 1/4" thick (.235"), with 4" between pin centers, and will accommodate eyes up to 7/8" thick. Slot is >1/2" wide x 3" deep. RGM



Heavy-Duty Slotted Masthead Toggle, 1 7/8" wide w/ 3/4" Clevis Pin: K-10790-2HL:
Heavy-duty Slotted SS Masthead Toggle is formed to sit on 3/4" cross-pin going through masthead channel, and includes 3/4" (lower) Clevis Pin. Toggle measures 1 13/16" wide x 1/4" thick (.235"), with 4" between pin centers, and will accommodate eyes up to 7/8" thick. Slot is >1/2" wide x 3" deep. RGM DO




2 3/8" (60mm) Wide Slotted Masthead Toggles
Slotted Masthead Toggle, 2 3/8" wide w/ 5/8" Pin: K-:
Slotted SS Masthead Toggle is formed to sit on 1" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 2 3/8" (60mm) wide x 1/4" thick, with 3 1/2" (85mm) between pin centers, and will accommodate eyes up to 7/8" thick. Slot is 7/8" wide x 3" deep (22x75mm). DL 204117



NG3

1

Slotted Masthead Toggle, 2 3/8" wide w/ 3/4" Pin: K-:
Slotted SS Masthead Toggle is formed to sit on 1" cross-pin going through masthead channel, and includes 3/4" (lower) Clevis Pin. Toggle measures 2 3/8" (60mm) wide x 1/4" thick, with 3 1/2" (85mm) between pin centers, and will accommodate eyes up to 7/8" thick. Slot is 7/8" wide x 3" deep (22x75mm). 204118



8
Slotted Masthead Toggle, 2 3/8" wide w/ 7/8" Pin: K-:
Slotted SS Masthead Toggle is formed to sit on 1" cross-pin going through masthead channel, and includes 7/8" (lower) Clevis Pin. Toggle measures 2 3/8" (60mm) wide x 1/4" thick, with 3 1/2" (85mm) between pin centers, and will accommodate eyes up to 7/8" thick. Slot is 7/8" wide x 3" deep (22x75mm). 204119



22

Slotted Masthead Toggle, 2 3/8" wide w/ 5/8" Pin: K-:
Heavy-duty Slotted SS Masthead Toggle is formed to sit on 1" cross-pin going through masthead channel, and includes 5/8" (lower) Clevis Pin. Toggle measures 2 3/8" (60mm) wide x 5/16" thick (8mm), with 3 1/2" (85mm) between pin centers, and will accommodate eyes up to 1" thick. Slot is 7/8" wide x 3" deep (22x75mm). DL 1618



2
Slotted Masthead Toggle, 2 3/8" wide w/ 3/4" Pin: K-:
Heavy-duty Slotted SS Masthead Toggle is formed to sit on 1" cross-pin going through masthead channel, and includes 3/4" (lower) Clevis Pin. Toggle measures 2 3/8" (60mm) wide x 5/16" thick (8mm), with 3 1/2" (85mm) between pin centers, and will accommodate eyes up to 1" thick. Slot is 7/8" wide x 3" deep (22x75mm). DL 1619



13
Slotted Masthead Toggle, 2 3/8" wide w/ 7/8" Pin: K-:
Heavy-duty Slotted SS Masthead Toggle is formed to sit on 1" cross-pin going through masthead channel, and includes 7/8" (lower) Clevis Pin. Toggle measures 2 3/8" (60mm) wide x 5/16" thick (8mm), with 3 1/2" (85mm) between pin centers, and will accommodate eyes up to 1" thick. Slot is 7/8" wide x 3" deep (22x75mm). DL 1620



4

2 1/2" (64mm) Wide Slotted Masthead Toggles
Large Slotted Masthead Toggle, 2 1/2" wide w/ 3/4" Clevis Pin: K-11189A:
Slotted SS Toggle for 78120 Masthead is formed to sit on 7/8" cross-pin going through masthead channel, and includes 3/4" (lower) Clevis Pin. Toggle measures 2 1/2" (64mm) wide x 3/16" thick, with 4" between pin centers, and will accommodate eyes up to 7/8" thick. Slot is 9/16" wide x 3 1/2" deep. 78120 c





Narrow Masthead Toggles
1/4" Forged Turnbuckle Toggle: Mer 5770-408:

5/16" Forged Turnbuckle Toggle: Mer 5770-410:

3/8" Forged Turnbuckle Toggle: Mer 5770-412:

7/16" Forged Turnbuckle Toggle: Mer 5770-414:

1/2" Forged Turnbuckle Toggle: Mer 5770-416:

5/8" Forged Turnbuckle Toggle: Mer 5770-420:

3/4" Forged Turnbuckle Toggle: Mer 5770-424:

Although normally used at the lower end of the rigging, these Merriman Forged Bronze Turnbuckle Toggles are often used in fractional Jib Boxes and narrow Masthead applications. Chrome plated Toggles are stronger than the appropriate sized wire rigging. Toggle size is both Pin size and hole size.



Mer 5770C
Masthead Toggle for Trisect Head w/ 3/8" Pin: K-11537-S6:

Heavy SS Eye/Jaw Toggle for Trisect Masthead includes 3/8" lower pin, and is designed to sit on 1/2" upper pin. Toggle is formed from 1/8" stock, and measures 1/2" wide (at top) x 1 1/16" wide (at bottom) x 2 1/8" between pin centers. Will accommodate eyes up to 9/16" thick. I



K-11537

Masthead Toggle for Trisect Head w/ 7/16" Pin: K-11537-S7:

Heavy SS Eye/Jaw Toggle for Trisect Masthead includes 7/16" lower pin, and is designed to sit on 1/2" upper pin. Toggle is formed from 1/8" stock, and measures 1/2" wide (at top) x 1 1/16" wide (at bottom) x 2 1/8" between pin centers. Will accommodate eyes up to 9/16" thick.



K-11537

Masthead Toggle for Trisect Head w/ 1/2" Pin: K-11537:

Heavy SS Eye/Jaw Toggle for Trisect Masthead includes 1/2" lower pin, and is designed to sit on 1/2" upper pin. Toggle is formed from 3/16" stock, and measures 1/2" wide (at top) x 1 1/4" wide (at bottom) x 2 3/4" between pin centers. Will accommodate eyes up to 1/2" thick. 4060, 4066, 4365, 4873



K-11537
