Goiot Hatch Parts


Goiot Hatch Parts
Goiot Hatches and Ports, made in France, are found on a variety of Yachts built around the world.



Goiot Hatches
Goiot manufactures a wide selection of Aluminum Hatches in a variety of configurations to suit any application. Current production includes Tradition, Cristal, Opal, and Integration series, as well as Escape Hatches and Flush-mount configurations.

For complete replacement Hatches
See Goiot Hatches.




Goiot Hatch Parts
Commonly requested replacement parts for a variety of Goiot Hatches are listed below.
The easiest way to determine which Hatches you have, is by identifying the Handles.
For parts not listed please contact us with measurements and details.

Tradition Hatch Parts
Cristal & Integration Hatch Parts
Opal Hatch Parts
Evolution Hatch Parts

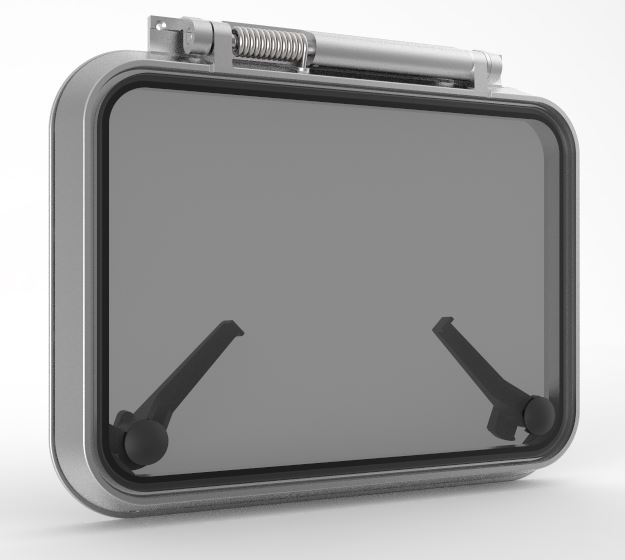

Tradition Hatch Parts
Replacement parts for Goiot Original Hatches, Tradition & Tradition Escape Hatches are listed below. Acrylic Lenses for Goiot Original Hatches are listed separately.
For parts not listed please contact us with measurements and details.


Handle Ass'y, Tradition Hatch - Left Complete: Goi HT-HLA:
Left side Black plastic Handle Assembly includes Inside Handle and Top Cap with O-ring and screw. Outside Handle, listed below, is Optional and replaces Top Cap. Used on Goiot cast Tradition series. 9494A




  Handle, Tradition Hatch - Left: Goi HT-HL:

Left side Black plastic Inside Handle is 5 7/8" (150mm) long, Used on Goiot cast Tradition series. 9494



Handle Ass'y, Tradition Hatch - Right Complete: Goi HT-HRA:
Right side Black plastic Handle Assembly includes Inside Handle and Top Cap with O-ring and screw. Outside Handle, listed below, is Optional and replaces Top Cap. Used on Goiot cast Tradition series. 9495A




  Handle, Tradition - Right: Goi HT-HR:

Right side Black plastic Inside Handle is 5 7/8" (150mm) long, Used on Goiot cast Tradition series. 9495



  Top Cap for Tradition Hatch Handle: Goi HT-TC:

Top Cap for Hatch Handle fits on the outside of Hatch. Black plastic Top Cap has square stud that mates with Handle socket. Unit is 35mm (1 3/8") OD x 44mm (1 3/4" long) with 19mm OD (maximum) stud and includes O-ring. Used on Goiot Tradition series. 9492



    O-ring for Top Cap - 4-pack: Goi HT-TC-OR4:

O-ring for Hatch Handle Top Cap / Outside Handle. Used on Goiot Tradition, Evolution, Cristal, and Integration series Hatches, O-rings are sold in packs of four (4) pieces.




  Outside Handle for Tradition Hatch: Goi HT-HOS:

Optional Outside Handle allows opening Hatch from the outside. Black plastic Handle replaces Top Cap and has square stud that mates with inside Handle. Unit is (maximum) 35mm (1 3/8") wide and includes O-ring. Used on Goiot cast Tradition series. 9490




Handle Ass'y, Tradition Escape Hatch - Left: Goi HT-HLA-A:
Left side Aluminum Handle Assembly for Goiot cast Tradition Escape Hatches includes Inside and Outside Handles with washers, O-ring, screw and SS Key. Outside Handle is 110mm (4 5/16") long, Inside Handle is 122mm (4 7/8") long x 45mm (1 3/4") wide. Aluminum Handles are standard on Escape Hatches, but are also compatible with Standard Tradition Hatches.



Handle Ass'y, Tradition Escape Hatch - Right: Goi HT-HRA-A:
Right side Aluminum Handle Assembly for Goiot cast Tradition Escape Hatches includes Inside and Outside Handles with washers, O-ring, screw and SS Key. Outside Handle is 110mm (4 5/16") long, Inside Handle is 122mm (4 7/8") long x 45mm (1 3/4") wide. Aluminum Handles are standard on Escape Hatches, but are also compatible with Standard Tradition Hatches.

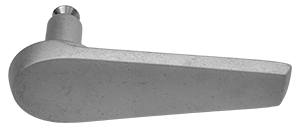

  Aluminum Outside Handle only: Goi HT-HA-OS:

Cast Aluminum Outside Handle only, as used with Aluminum Handle Assemblies on Goiot Tradition and Cristal Escape Hatches.



Locking Bar, Tradition Escape Hatch 45.32E: Goi HTE45-LB:

Locking Bar, Tradition Escape Hatch 50.37E, 50.50E: Goi HTE50-LB:
Solid Aluminum Locking Bar for Tradition Escape Hatches locks Inside Handles, preventing access from Outside. Locking Bar is 25mm OD with slots in each end. Locking Bar is only used in port or at anchor, and MUST NOT be used when sailing.




Handle Ass'y Complete, Tradition 80.80 Hatch: Goi HT-HA-80C:
Complete Handle Assembly for Goiot 80.80 Tradition Hatch includes Aluminum Inside and Outside Handles with SS Shaft and attachment knuckle. Assembly is 223mm (9 1/8") long.




Hatch Handle Seat for Corner, Tradition Series: Goi HT-HSC:

Cast Aluminum Seat for Hatch Handle attaches to Hatch frame corner with (2) 3/16" (5mm) rivets (included). Aluminum Handle Seat is 69mm (2 3/4") long x (maximum) 18mm (3/4") wide. Two (2) each used on all Goiot Tradition series Hatches with 2 Handles.



Hatch Handle Seat, Tradition 34.20: Goi HT-HSF-1:

Black plastic Seat for Hatch Handle attaches to Hatch frame with (2) 3/16" (5mm) rivets (included). Black plastic Handle Seat is 76mm (3") long x (maximum) 18mm (3/4") wide. Used on Goi HT34.20 Tradition Hatch with single Handle.



Friction Ring Set for Spring, Tradition: Goi HT-FR-3S:

Heavy SS Tab Washer and Black plastic washers (Friction Rings) are used to increase Spring tension that keeps Hatch open. Rarely does a Spring need replacing, but Spring tension decreases as these Rings wear. Set includes (2) Friction Rings Goi HT-FR, and (1) Goi HT-TW SS Tapered Tab washer.




  Friction Ring for Spring - 4-pack: Goi HT-FR-4:

Heavy Black plastic washers (Friction Rings) are used to increase Spring tension that keeps Hatch open. Rarely does a Spring need replacing, but Spring tension decreases as these Rings wear. Used on Goiot Tradition and Cristal Hatches, Friction Rings are 27mm OD x 12mm ID and are sold in packs of four (4) pieces.



  SS Tab Washer: Goi HT-TW:

Long Tapered SS Tapered Tab Washer is used against the Hatch Spring. Used on Goiot Tradition Hatches, SS washer is 27mm OD x 12mm ID x 41mm long (at Tab).





Dog Screw - 8mm: Goi PT-DS8:

Dog Screw has 8mm thread with an 8mm cross hole. Aluminum Dog Screw is (maximum) 44mm (1 3/4") long. Used on Goiot original Tradition Hatches. 9130



Dog Screw Pin / Hinge Pin - 8mm: Goi PT-HP8:

Used as Dog Screw Pin and Port Hinge Axle, Black plastic self-locking Hinge Pin is 8mm x 38mm long (5/16" x 1 1/2"). Used on Goiot Tradition Ports and Hatches. This item is currently unavailable, and is being re-tooled. Goiot is now using the Goi PT-HP8-SN, below. 8304



SS Screw Replacement for Dog Screw / Hinge Pin: Goi PT-HP8-SN:
Used as a replacement for the currently unavailable Black plastic Goi PT-HP8, Goiot now uses this SS allen head Screw and Locknut set. 95343




Dog Screw for 2-way Hatch - 8mm: Goi HT-DS8-2:

Dog Screw has 8mm thread with an 8mm x 26mm (1") cross-pin. Aluminum Dog Screw is (maximum) 59mm (1 3/4") long. Used only with Goiot Tradition Two-way opening Hatches. 9131E




Female Knob for 8mm Stud: Goi PT-KF8:

Black plastic Knob Nut is threaded for standard 8mm Dog stud. Used on a variety of Goiot Tradition Ports and Hatches, fluted Knob is 1 3/4" (44mm) OD x 1" high, threaded for a 8mm stud. 9224



Male Dog Screw Knob w/ 8mm Screw: Goi HT-KM8:

Black plastic Dog Screw Knob has integral 8mm threaded Aluminum screw. Used on some Goiot Tradition and Cristal Hatches, fluted Knob is 1 3/4" (44mm) OD x 1" high, 8mm screw is 13mm (1/2") long. 9225



Hinge Pin - 10mm: Goi HT-HP10:

Black plastic self-locking Hinge Pin is 10mm x 36mm long (3/8" x 1 7/16"). Used on a variety of Goiot Tradition Hatches. 9290




Stay Arm Set for 50.50.2 - 2-Way Hatch: Goi HT-SAS-50:

Complete Stay Arm Set for 50.50.2 Two-way opening Tradition Hatch includes (2 ea.) Cast Arm, Piston Rod, HT-KM8 Dog Screw and (4) special 6mm screws w/ 8mm shaft.




  Stay Arm Piston for 50.50.2 - 2-Way Hatch: Goi HT-SAP-50:
Stay Arm Piston w/ Flat, 50.50.2 - 2-Way Hatch: Goi HT-SAP-50F:
  Aluminum Piston Rod only for 50.50.2 Two-way opening Tradition Hatch Stay Arm is 14mm OD x 345mm (13 1/2") long. F version has milled Flat (310mm Long) on 1 side.




  Stay Arm Casting for 2-Way Hatch - Left: Goi HT-SAC-L:
Stay Arm Casting for 2-Way Hatch - Right: Goi HT-SAC-R:
Casting only for Two-way opening Tradition Hatch Stay Arm is used with Telescopic Aluminum Piston Rod, below, to allow Hatch support. Cast Arm is 210mm (8 1/4") long and is threaded for Goi HT-KM8 Dog Knob. Used with Goiot Tradition Two-way opening Hatches.




  Stay Arm Attachment Screw: Goi HT-SA-AS:

Stay Arm Attachment Screw used to attach Stay Arm to Hatch Frame and Lid. Specially machined SS Allen Head Screw is 8mm x 26mm long under head, with a 12mm head diameter.

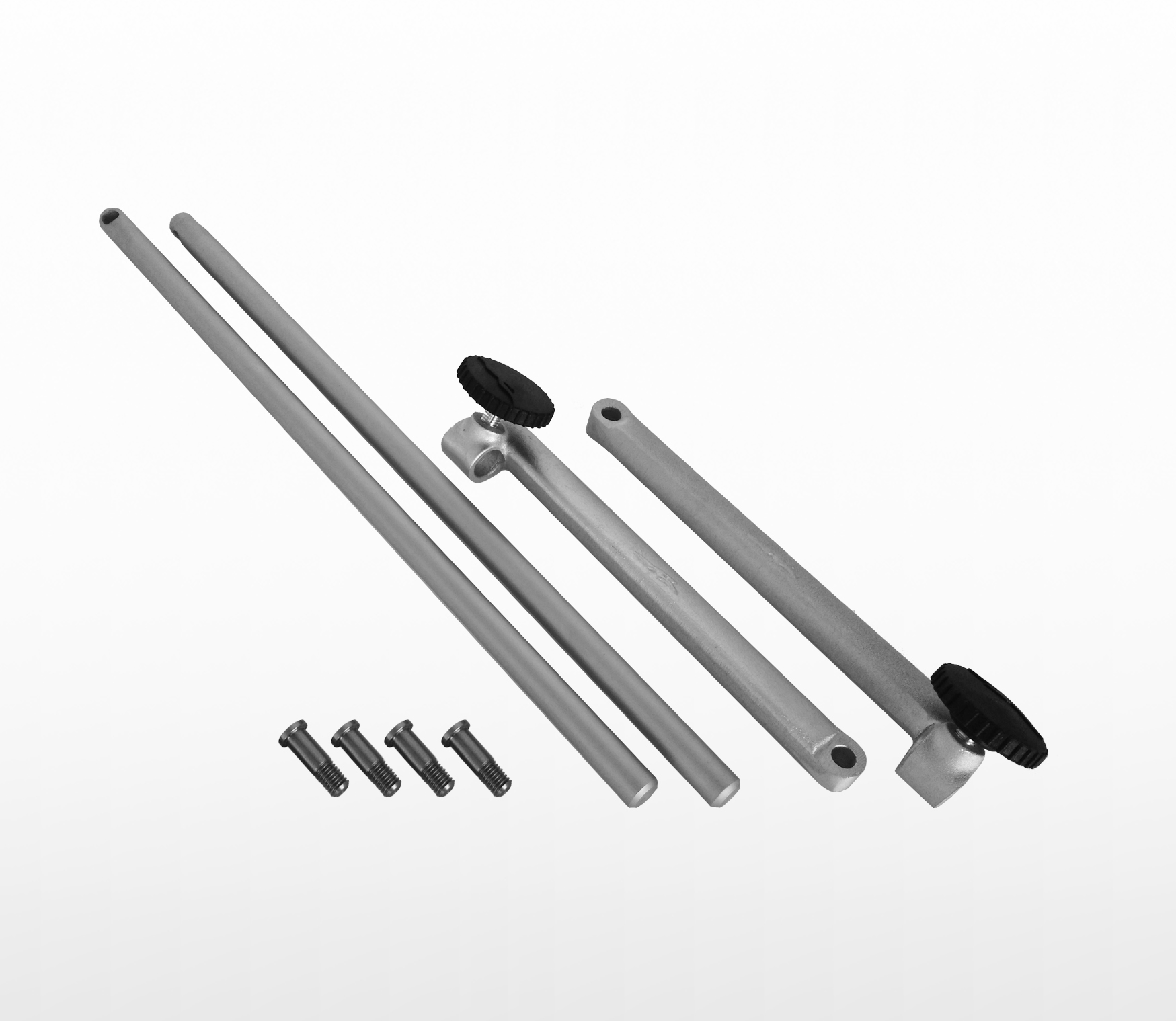

Stay Arm Set for 62.62.2 - 2-Way Hatch: Goi HT-SAS-62:

Complete Stay Arm Set for 62.62.2 Two-way opening Tradition Hatch includes (2 ea.) Cast Arm, Piston Rod, HT-KM8 Dog Screw and (4) special 6mm screws w/ 8mm shaft.



  Stay Arm Piston for 62.62.2 - 2-Way Hatch: Goi HT-SAP-62:
Stay Arm Piston w/ Flat, 62.62.2 - 2-Way Hatch: Goi HT-SAP-62F:
  Aluminum Piston Rod for 62.62.2 Two-way opening Tradition Hatch Stay Arm is 14mm OD x 395mm (15 1/2") long. F version has milled Flat (370mm Long) on 1 side. Also used on 80.80 Tradition Hatch.



  Stay Arm Casting for 2-Way Hatch - Left: Goi HT-SAC-L:
Stay Arm Casting for 2-Way Hatch - Right: Goi HT-SAC-R:
Casting only for Two-way opening Tradition Hatch Stay Arm is used with Telescopic Aluminum Piston Rod, below, to allow Hatch support. Cast Arm is 210mm (8 1/4") long and is threaded for Goi HT-KM8 Dog Knob. Used with Goiot Tradition Two-way opening Hatches and 80.80 Tradition Hatch.



  Stay Arm Attachment Screw: Goi HT-SA-AS:

Stay Arm Attachment Screw used to attach Stay Arm to Hatch Frame and Lid. Specially machined SS Allen Head Screw is 8mm x 26mm long under head, with a 12mm head diameter.



Stay Arm Piston for Old-Style Hatch: Goi HT-SAP-X:
Aluminum Piston Rod for Old-Style 45.32 and 50.37 Tradition Hatch Stay Arms is 10mm OD x 232mm (9 3/16") long.




Hinge Base for 34.20 Hatch, L=180mm: Goi HT-HB34.20:

Hinge Base for 45.32 Hatch, L=345mm: Goi HT-HB45.32:

Hinge Base for 50.37 Hatch, L=372mm: Goi HT-HB50.37:

Hinge Base for 50.50 Hatch, L=372mm: Goi HT-HB50.50:

Hinge Base for 62.62 Hatch, L=512mm: Goi HT-HB62.62:

Hatch Hinge Base bolts to Hatch Frame and connects to Hatch Lid. Extruded Aluminum Hinge Base is drilled for Hinge Axle and has milled cut-out for Hatch Spring. L = maximum length of Hinge Base.



Hinge Base Axle for 45.32 Hatch, L=118mm: Goi HT-HBA45.32:

Hinge Base Axle for 50.37 Hatch, L=127mm: Goi HT-HBA50.37:
Hatch Hinge Base Axle fits inside of Hatch Spring. Specially milled SS Axle is 12mm diameter. L = maximum length of Axle.




Replacement Acrylic Lens, Fly Screen & Gasket for Tradition Hatches
* For Replacement Gasket and Lenses for Original Hatches, See Goiot Original Hatches.

 Hatch #  Lens Size  Notes  Lens (Blue)  Lens (Grey)  Lens (Blue)
w/ Vent Hole
 Fly Screen  Gasket
 34.20  351x207mm    Goi 101200  Goi 120722      Goi HT-GS
 45.32  456x326mm    Goi 101174  Goi 120723  Goi 101454  Goi 93462
 50.37  506x376mm    Goi 101175  Goi 120724    Goi 93464
 50.50  506x506mm    Goi 101176  Goi 120725  Goi 101463  Goi 93468
 62.62  626x626mm    Goi 101177  Goi 120726  Goi 101469  Goi 93473
 62.62.6  525x525mm  Sliding Hatch  Goi 101187X
 72.72.6  727x727mm  Sliding Hatch  Goi 101195X  Goi 101195G
 80.80  835x835mm    Goi 101145  Goi 120731      Goi HT-GL
 50.50.2  523x523mm  2-Way Hatch  Goi 101143  Goi 101143G
 62.62.2  645x645mm  2-Way Hatch  Goi 101144  Goi 101144G



Gasket for Small Goiot Tradition Hatches, per ft.: Goi HT-GS:
Black Neoprene Gasket is used on all Goiot Tradition Cast Hatches (including Tradition Escape and Sliding Hatches), except for the Two-way opening, and the Largest (835mm (32 7/8") square glass size) Cast Hatch. Trapezoidal profile Gasket has 14mm wide Base, is 12mm wide at the top x 10mm high, and is sold by the foot.  T




Gasket for Large Goiot Tradition & Original Hatches, per ft.: Goi HT-GL:
Black Neoprene Gasket is used on the Goiot Two-way opening, and the Largest Tradition Hatch, Goi HT80.80 (835mm (32 7/8") square glass size), as well as Larger Goiot Original Hatches. Round profile Gasket is 10mm (3/8") OD, and is sold by the foot.  R10




Gasket for Small Goiot Original Hatches, per ft.: Goi PT-G8:
Black Neoprene Gasket is used on the Goiot Original Small Hatches (#114 and #115), and all Tradition Ports, Except the Largest Goi PT54.32. Round profile Gasket is 8mm (5/16") OD, and is sold by the foot.  R8




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.  gl 101714





Cristal & Integration Hatch Parts
Replacement parts for Goiot Cristal, Cristal Escape and Integration Hatches are listed below. Parts used only on Goiot Integration Hatches are listed separately, See: Integration Hatch Parts.


Handle Ass'y Large, Cristal & Integration Hatch - Left Complete: Goi HC-HLA:
Left side Gray plastic Handle Assembly includes Inside Handle and Top Cap with washers, O-ring and screw. Outside Handle, listed below, is Optional and replaces Top Cap. Used on Goiot Cristal and Integration series.



  Handle Large, Cristal & Integration Hatch - Left: Goi HC-HL:
  Left side Gray plastic Inside Handle is 5 1/8" (130mm) long, Used on Goiot Cristal and Integration series.




Handle Ass'y Large, Cristal & Integration Hatch - Right Complete: Goi HC-HRA:
Right side Gray plastic Handle Assembly includes Inside Handle and Top Cap with washers, O-ring and screw. Outside Handle, listed below, is Optional and replaces Top Cap. Used on Goiot Cristal and Integration series.



  Handle Large, Cristal & Integration Hatch - Right: Goi HC-HR:
  Right side Gray plastic Inside Handle is 5 1/8" (130mm) long, Used on Goiot Cristal and Integration series.




  Inside Cap for Large Handle, Cristal & Integration: Goi HC-HC:
  Inside Cap for Large Handles. Gray plastic Cap is 42mm (1 5/8") diameter, Used on Goiot Cristal and Integration series.



  Top Cap for Hatch Handle - Cristal, Integration, Evolution: Goi HC-TC:
  Top Cap for Hatch Handle fits on the outside of Hatch. Gray plastic Top Cap has square stud that mates with Handle socket. Unit is 40mm (1 5/8") OD x 44mm (1 3/4" long) and includes O-ring. Used on Goiot Cristal, Integration, and Evolution series.







O-ring for Top Cap - 4-pack: Goi HT-TC-OR4:

O-ring for Hatch Handle Top Cap / Outside Handle. Used on Goiot Tradition, Cristal, Integration, and Evolution series Hatches, O-rings are sold in packs of four (4) pieces.




  Outside Handle for Cristal, Integration, Evolution Hatch: Goi HC-HOS:
  Optional Outside Handle allows opening Hatch from the outside. Gray plastic Handle replaces Top Cap and has square stud that mates with inside Handle. Unit is (maximum) 42mm (1 5/8") wide x 96mm (3 3/4") long and includes O-ring. Used on Goiot Cristal, Integration, and Evolution series.




Small Handle Ass'y for Cristal Hatch: Goi HC-HSA:
Small Gray plastic Handle Assembly is used on all Rectangular Cristal Hatches. Assembly includes Handle (Goi HC-HS), Aluminum Screw Insert and screw.




  Small Handle for Cristal Hatch: Goi HC-HS:

Small Gray plastic Handle used on Rectangular Cristal Hatches. Unit is (maximum) 35mm (1 3/8") wide x 66mm (2 5/8") long with a 12mm ID. Unit is marked P1371.



Petite poign�e int�rieure (par 2)
  Small Hatch Handle - Screw Insert: Goi HC-HSI:

Aluminum Screw Insert is used with Small Cristal Hatch Handle to adapt Handle to 8mm FH screw.





Handle Ass'y, Cristal Escape Hatch Old-style - Left: Goi HT-HLA-A:
Left side Aluminum Handle Assembly for Old-style Escape Hatches includes Inside and Outside Handles with washers, O-ring, screw and SS Key. Outside Handle is 110mm (4 5/16") long, Inside Handle is 122mm (4 7/8") long x 45mm (1 3/4") wide. Old-style Aluminum Handle is used on Cristal Escape Hatches made before 2018. Also used with Tradition Escape Hatches.



Handle Ass'y, Cristal Escape Hatch Old-style - Right: Goi HT-HRA-A:
Right side Aluminum Handle Assembly for Old-style Escape Hatches includes Inside and Outside Handles with washers, O-ring, screw and SS Key. Outside Handle is 110mm (4 5/16") long, Inside Handle is 122mm (4 7/8") long x 45mm (1 3/4") wide. Old-style Aluminum Handle is used on Cristal Escape Hatches made before 2018. Also used with Tradition Escape Hatches.

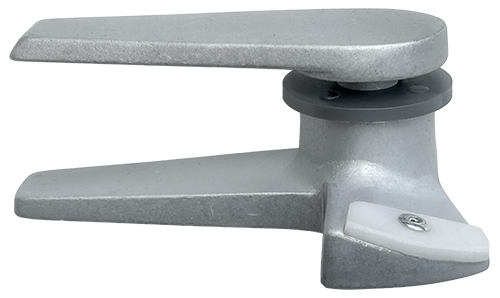

Handle Ass'y, Cristal Escape Hatch New-style - Left: Goi HC-HA-LA:
Left side Aluminum Handle Assembly for New-style Cristal Escape Hatches includes Inside and Outside Handles with washers, O-ring, screw and SS Key. Outside Handle is 110mm (4 5/16") long, Inside Handle is 110mm (4 1/4") long x 65mm (2 1/2") wide. New-style wider Aluminum Handle features a easy glide Delrin pad and is used on Cristal Escape Hatches made after 2017.

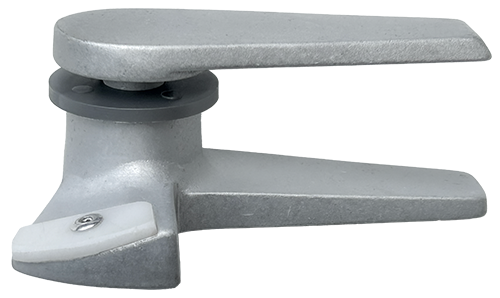

Handle Ass'y, Cristal Escape Hatch New-style - Right: Goi HC-HA-RA:
Right side Aluminum Handle Assembly for New-style Cristal Escape Hatches includes Inside and Outside Handles with washers, O-ring, screw and SS Key. Outside Handle is 110mm (4 5/16") long, Inside Handle is 110mm (4 1/4") long x 65mm (2 1/2") wide. New-style wider Aluminum Handle features a easy glide Delrin pad and is used on Cristal Escape Hatches made after 2017.



  Aluminum Outside Handle only: Goi HT-HA-OS:

Cast Aluminum Outside Handle only, as used with Aluminum Handle Assemblies on Goiot Tradition and Cristal Escape Hatches.



Locking Bar, Cristal Escape Hatch 44CE: Goi HCE44-LB:
Locking Bar, Cristal Escape Hatch 49.42E: Goi HCE49-LB:
Solid Aluminum Locking Bar for Cristal Escape Hatches locks Inside Handles, preventing access from Outside. Locking Bar is 25mm OD with slots in each end. Locking Bar is only used in port or at anchor, and MUST NOT be used when sailing.




Hinge Pin Ass'y (Friction Set) - Small Pair: Goi HC-AS-2:

Self-locking Hinge Pin Assembly (Friction Set) allows hinge friction to be increased by tightening the screw. Unit is 50mm long, and includes Special Allen Head Nut, polymer spacer, and 5mm x 35mm screw. Set (2 pcs.) is used on Goiot Cristal and Evolution Ports, and Smaller Cristal and Evolution Hatches. Fits Goiot Cristal Hatches # 24.19, 24.24, 35.21, 36.14, 36.19, 36.24, 49.19, & 49.24 and Evolution Hatches # 23.23 & 32.18.







Hinge Pin Ass'y (Friction Set) - Large Pair: Goi HC-AL-2:

Self-locking Hinge Pin Assembly (Friction Set) allows hinge friction to be increased by tightening the screw. Polymer spacer is 43mm long x 16mm diameter, unit includes 6mm x 50mm screw, washers and Locknut. Set (2 pcs.) is used on Larger Goiot Cristal and Evolution Hatches. Fits Cristal Hatches # 42.42, 44.31, 44.44, 44C, & 49.36, and Evolution Hatches # 23.23 & 32.18.
Watch Installing Goiot Hinge Pins, Thank you Sailing Filizi!




Friction Ring Set for Spring - XLarge Hatch: Goi HC-FRSet:

Heavy SS Tab Washers and Black plastic washers (Friction Rings) are used to increase Spring tension that keeps Hatch open. Rarely does a Spring need replacing, but Spring tension decreases as these Rings wear. Friction Rings are 27mm OD x 12mm ID and are sold in packs of four (4) each of the SS and plastic washers. Used on Cristal Hatches # 49.49, 61.61 & 79.79.




  Friction Ring Set for Spring - 4-pack: Goi HT-FR-4:

Heavy Black plastic washers (Friction Rings) are used to increase Spring tension that keeps Hatch open. Rarely does a Spring need replacing, but Spring tension decreases as these Rings wear. Used on Goiot Tradition and Cristal Hatches, Friction Rings are 27mm OD x 12mm ID and are sold in packs of four (4) pieces.



  SS Tab Washer: Goi HC-TW:

SS Tab Washer is used against the Hatch Spring. Used on Goiot Cristal Hatches, SS washer is 27mm OD x 12mm ID x 35mm long (at Tab).




Hinge Spring for Cristal 49.49 Hatch: Goi HC-SPR-4949:

Hinge Spring for Cristal 61.61 Hatch: Goi HC-SPR-6161:

Hinge Spring for Cristal 79.79 Hatch: Goi HC-SPR-7979:

SS Hinge Spring only, used on Larger Cristal Hatches.



Hinge Base for Cristal Hatch, L=120mm: Goi HC-HB120:

Hatch Hinge Base for Older Small Cristal Hatches. Extruded Aluminum Hinge Base bolts to Hatch Frame with (4) 5mm FH Screws on 35mm centers and has 10mm hole for Hinge Axle with milled center Slot for Hinge Axle adjustment. L = maximum length of Hinge Base.




Hinge Base for 61.61 Hatch, L=512mm: Goi HC-HB61.61:

Hatch Hinge Base bolts to Hatch Frame and connects to Hatch Lid. Extruded Aluminum Hinge Base is drilled for Hinge Axle and has milled cut-out for Hatch Spring. L = maximum length of Hinge Base.




Stay Arm Piston w/ Flat for Cristal 79.79 Hatch: Goi HC-SAP:
Aluminum Piston Rod only for 79.79 Cristal Hatch Stay Arm is 14mm OD x 145mm (5 3/4") long. P1528





Replacement Acrylic Lens, Fly Screen & Gasket for Cristal Hatches

 Hatch #  Lens Size  Lens (Blue)  Lens (Grey)  Lens (Blue)
w/ Vent Hole
 Fly Screen  Gasket
 24.19 - T01  233x183mm  Goi 100927  Goi 101266    Goi 101508X  Goi HC-GS
 24.24 - T10  233x233mm  Goi 100924  Goi 101261    Goi 101514
 35.21 - T20  319x174mm  Goi 101127  Goi 120494    Goi 101558
 36.14  357x133mm  Goi 100928X  Goi 100928G
 36.19 - T23  357x183mm  Goi 100926  Goi 101264    Goi 101567
 36.24 - T24  357x233mm  Goi 100923  Goi 101358    Goi 101575
 49.19  487x183mm  Goi 100925  Goi 106617    Goi 101638

 42.42 - T40  390x390mm  Goi 101082  Goi 101358    Goi 101593  Goi HC-GL



 44.31 - T30  428x298mm  Goi 100921  Goi 101254  Goi 101252
 43.43 - T44    Goi 106328  Goi 116961
 44.44 - T46  428x428mm  Goi 100981  Goi 101299    Goi 101606
 49.24  487x233mm  Goi 100922X
 49.36 - T50  478x348mm  Goi 100920  Goi 101249    Goi 101651X
 49.49 - T60  470x470mm  Goi 100919  Goi 101242  Goi 101240  Goi 101659
 61.49  603x472mm  Goi 100955X
 61.61 - T70  590x590mm  Goi 100918  Goi 101237  Goi 101235  Goi 101674
 75.61  718x593mm  Goi 100954X
 79.79 - T80  762x762mm  Goi 100969  Goi 101287
 44C   - T19  440mm  Goi 100982  Goi 105943    Goi 101615
 49C  482mm  Goi 104924X
 44CE  440mm    Goi HCE44C-LG*
 49.42E  480x390mm    Goi HCE4942-LG*



* Cristal Escape Hatches have been redesigned to be stronger. A new Replacement Lid (-LG with integral Grey Lens) is available to bring existing units up to the new standard. Replacement Lenses only are no longer available.




Gasket for Small Goiot Cristal Hatches, per ft.: Goi HC-GS:

Black Neoprene Gasket is used on smaller Goiot Cristal Hatches (up to 357mm x 233mm (14" x 9 1/8") glass size). Round-top Gasket with flat bottom is 10mm wide x 10mm high, and is sold by the foot.  RT10




Gasket for Large Goiot Cristal Hatches, per ft.: Goi HC-GL:

Black Neoprene Gasket is only used on larger Goiot Cristal Hatches (390mm (15 3/8") square glass size, and larger) including Cristal Escape Hatches. Round-top Gasket with flat bottom is 12mm wide (with Base Lip) x 13mm high, and is sold by the foot.  RT12




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.  gl 101714





Integration Hatch Parts
Parts used only on Goiot Integration Hatches are listed below. Other Integration Hatch parts are listed with Cristal & Integration Hatch Parts, above.


Small Handle Ass'y, Integration Hatch, Left: Goi HI-HLA:

Small Handle Ass'y, Integration Hatch, Right: Goi HI-HRA:

Small Gray plastic Handle Assembly used on Integration Hatches. Assembly includes Top Cap (20mm OD) w/ O-Ring and screw. Handles are (maximum) 31mm (1 1/4") wide x 53mm (2 1/8") long, and are marked P3103 (L) or P3102 (R).







Stay Arm for Integration 46.33 Hatch: Goi HI-SA:

Stay Arm Assembly with Telescopic Aluminum Rod allows Hatch support for ventilation. Used only with Integration 46.33 Hatch, 1-piece Assembly includes plastic backing plate w/ (2) screws.





Replacement Acrylic Lens, Fly Screen & Gasket for Integration Hatches


 Hatch #  Lens Size  Lens (Blue)  Lens (Blue)
  Frosted
 Lens (Grey)  Fly Screen  Gasket
 20.10  190x105mm  Goi 101083    Goi 120437  Goi 101496  Goi HI-GS
 26.13  250x135mm  Goi 101086    Goi 105911  Goi 101525

 25.25  268x248mm  Goi 101060    Goi 120438    Goi PT-G8
 33.14X  335x164mm  Goi 101061    Goi 120439  Goi 101544
 33.19X  335x210mm  Goi 101065X
 41.17X  409x185mm  Goi 101062    Goi 120440  Goi 101588
 46.33X  445x335mm  Goi 101063    Goi 115738
 27C  266mm Round  Goi 101064  Goi 101348X  Goi 101349  Goi 101535
 33EX  335x177mm  Goi 101059    Goi 120430



Gasket for Small Goiot Integration Hatches, per ft.: Goi HI-GS:

Black Neoprene Gasket is used on smaller Goiot Integration Hatches (up to 250mm x 135mm (9 7/8" x 5 5/16") glass size). Round profile Gasket is 6mm (1/4") OD, and is sold by the foot.  R6




Gasket for Large Goiot Integration Hatches, per ft.: Goi PT-G8:

Black Neoprene Gasket is used on larger Goiot Integration Hatches (268mm x 248mm (10 1/2" x 9 3/4") glass size, and larger). Round profile Gasket is 8mm (5/16") OD, and is sold by the foot.  HI-GL R8




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.  gl 101714





Opal Hatch Parts
Replacement parts for Goiot Opal & Opal Flush Hatches are listed below.
For parts not listed please contact us with measurements and details.


Small Handle for Opal Hatch - T20: Goi HO-HS:

Small Gray plastic Handle for Opal T00, T10, & T20 Hatches. Small Inside Handle is 115mm long x (maximum) 55mm wide. Includes screw.



Inside Handle, Opal Hatch - Left: Goi HO-HL:

Left side Inside Handle is used on Goiot Opal T30 and larger Hatches. Gray plastic Inside Handle is 5 3/8" (135mm) long and includes Locking Button Assembly and screw.



Inside Handle, Opal Hatch - Right: Goi HO-HR:

Right side Inside Handle is used on Goiot Opal T30 and larger Hatches. Gray plastic Inside Handle is 5 3/8" (135mm) long and includes Locking Button Assembly and screw.



Handle Base for Opal Hatch: Goi HO-HB:

Handle Base is used with All Opal Hatch Inside Handles that do Not require an attachment for a Stay Arm. Gray plastic unit is 54mm OD x (maximum) 35mm high.



Handle Base w/ Stay Arm Bracket, Opal Hatch: Goi HO-HBSA:

Handle Base is used with All Opal Hatch Inside Handles that require an attachment for a Stay Arm. Gray plastic unit is 54mm OD x 75mm long x (maximum) 35mm high and includes 4mm x 22 Stay Arm attachment screw.



Opal Hatch Handle Latch: Goi HO-Latch:

Gray plastic Handle Latch is 50mm (2") long and attaches to Opal Hatch Frame with (2) 4mmm rivets on 26mm centers.




Outside Handle, Opal Hatch - Left: Goi HO-HOSL:

Left Outside Handle is used on Opal Hatches T30 and larger. Gray plastic Left Outside Handle mates with Left Inside Handle, is (maximum) 3 7/8" (98mm) long and includes O-Ring.



Outside Handle, Opal Hatch - Right: Goi HO-HOSR:

Right Outside Handle is used on Opal Hatches T30 and larger. Gray plastic Right Outside Handle mates with Right Inside Handle, is (maximum) 3 7/8" (98mm) long and includes O-Ring.



Outside Cap for Opal Hatch: Goi HO-OC:

Outside Cap for Opal Hatch connects to All Inside Handles, and can be used to replace Outside Handles. Gray plastic Outside Cap is 60mm (2 3/8") OD and includes rubber O-Ring.



Outside Cap w/ Winch Handle Hole Opal Hatch: Goi HO-OCW:

Outside Cap for Opal Hatch has Winch Handle Hole to allow opening from outside. Cap connects to All Inside Handles, and can be used to replace Outside Handles. Gray plastic Outside Cap is 60mm (2 3/8") OD and includes rubber O-Ring.




Stay Arm - T00 Opal Hatch a=155mm: Goi HO-SA-T00:

Stay Arm - T03 Opal Hatch a=122mm: Goi HO-SA-T03:

Stay Arm - T10 Opal Hatch a=199mm: Goi HO-SA-T10:

Stay Arm - T20 Opal Hatch a=145mm: Goi HO-SA-T20:

Stay Arm - T30 Opal Hatch a=193mm: Goi HO-SA-T30:

Stay Arm - T40 Opal Hatch a=239mm: Goi HO-SA-T40:

Stay Arm - T44 Opal Hatch a=288mm: Goi HO-SA-T44:

Stay Arm - T50 Opal Hatch a=250mm: Goi HO-SA-T50:

Stay Arm - T54 Opal Hatch a=260mm: Goi HO-SA-T54:

Stay Arm - T60 Opal Hatch a=357mm: Goi HO-SA-T60:

Stay Arm - T65, T70 Hatch a=463mm: Goi HO-SA-T70:

Gray plastic Stay Assembly with Telescopic Aluminum Rod allows manually-adjustable Hatch support for ventilation. Lower end is attached to Hatch with quick-release Fastpin (order separately), allowing Hatch to be opened to 180°. T40 & larger Opal series Hatches use 2 Stay arms. The "a" dimension is the Length of the Aluminum Rod.



Fastpin for Opal Manual Stay Arm: Goi HO-SAF:

Fastpin for manually-adjustable Opal Hatch Stay Arm allows for easy detachment of Stay Arm from Hatch frame. Push-button Fastpin is 8mm dia. x 3/4" grip length and is 2" (50mm) long. Features Gray plastic knob. Used on Goiot Opal series Hatches.




Corner Base for Fastpin, Opal Stay Arm: Goi HO-SAB-C:

Gray plastic Fastpin Base for Opal T00 - T20 Hatches attaches directly to Frame corner and has 8mm hole to accept Fastpin for manually-adjustable Opal Hatch Stay Arm. Unit is (maximum) 67mm long and attaches to Hatch Frame with (2) 4mm rivets.



Corner Base for 6mm Screw, Opal Stay Arm: Goi HO-SAB-CT:
Gray plastic Base for Opal T00 - T20 Hatches that use a 6mm screw to attach the Stay Arm, incorporates 6mm SS threaded insert for Stay Arm attachment screw. Unit is (maximum) 67mm long and attaches to Hatch Frame corner with (2) 4mm rivets. Used on newer Hatches and those with Gas Piston Stay Arms.




Side Base for Fastpin, Opal Stay Arm: Goi HO-SAB-S:

Gray plastic Fastpin Base for Opal T30 and larger Hatches attaches directly to Frame side and has 8mm hole to accept Fastpin for manually-adjustable Opal Hatch Stay Arm. Unit is 48mm long and attaches to Hatch Frame with (2) 4mm rivets.



Side Base for 6mm Screw, Opal Stay Arm: Goi HO-SAB-ST:
Gray plastic Base for Opal T30 and larger Hatches that use a 6mm screw to attach the Stay Arm, incorporates 6mm SS threaded insert for Stay Arm attachment screw. Unit is 48mm long and attaches to Hatch Frame side with (2) 4mm rivets. Used on newer Hatches and those with Gas Piston Stay Arms.




SS Gas Piston Stay Arm for Opal Hatch: Goi HO-SAG-T__:
Pneumatic Gas Piston Stay Arms are available for all for Opal Hatches. Stainless Steel Automatic unit requires no manual adjustment. Please specify Hatch size or maximum uncompressed length.





Stay Arm Hinge Ass'y for Small Opal Hatch: Goi HO-SAHA:
Stay Arm Hinge Assembly for Opal T00, T03, T10, & T20 Hatches connects Stay Arm to the Lens. Gray plastic Hinge Assembly is 28mm diameter and includes Hinge Base, screw, O-ring and Stay Arm Cap Goi HO-SAC.




  Stay Arm Cap for Opal Hatch - T20: Goi HO-SAC:

Stay Arm Hinge Cap for Opal T00, T03, T10, & T20 Hatches connects to Stay Arm hinge. Gray plastic Stay Arm Cap is 28mm OD and has imbedded brass insert threaded for a 5mm screw.




Opal Hatch Hinge Ass'y: Goi HO-Hinge:

Aluminum Hinge Assembly for Goiot Opal Hatches. Assembly includes Hinge, and (2 ea.) bushings and spring clips. Unit is (maximum) 4 1/2" (115mm) long and attaches to Hatch frame with (2) 5mm FH screws. One to three Hinges are used per Hatch.





Replacement Acrylic Lens, Fly Screen & Gasket for standard Opal Hatches

 Hatch #  Cutout Size  Lens Size  Lens (Blue)  Lens (Grey)  Shade /
Fly Screen
 Gasket
 T00  211x211mm  193x193mm  Goi 106897  Goi 120712    Goi HO-G
 T03  231x176mm  213x158mm  Goi 120713  Goi 122413
 T10  260x260mm  242x242mm  Goi 106898  Goi 122251  Goi 115175
 T20  347x202mm  389x184mm  Goi 106899  Goi 122260  Goi 115176
 T30  457x327mm  440x310mm  Goi 106900  Goi 121931  Goi 115177
 T40  421x421mm  403x403mm  Goi 106901  Goi 120510  Goi 115178
 T44  442x442mm  425x425mm  Goi 106902  Goi 121933  Goi 115179
 T50  507x377mm  489x359mm  Goi 120511  Goi 120512  Goi 115180
 T51 - D  518x378mm        Goi 115450
 T54  507x392mm  489x373mm  Goi 106903  Goi 121941  Goi 115181
 T60  507x507mm  491x491mm  Goi 106904  Goi 121942  Goi 115182
 T64 - D  530x430mm        Goi 115451
 T65 - Trap.  603x485mm  587x470mm  Goi 106905X    Goi 115183
 T70  627x627mm  609x609mm  Goi 106906  Goi 121957  Goi 115183
 T80  797x797mm  777x777mm  Goi 123676  Goi 123675

 T12C  276mm
 T18C  420mm  402mm  Goi 120513  Goi 120716  Goi 151178
 T19C  474mm
 T22C  518mm  503mm  Goi 120785  Goi 120719  Goi 115449



Gasket for Goiot Opal Hatches, per ft.: Goi HO-G:

Black Neoprene Gasket is used on all Goiot Opal Hatches. Rounded triangular Gasket is (maximum) 13.6mm wide x 12mm high, and is sold by the foot.  RT13




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.  gl 101714





Replacement Acrylic Lens for Opal Flush Hatches

 Hatch #  Cutout Size  Lens Size  Lens (Grey)  Lens (Grey)
 Premium*
 T10F / P  260x260mm  330x330mm  Goi 116447  Goi 116622
 T20F / P  347x202mm  417x272mm  Goi 116519  Goi 117521
 T30F / P  457x327mm  527x397mm  Goi 116998  Goi 123482
 T44F / P  442x442mm  512x512mm  Goi 116448  Goi 116623
 T54F / P  507x392mm  577x462mm  Goi 116833  Goi 117848
 T60F / P  507x507mm  577x577mm  Goi 116449  Goi 116624
 T70F / P  627x627mm  697x697mm  Goi 116482  Goi 116625

 T18CF  420mm  490mm  Goi 116673X  ------------

*Premium Flush (/P) Hatches are completely flush. *Premium Flush Lenses have recessed cut-outs for special Flush SS Hinges and (SS) Winch Handle Caps. Stay Arms and other components are as standard Opal Hatches.


Gasket for Goiot Opal Flush Hatches, per ft.: Goi HOF-G:

Black Neoprene Gasket is used on all Goiot Opal Flush Hatches. Rectangular Gasket with flat bottom is adhesive-backed, is 12mm wide x 8mm high, and is sold by the foot. No additional Glue is required. RF128A





Evolution Hatch Parts
Replacement parts for Goiot Evolution Hatches (produced from 1993 to 2001) are listed below.
For parts not listed please contact us with measurements and details.


Handle Ass'y, Evolution Hatch - Left Complete: Goi HE-HLA:

Left side Gray plastic Handle Assembly includes Inside Handle and Top Cap with washers, O-ring and screw. Outside Handle, listed below, is Optional and replaces Top Cap. Used on Goiot Evolution series. The identical item but with Black Interior components is: Goi HE-HLAB:



  Handle, Evolution Hatch - Left: Goi HE-HL:

Left side Gray plastic Inside Handle is 5 7/8" (150mm) long, Used on Goiot Evolution series. 9494



Handle Ass'y, Evolution Hatch - Right Complete: Goi HE-HRA:
Right side Gray plastic Handle Assembly includes Inside Handle and Top Cap with washers, O-ring and screw. Outside Handle, listed below, is Optional and replaces Top Cap. Used on Goiot Evolution series. This item is no longer available with Gray Handle, the identical item but with Black Interior components is: Goi HE-HRAB:



  Handle, Evolution - Right: Goi HE-HR:
Right side Gray plastic Inside Handle is 5 7/8" (150mm) long, Used on Goiot Evolution series. This item is now only available in Black: Goi HT-HR:



  Top Cap for Hatch Handle - Evolution, Cristal, Integration: Goi HC-TC:
  Top Cap for Hatch Handle fits on the outside of Hatch. Gray plastic Top Cap has square stud that mates with Handle socket. Unit is 40mm (1 5/8") OD x 44mm (1 3/4" long) and includes O-ring. Used on Goiot Cristal, Integration and Evolution series.



  O-ring for Top Cap - 4-pack: Goi HT-TC-OR4:

O-ring for Hatch Handle Top Cap / Outside Handle. Used on Goiot Tradition, Cristal, Integration and Evolution series Hatches, O-rings are sold in packs of four (4) pieces.




  Outside Handle for Hatch - Evolution, Cristal, Integration: Goi HC-HOS:
  Optional Outside Handle allows opening Hatch from the outside. Gray plastic Handle replaces Top Cap and has square stud that mates with inside Handle. Unit is (maximum) 42mm (1 5/8") wide x 96mm (3 3/4") long and includes O-ring. Used on Goiot Cristal, Integration and Evolution series.



Stay Ass'y, Evolution Hatch: Goi HE-SA:
Gray plastic Stay Assembly allows Hatch support for ventilation. Includes 100mm (4") Stay Arm, Bracket and screw. Used on Goiot Evolution series. This item is no longer available and is shown here for identification only.







Hinge Pin Ass'y (Friction Set) - Small Pair: Goi HC-AS-2:

Self-locking Hinge Pin Assembly (Friction Set) allows hinge friction to be increased by tightening the screw. Unit is 50mm long, and includes Special Allen Head Nut, polymer spacer, and 5mm x 35mm screw. Set (2 pcs.) is used on Smaller Goiot Cristal and Evolution Hatches, as well as Cristal Ports. Fits Evolution Hatches # 23.23 & 32.18.





Hinge Pin Ass'y (Friction Set) - Large Pair: Goi HC-AL-2:

Self-locking Hinge Pin Assembly (Friction Set) allows hinge friction to be increased by tightening the screw. Polymer spacer is 43mm long x 16mm diameter, unit includes 6mm x 50mm screw, washers and Locknut. Set (2 pcs.) is used on Larger Goiot Cristal and Evolution Hatches. Fits Evolution Hatches # 40.40 & 43.30.
Watch Installing Goiot Hinge Pins, Thank you Sailing Filizi!





Replacement Acrylic Lens & Gasket for Evolution Hatches

 Hatch #  Cutout Size  Lens Size  Lens (Blue)  Gasket
 23.23  260x260mm  254x254mm  Goi 116528X  Goi PC-G
 32.18  347x202mm  341x197mm  Goi 101003X

 43.30  457x327mm  442x312mm  Goi 101004G  Goi HC-GL
 40.40  421x421mm  406x406mm  Goi 101005X
 48.35  508x371mm  493x363mm  Goi 101006G
 48.48  508x508mm  493x493mm  Goi 101007X



Gasket for Small Goiot Evolution Hatches, per ft.: Goi PC-G:

Black Neoprene Gasket is used on smaller Goiot Evolution Hatches (up to 341mm x 197mm (13 7/16" x 7 3/4") glass size). Round-top Gasket with flat bottom is 8mm wide x 7mm high, and is sold by the foot.  HE-GS RT8




Gasket for Large Goiot Evolution Hatches, per ft.: Goi HC-GL:

Black Neoprene Gasket is used on larger Goiot Evolution Hatches (406mm (16") square glass size, and larger). Round-top Gasket with flat bottom is 12mm wide (with Base Lip) x 13mm high, and is sold by the foot.  HE-GL RT12




Gasket Glue for Goiot Hatches & Ports: Goi PT-GGlue:

Special Gasket Glue is used for Gasket attachment on all Goiot Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.  gl 101714
